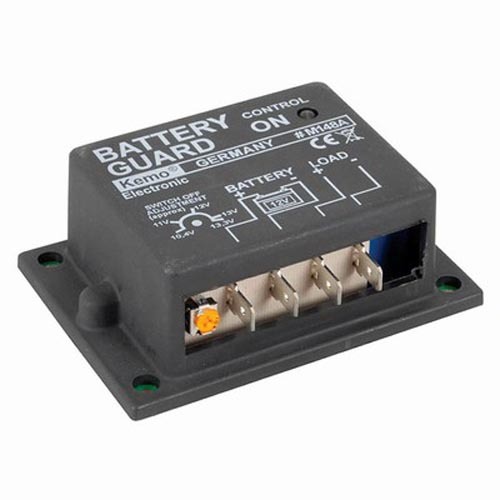

This 12V Low Voltage Disconnect (LVD) module is a reliable solution for protecting your batteries from excessive discharge, prolonging their lifespan. Ideal for solar, automotive, and backup power applications, this device automatically disconnects the load when the battery voltage drops below a preset threshold, preventing deep discharge damage.
The module automatically reconnects the load once the battery voltage recovers, ensuring uninterrupted operation. The cutoff and reconnect voltage thresholds are user-adjustable, allowing customization to suit your specific requirements.
Compact and lightweight, the LVD is simple to install and suitable for 12V battery systems. It provides an efficient and effective way to safeguard your batteries and maintain optimal performance in demanding applications.
Features:
Automatic load disconnection to prevent battery over-discharge.
User-adjustable cutoff and reconnect voltage settings.
Compact and easy-to-install design.
Compatible with 12V battery systems.
Specifications:
Operating Voltage: 12v DC
Max Switching Current: 20a
Cut-Off Voltage: 10.4v - 13.3v DC
Resetting Voltage: Approx. 0.8v (+/- 0.3v) above cut-off voltage
Current consumption: < 0.7mA when OFF, < 1.6mA when ON
Dimensions: 87(L) x 60(W) x 32(H)mm
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(MPPBDISC)
| SKU | MPPBDISC |
| Model # | M148A |
| Barcode # | 4024028031484 |
