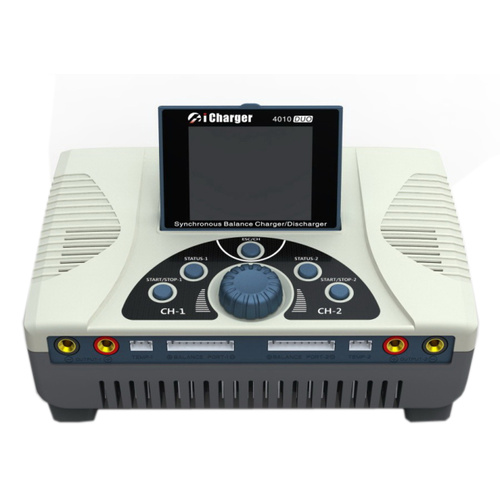

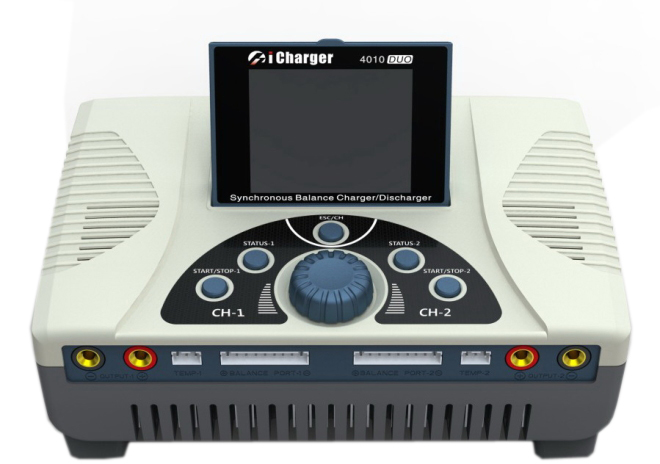

The new heavyweight contender in the lipo charger scene, the iCharger's revolutionary two channel 4010 Duo, is capable of outputting an incredible 40amps per channel. Two super chargers in one compact unit! Or combine both channels in parallel to achieve 70amps.
iCharger 4010 Duo is the ultimate charging solution for the serious user who demands much more from their batteries and battery chargers.
Combine features and unparalleled power, with the proven efficiency and reliability synonymous with the iCharger brand, for a battery charging solution second to none!
Features at a Glance:
Dual Channel Charger - Capable of providing 40amps per channel or combine in parallel for 70 amps of power.
Up to 2000w of power!

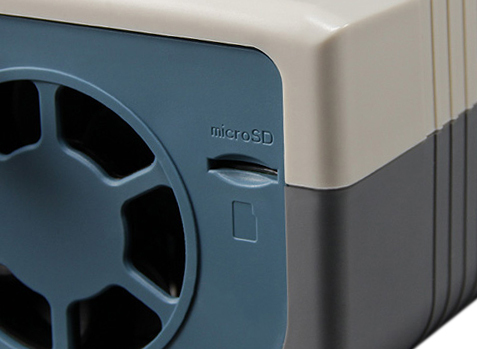

Built in mini SD card slot for storing charge and discharge data for later analysis.

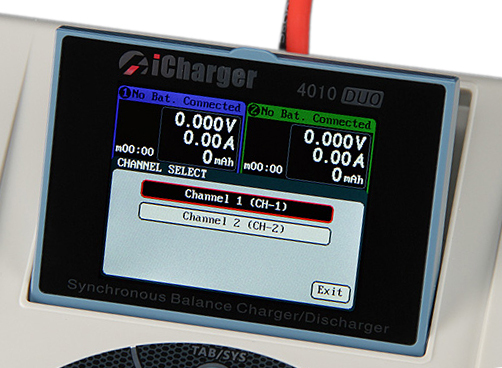

Large LCD screen with easy to use menu structure.
Servo and PMW test modes.
Multiple charge modes - Including fast charge, balance charge, storage charge, discharge and much more.
64 Memory function for storing multiple charging and battery pack configurations.
USB PC compatible and firmware upgradable.
Unique battery monitoring function that allows for monitoring of battery voltage, temperature (plus many other parameters) while the battery is under load.
Wide input operating voltage - Allowing the charger to be powered from literally any power source.
DC powered for maximum portability and convenience.
All iChargers are DC powered chargers. For best options on powering the iCharger, please check our Bench Top Power Supplies.
Specifications:
Input Voltage Range: 9 - 50v DC
Input Current Limit: 65a
Maximum Charge Power Capacity: 1400w per channel at > 23.5v (up to 2000w in synchronous mode)
Charge Current Range: 0.05 - 40.0A per channel. Or up to 70a in synchronous mode (Parallel)
Discharge Power Capacity: 130W per channel. Or up to 200w in synchronous mode (Parallel)
Maximum Regenerative Discharge: 1400W per channel. Or up to 2000w in synchronous mode
Maximum External Discharge Power Capacity: 1600W at 40v / 40a. Or up to 3200w in synchronous mode (Parallel)
Current Drain for Balancing: 1.2a per channel. Or up to 2.4a in synchronous mode (Parallel)
Balance Accuracy: 10mV
LiPo / LiIo / LiFe: 1-10 Series per channel
Ni-CD / Ni-MH Battery Cell Count: 1-25 series per channel
Lead Acid Battery Cell Count: 1=18 series (2-36V) per channel
PC Connectivity: USB port + Mini SD Slot
Weight: 1470g
Dimensions: 210mm (L) x 140mm (W) x 80mm (H)
Package Includes:
1 x iCharger 4010 Duo
1 x USB Cable (Specific to iChargers)
2 x 4mm Banana Plug to Bare Wire Charge Cable
1 x Bare Wire to Female EC5 Power Input Cable
2 x Balance Conversion Board
2 x 10s (11 Pin) JST-XS Cable for Balance Boards
1 x Mini CD ROM
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(4010DUO)
| SKU | 4010DUO |
| Model # | 4010 Duo |
| Barcode # | 2000000003061 |
| Brand |
All our iCharger products carry a 12 Month Manufacturer Warranty. The warranty is void if damage is due to:
- Excessive heat from incorrect use or higher input voltage than designed for and clearly specified.
- Using the product incorrectly with incorrect battery products or power supplies.
- iCharger aluminium case opened by non iCharger recommended technician.
