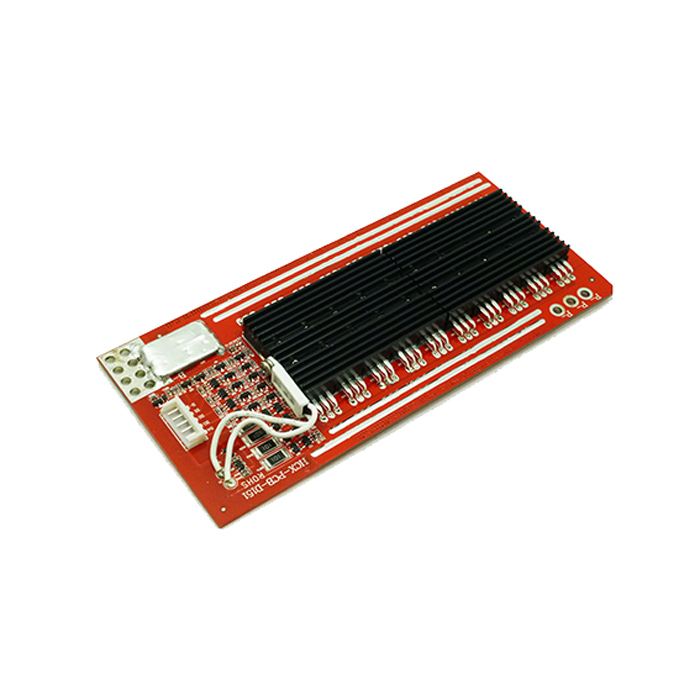

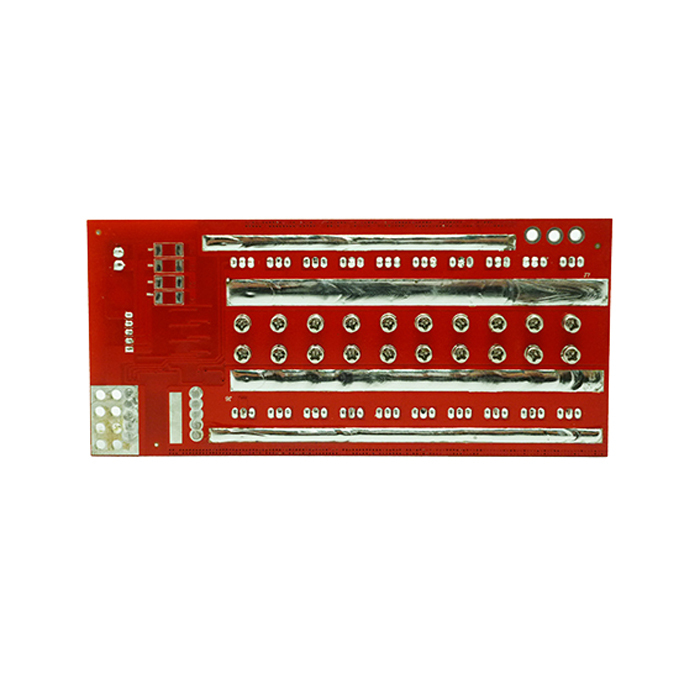

Lipo PCM for 11.1v 3s (3 cell) Battery - 60a Max Discharge

PCM (Protection Circuit Module) are designed to protect sensitive Lithium based batteries from over charge and over discharge. Mr Positive currently has a wide range of PCM designed for different cell configuration as well as different types of Lithium rechargeable batteries. Including Lithium Ion and Lithium Polymer batteries. PCM models are available with built in balancing function or without.

This model is suitable for 3 cell Lipo (Lithium Polymer) battery configurations and has specifically been designed for high discharge applications.

Full PDF data sheet for this product can be downloaded below the specifications.

Specifications:

Charging Voltage: 12.6v
Max Charge Current: 60a
Max Discharge Current: 60a
Own Current Consumption: 20uA
Over Charge Detection Voltage: 4.28v +/- 0.025v
Over Discharge Detection Voltage:: 3.00v +/- 0.05v

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
