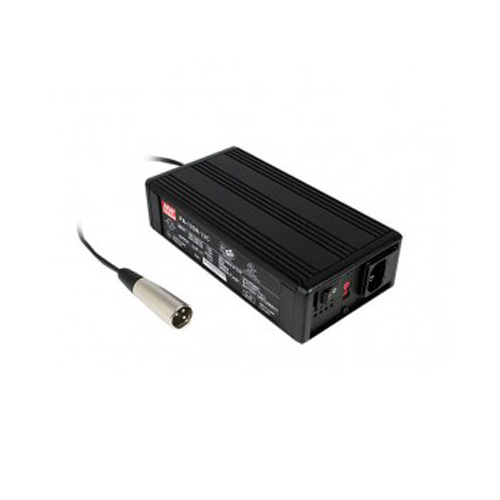

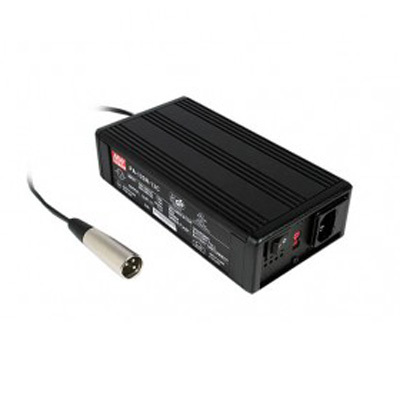

MeanWell 24v 4.3a Mobility and Golf Cart Battery Charger

MeanWell range of battery chargers offer an economical lead acid battery charging solution. Featuring 3 pin XLR style output terminals, they are ideally suited for mobility scooters and other electric vehicles such as golf carts.

These range of MeanWell chargers feature short circuit, overload, over voltage and over temperature protection and LED charge state indicator.

We currently carry a wide range of MeanWell lead acid battery chargers. Designed for 12v, 24v and 48v systems.

Specifications:

Battery Voltage: 24v
Output Current: 4.3a Max
Wattage: 120w
Battery Types: Flooded and Sealed Lead Acid
Battery Size: 12-40ahr
Input Voltage: 110-230v AC (user set switch)
Output Voltage: 27.6v
Dimensions: 180 x 96 x 49
Efficiency: 76%
Operating Temperature: -10-45 Degrees Celsius

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
