Projecta 12v 120w Monocrystalline Folding Solar Panel Kit

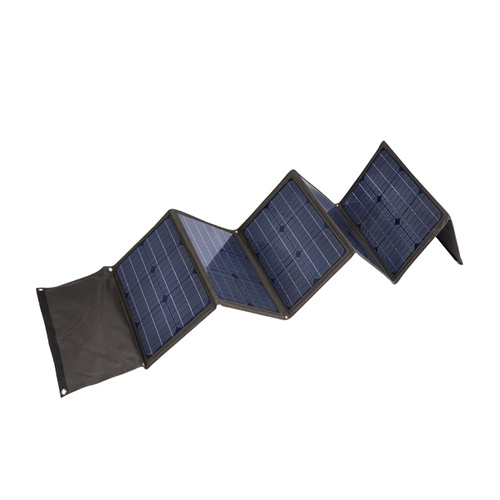

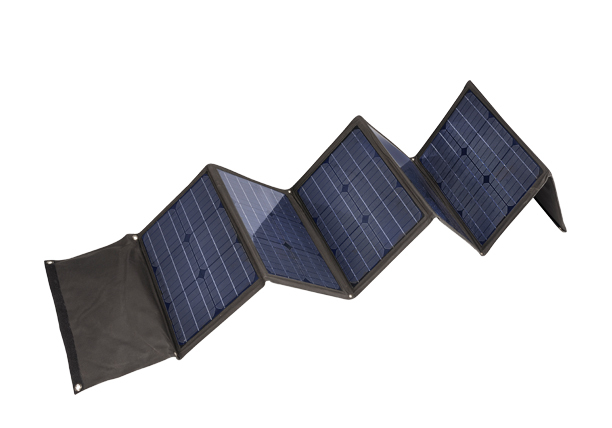

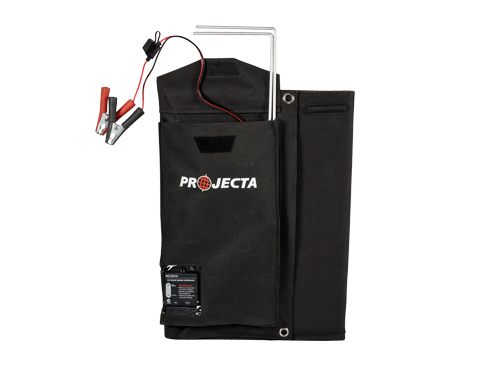

Projecta's Monocrystalline Solar panel kits feature a frameless design that folds up in to a compact (360mm x 500mm) carrying case. Weighing only 5-7 kg, the panels are housed in durable canvas. Making them easy to travel and transport in your boot or trailer.

Featuring a built in 8.5 amp Projecta Solar Controller that maintains your battery at its optimum charge state. Eliminating risk of over charge and discharge from the solar panel at night.

Projecta's Monocrystalline Solar panel kits feature a hard class backing and support legs, allowing the panels to be angles towards the sun for optimum performance. Extremely easy to use, compact and a great addition to the camping kit!

Panel Specifications:

Type: Monocrystalline
Rated Power: 120w
Open Circuit Voltage: 21v
Short Circuit Current: 7.52a
Peak Power Voltage: 17.5v
Peak Power Current: 6.86a
Test Conditions: 1000w / m2 at 25 Degrees Celsius
Fuse: 10a
Battery Connections: Battery Clamps
Weight: 6.8 kg

Controller Specifications:

Type: Automatic
Input: 12v Solar panels:
Maximum Input: 25v
Battery Voltage: 12v
Cut Out Voltage: 14.4v
Cut In Voltage: 13.3v
Start Voltage: 9v
Approvals: EMC
Charge Time: 7-35 Hours
Automotive Battery Range: 250-1200ccA
Marine Battery Range: 350-1500mcA
Deep Cycle Battery Range: 40-200ah
