Projecta 12v/24v 30amp 3 Stage Solar Controller

Projecta's Solar Controllers will protect the battery from solar over charge and (night) solar discharge. Providing stable regulated voltage to the battery at all times and monitoring the batteries state of charge. Projecta SC330D Controller employs 3 stage automatic charging technology and features built in temperature sensor that will adjust output guaranteeing a thorough battery charge in all conditions.

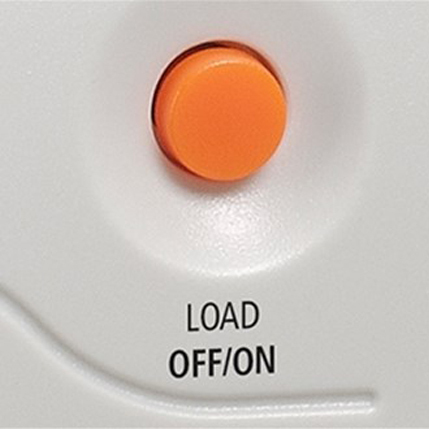

Projecta SC330D includes low voltage disconnect (LVD) circuitry. Disconnecting the DC load before the battery voltage falls too low, preventing damage due to over discharging. SC330D model also features a DC load on / off switch. Allowing for the DC load to be switched off at the controller without the need to physically disconnect appliances and devices.

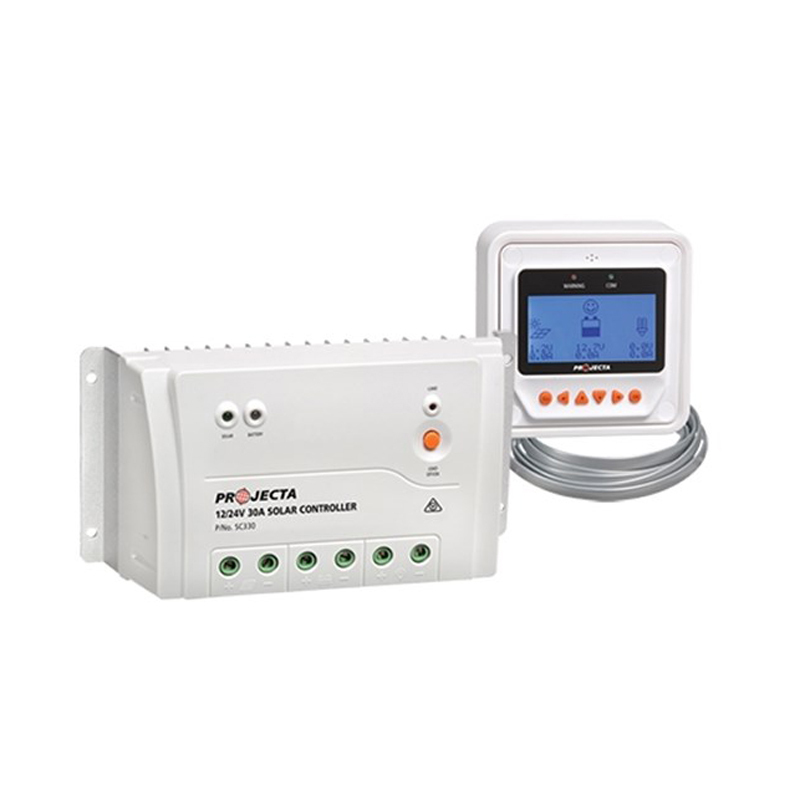

Projecta's SC330D model includes a separate remote display that will allows for control and monitoring of the controller from a remote and more convenient location. Displaying charge rate, battery level and power usage.

Specifications:

Type: Automatic (3 Stage)
Input: 12v / 24v
Max Input Voltage: 50v, 30a
Battery: 12v / 24v
Size: 200.6 x 101.3 x 57 mm
Bulk Charge Control Wet: 14.6v / 29.2v
Bulk Charge Control GEL: 14.2v / 28.4v
Bulk Charge Control AGM: 14.4v / 28.8v
Absorption Charge Control Wet: 14.6v / 29.2v
Absorption Charge Control GEL: 14.2v / 28.4v
Absorption Charge Control AGM: 14.4v / 28.2v
Float Charge Control: 13.8v / 27.6v
Maximum Charge Current: 30a
