Projecta 12v 80w Monocrystalline Folding Solar Panel Kit

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

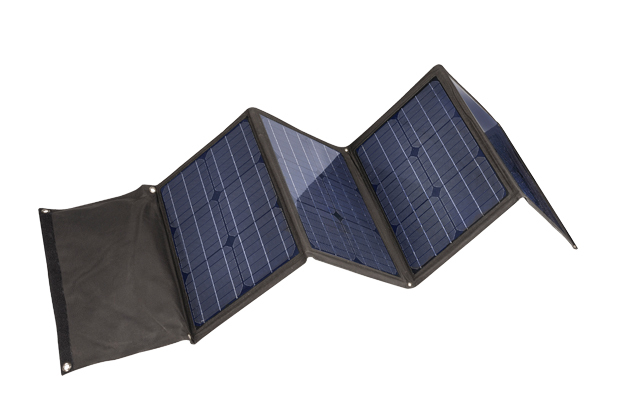

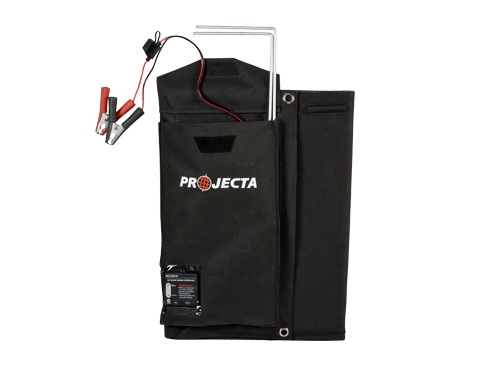

Projecta's Monocrystalline Solar panel kits feature a frameless design that folds up in to a compact (360mm x 500mm) carrying case. Weighing only 5-7 kg, the panels are housed in durable canvas. Making them easy to travel and transport in your boot or trailer.

Featuring a built in 8.5 amp Projecta Solar Controller that maintains your battery at its optimum charge state. Eliminating risk of over charge and discharge from the solar panel at night.

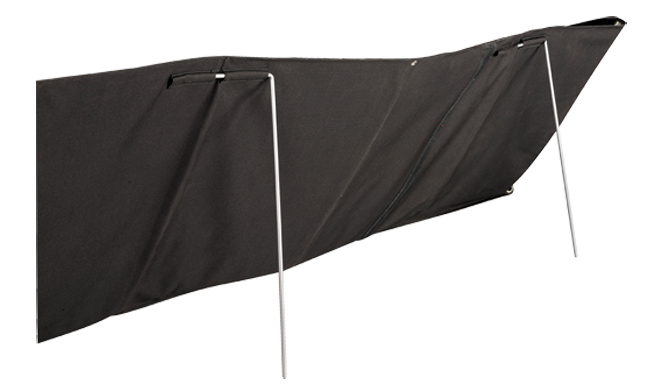

Projecta's Monocrystalline Solar panel kits feature a hard class backing and support legs, allowing the panels to be angles towards the sun for optimum performance. Extremely easy to use, compact and a great addition to the camping kit!

Panel Specifications:

Type: Monocrystalline
Rated Power: 80w
Open Circuit Voltage: 21v
Short Circuit Current: 5.0a
Peak Power Voltage: 17.5v
Peak Power Current: 4.56a
Test Conditions: 1000w / m2 at 25 Degrees Celsius
Fuse: 10a
Battery Connections: Battery Clamps
Weight: 4.7 kg

Controller Specifications:

Type: Automatic
Input: 12v Solar panels:
Maximum Input: 25v
Battery Voltage: 12v
Cut Out Voltage: 14.4v
Cut In Voltage: 13.3v
Start Voltage: 9v
Approvals: EMC
Charge Time: 7-35 Hours
Automotive Battery Range: 250-900ccA
Marine Battery Range: 300-1000mcA
Deep Cycle Battery Range: 20-140ah

(MPSP2M80K)

Product Videos

SKU	MPSP2M80K
Model #	SPM80K
Barcode #	9315219000200
Brand	Projecta

1 year warranty for materials and workmanship
5 years warranty for at least 80% output

Warranty void if:
Panel has been installed correctly and to manufacturer specification
Panel has had any signs of impact or physical damage
Manufacturers polarity and wiring instructions have not been followed
