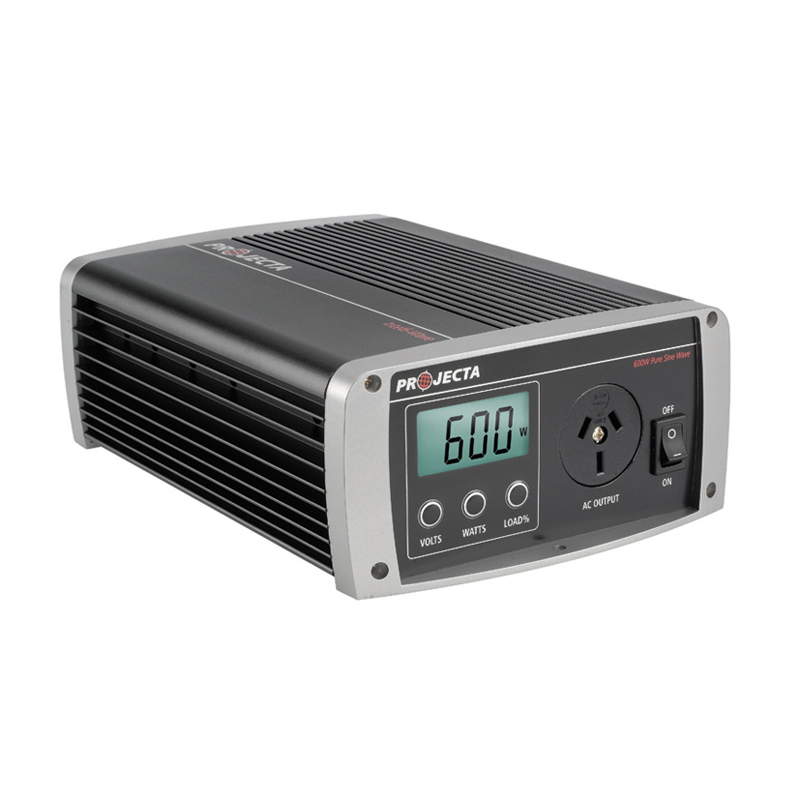

Projecta IP600 12v 600w Pure Sine Wave Inverter

Jam packed with features and delivering class leading performance, the IP600 is the perfect addition for anyone looking for ultra clean power whilst in remote locations. Its rugged construction allows permanent installation making it ideal for camper trailers, 4WDs and work vehicles.

Projecta sets the benchmark for others to follow with their range of Intelli-Wave invertors. Adopting pure sine wave technology, essential for sensitive electrical components such as LCD displays, game consoles, high end Hi-Fi components and medical equipment. Ultra clean power delivery, rugged construction and no more interference from the DC to AC conversion process.

Projecta's Intelli-Wave range of modified sine wave invertors all feature fully isolated design. Fully isolating the DC (and therefore battery posts and vehicle chassis) from the 240v AC circuit and are designed to Australian AS4763 standards.

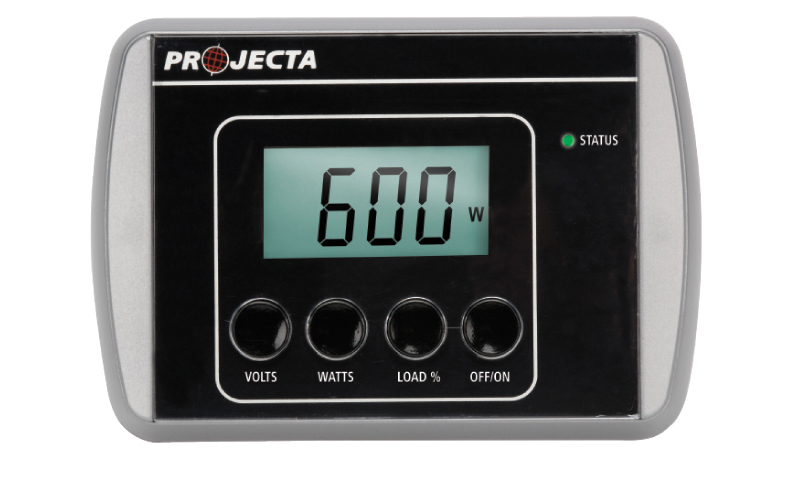

The Projecta IP600 includes a remote control display. Allowing the inverter to be mounted flash to a surface, out of sight.

Specifications:

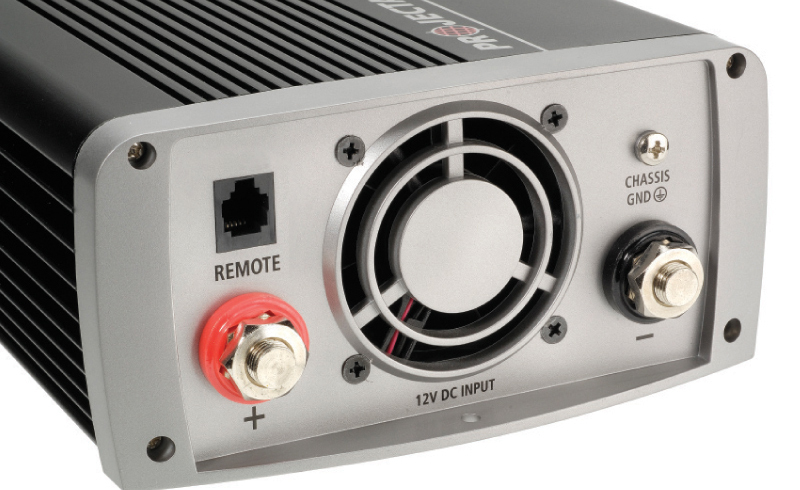

Input: 12v DC Battery / Vehicle (9.75-15.5v DC)
Input Current: (Max DC Amps): 60a
Remote Standby Current Draw: 2ma

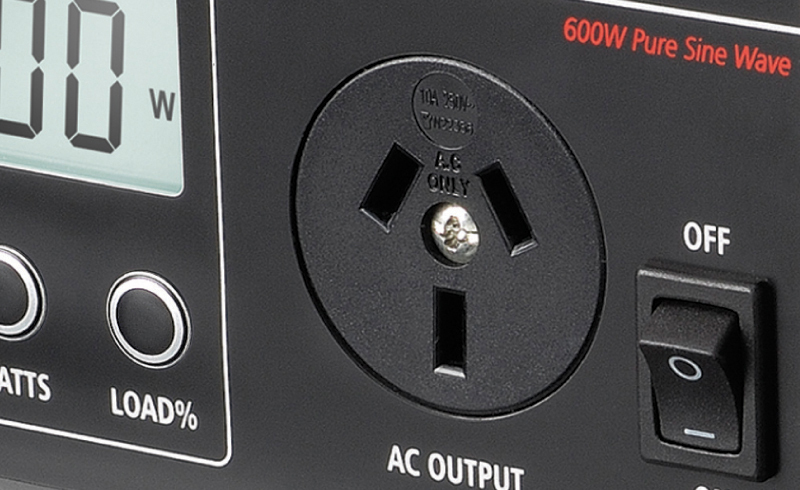

Output: 240v AC 50hz
Continuous Power: 600w
Peak Power: 1200w
Inverter Classification: Equipotent ally Bonded Inverter (EPB)
Output Waveform: Pure Sine Wave
Efficiency: 85-90%
Low Battery Alarm / Shutdown: Alarm 10.25v / Shutdown 9.75v (+/- 0.2v)
Cooling fan: Automatic Temperature Controlled
Thermal Shutdown: 65 Degrees Celsius
Replacement Fuse: Standard Auto Blade
Fuse Quantity and Size: 220a (2 x 40a and 1 x 30a)
Size: 250mm x 168mm x 81mm
Weight: 2.2Kg
