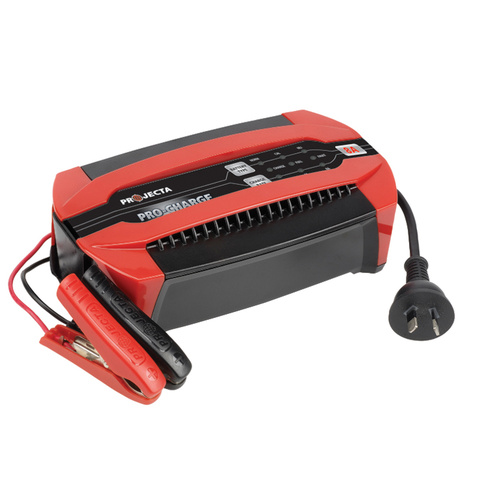

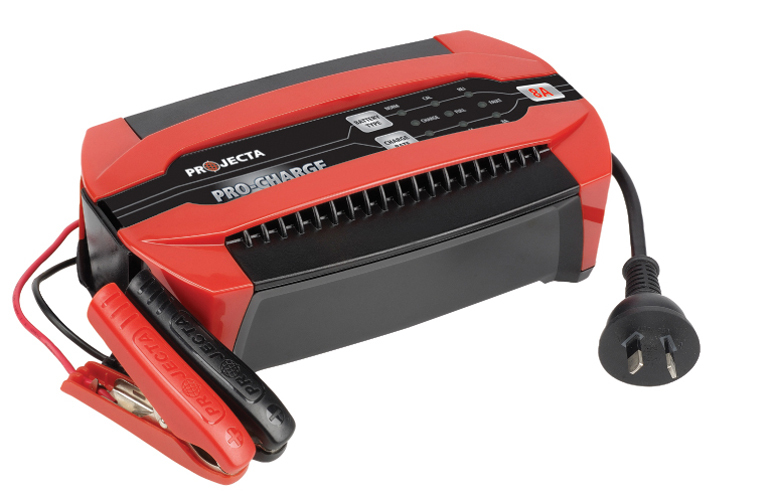

Projecta Pro Charge PC800 12v 8amp 6 Stage Car Battery Charger

Ideal for the professional and suitable for a wide range of 12v applications, Projecta's Pro Charge range of lead acid battery chargers, offer 6 stage fully automatic charging technology and battery maintenance. Projecta's PC800 is the perfect all-rounder for small to large batteries found in recreational vehicles, passenger vehicles as well as 4WDs and SUV's.

Projecta's Pro Charge range are fully automatic, spark free, feature reverse polarity protection and can be left connected to a battery for pro long periods of time without the fear of overcharging. Ideal battery charging solution for recreational or seasonal vehicles.

Suitable for GEL, AGM, Flooded and Calcium Anatomy Lead Acid Batteries.

Specifications:

Type: 6 Stage
Input (Nominal): 240v AC 50Hz
Input Power: 240w
Output Voltage: 12v
Output Current: 2, 4, 8a
Minimum Start Voltage: 3v
Back Drain: 1mA
Deep Cycle Battery Range: 14-160Ah
Automotive Battery Range: 80-1000ccA
Marine Battery Range: 110-1300mcA
Battery Types: GEL, AGM, Wet Cell and Calcium
Size: 216 x 118 x 66
Weight: 1.0kg

Charge Control:

Rejuvenation: High Frequency charge for 24 hours
Soft Start: Half the rated set current up to 10.5v
Bulk: Set Current up to 14.4v (normal) and 14.7v (Calcium)
Absorption: 14.4v (Normal), 14.7v (calcium)
Equalisation (Calcium Mode Only): Constant Current 2.0A up top 16v. Then hold for 30min or 12 hour timeout.
Analysis: Stop charging for 5 minutes, tests if battery is above 12.5v
Float: 13.7v
