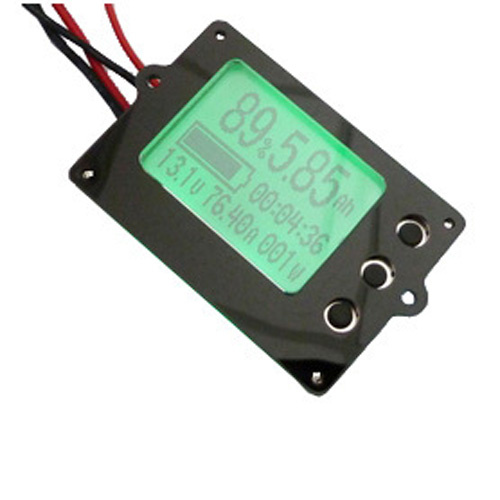

Universal Backlit LCD DIY Battery Monitoring Solution (Capacity, A, V and more)

Universal LCD battery monitoring solution that will display the battery capacity (graphic and percentage), voltage, power (ah), and the load (amps). These meters are a great DIY solution for battery packs, solar installations, electric vehicles and any other environment where real time battery data is of importance.

Compact, low power and with clear backlight LCD display that is compatible with nearly any type of battery and cell count. Including LiFePO4, Lipo, Li-Ion, Ni-MH, and all traditional Lead Acid varieties.

Features:

Compatible with all battery types
Backlight LCD display
Low Power
Displays battery capacity (ah or mah)
Displays battery capacity in percentage format and graphic for quick overview of remaining running time
Displays battery voltage
Display battery current (max 50a)

Battery Compatibility:

LiFePO4, Lipo and Li-Ion 2-13 Cells
NiMh <50v
Lead Acid, AGM, Gel 12-48v

Specifications:

Input Voltage: 8-50v
Working Power Consumption: 10mA
Standby Power: 4mA
Sleep Power Consumption: 20uA
Voltage Accuracy: +/- 2%
Current Accuracy: +/- 2%
Power Consumption with Back Light: 50mA
Battery Capacity Range: 01-590Ah
Max Current Range: 0-50a
Display Dimensions: 32 x 22mm
Overall Dimensions: 53 x 38 x 8mm

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
