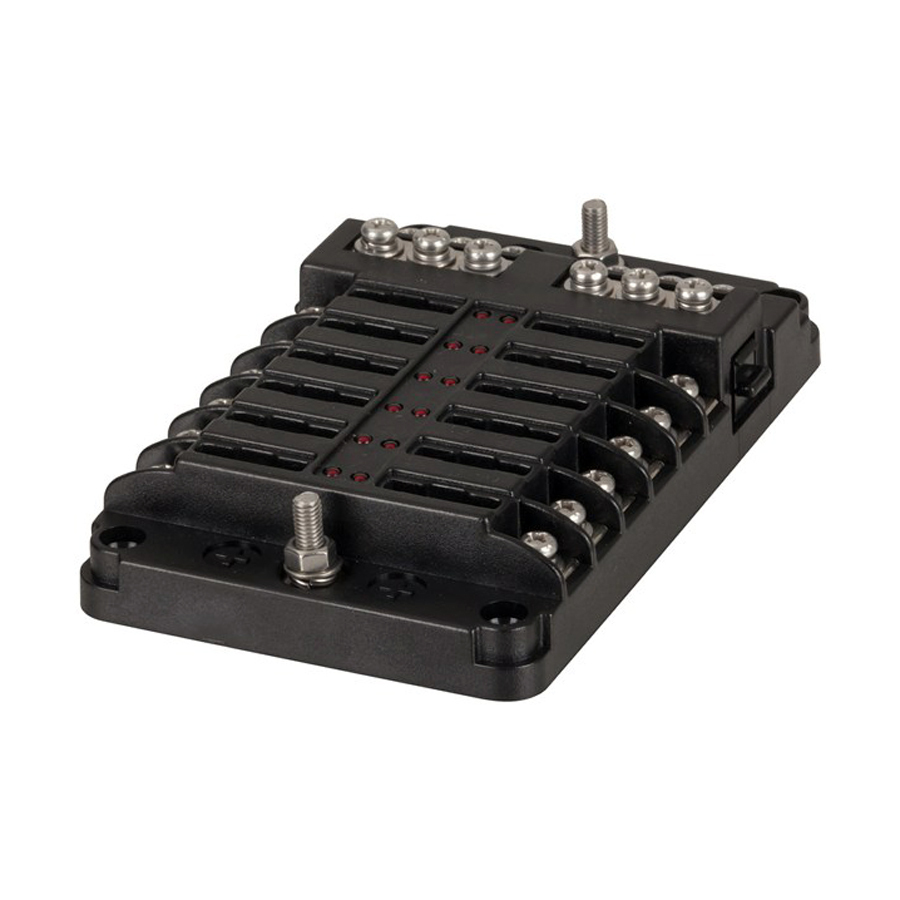

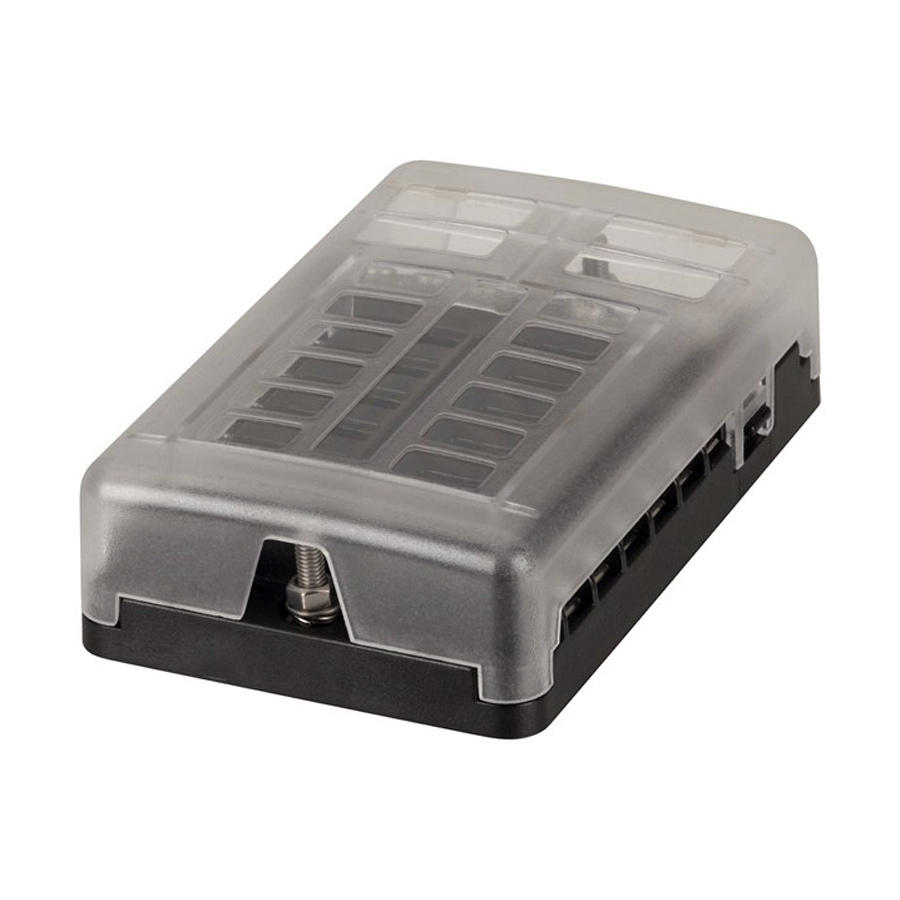

12 Way Fuse Block with Bus Bar
This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Up to 30A per output
Red LED blown fuse indication
Negative bus bar
Specifications:
Main Line Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Main Line Wire Size: #4-6 AWG
Single Line Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Single Line Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
Width: 85.0mm
Height: 138.0mm
Depth: 37.0mm
Weight: 250.0g
(FSB1002)
SKU | FSB1002 |
Barcode # | 9319236747759 |
