12.8v 100ahr LiFePO4 Deep Cycle Battery Slimline Metal Case

LiFePO4 12v lead acid alternatives offer considerably higher energy density with a reduction of weight. They can also be charged faster and provide higher burst current.

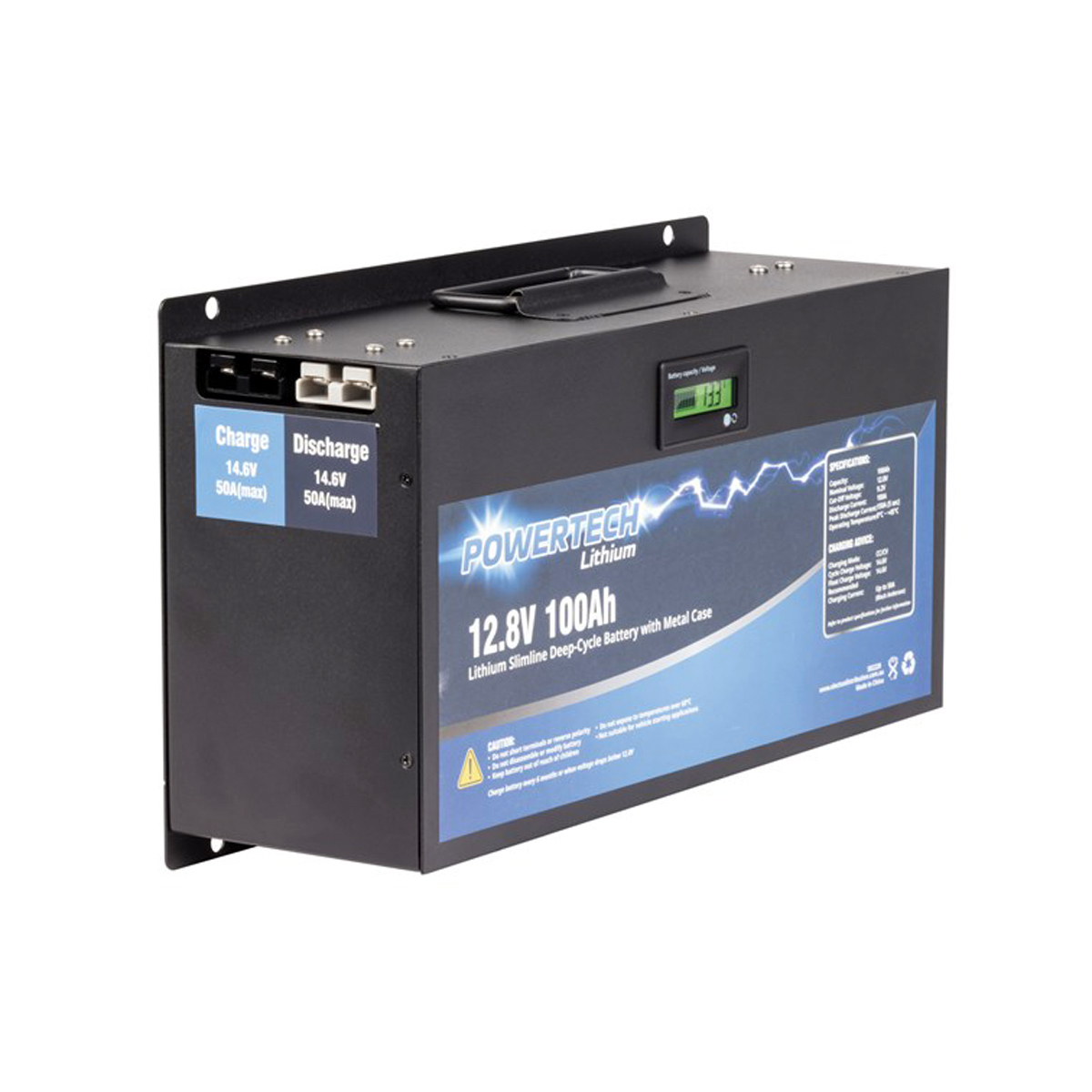

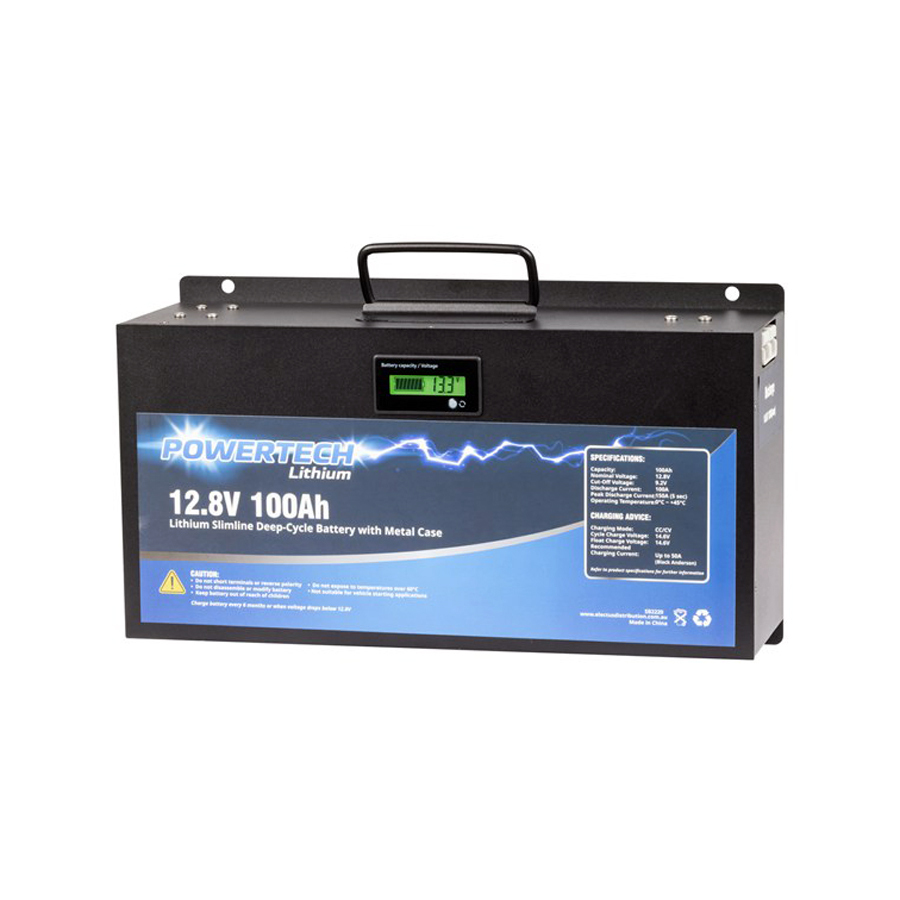

This particular model is housed in a unique slimline metal case with heavy duty handle, mounting holes as well as integrated anderson connector. The LCD display with indicate battery status at a glance.
Originally designed to fit neatly behind the driver/passenger seat in a car 4WD/RV. Add two units in parallel behind each seat to double the capacity to 200ahr  The Anderson connectors guarantee a neat wiring installation with no exposed electrical terminals.  It could easily fit somewhere in a box-type camping trailer or even a small boat under a seat.

Please Note

Powertech range of LiFePO4 12.8v deep cycle batteries should not be wired in series in complicated multi battery installations. The internal BMS circuitry does not suit series wiring. Connecting Powertech batteries in series will result in mid to long term cell damage as the BMS will not function correctly when more than one battery has been connected in series.

Specifications:

DC Voltage: 12.8V
Width: 180mm
Height: 115mm
Length: 360mm
Weigh : 11.3kg
Recharging Voltage: 14.6V
Recommended Recharge Current: <100.0A
Battery Chemical Composition: LiFePO4
Amp Hour Rating: 100.0Ah
Connection Type: Anderson
Cut-Off Voltage: 9.2V approx.
Charge Type: Constant Current / Constant Voltage
Normal Current: 100A
Peak Discharge Current: <=150a

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
