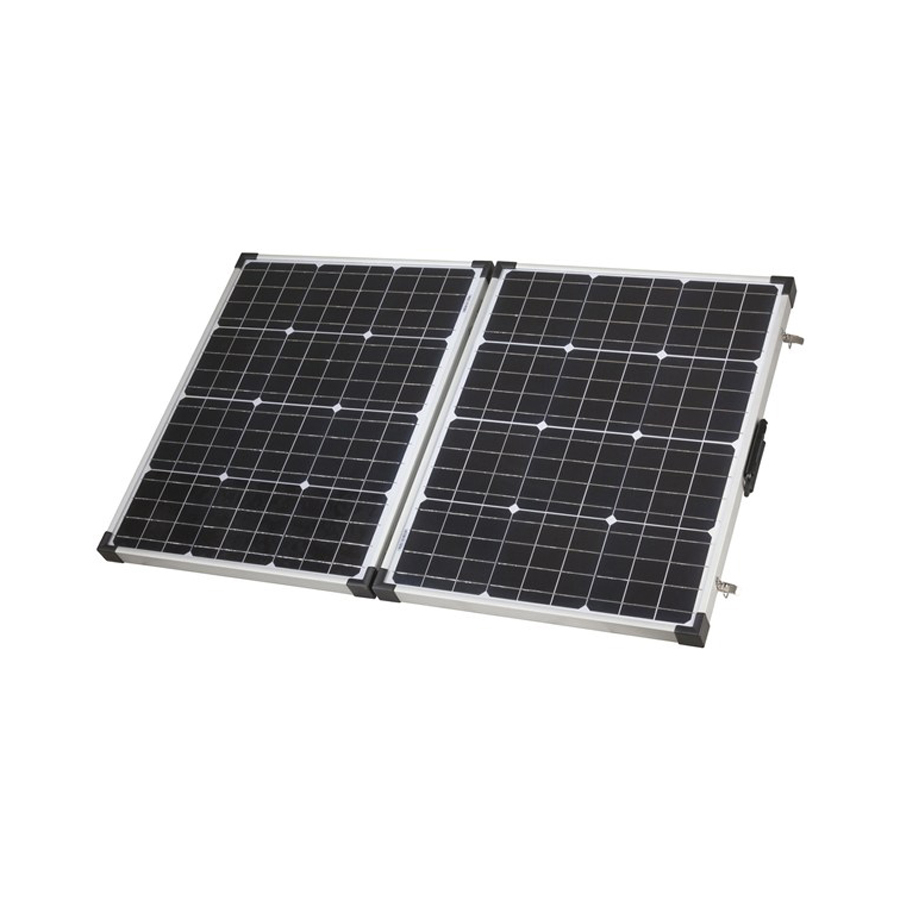

12v 110w Folding Monocrystalline Solar Panel inc Regulator
Ideal solution for portable renewable energy systems such as caravans or the camp site. These solar panels are available in a variety of power ratings and sizes. Folding in half and featuring fold out legs that allow you to get the perfect angle from the sun.
The 110w package is made up from two A-Grade 55w solar panels and a integrated weatherproof 3 stage solar charge controller. Terminated with 5m lead and Anderson connectors. Simply connect it to your battery and start harnessing the power of the sun!
The unit can be stored in its heavy duty carry bag that not only makes transport a breeze, but also provides protection for the PV panels for long term storage.
If you are looking for a portable solar solution and permanent mounting is not for you, then this is the perfect kit for you!
Specifications:
DC Voltage: 12.0V
Maximum Power: 110.0W
Dimension Unfolded: 1050mm (l) x 665mm (w) x 35mm (d)
Cable Length: 5.0m
Dimension Folded: 525mm (l) x 665mm (w) x 75mm (d)
Solar Panel Type: Monocrystalline
Cover Material: tempered glass
Open Circuit Voltage: 21.5V
Short Circuit Current: 6.56A
Voltage at Power Max: 17.9V
Current at Power Max: 6.15A
Power Connector: Anderson Connector
(BTS03)
| SKU | BTS03 |
| Brand |
1 year warranty for materials and workmanship
5 years warranty for at least 80% output
Warranty void if:
Panel has been installed correctly and to manufacturer specification
Panel has had any signs of impact or physical damage
Manufacturers polarity and wiring instructions have not been followed
