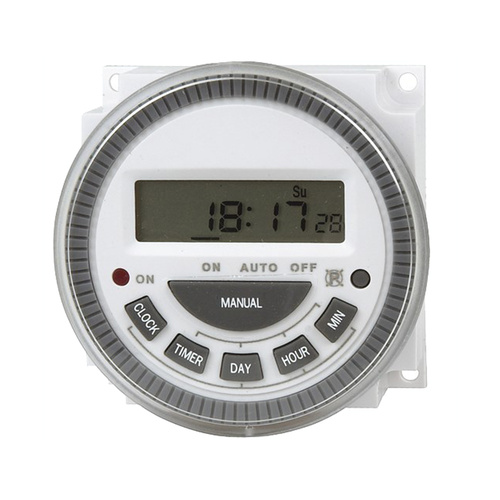

12v DC Digital Mains Timer Module Switch

This timers are available in both DC and AC variety and are ideal for general DIY applications. Automate timing, heating, lighting, pumps or any other application that requires multiple unattended switching cycles.

The timer features eight on/off settings that can be programmed to function on any day, or combinations of days across the week. Each of the on/off settings can be set independently. For instance, setting one could turn on a heater at 7:00am and off at 9:00am each week day. Setting two could switch the same heater on and off at your desired times in the evenings. Setting three could switch the heater on and off on Saturday and setting four could control other on/off times for Sunday. Each on/off setting can be associated with a range of days from a single day to every day, thus giving 56 possible on/off cycles per week. The setting process is simple and intuitive.

Units feature a manual override switch and LED power indicator.

Specifications:

Input Voltage: 12v DC
Switching Capacity: 16a @240v AC
Power Consumption: 7va (approx..)
Running Accuracy: =< 1 second per day
