200w Monocrystalline Folding Canvas Solar Panel Kit

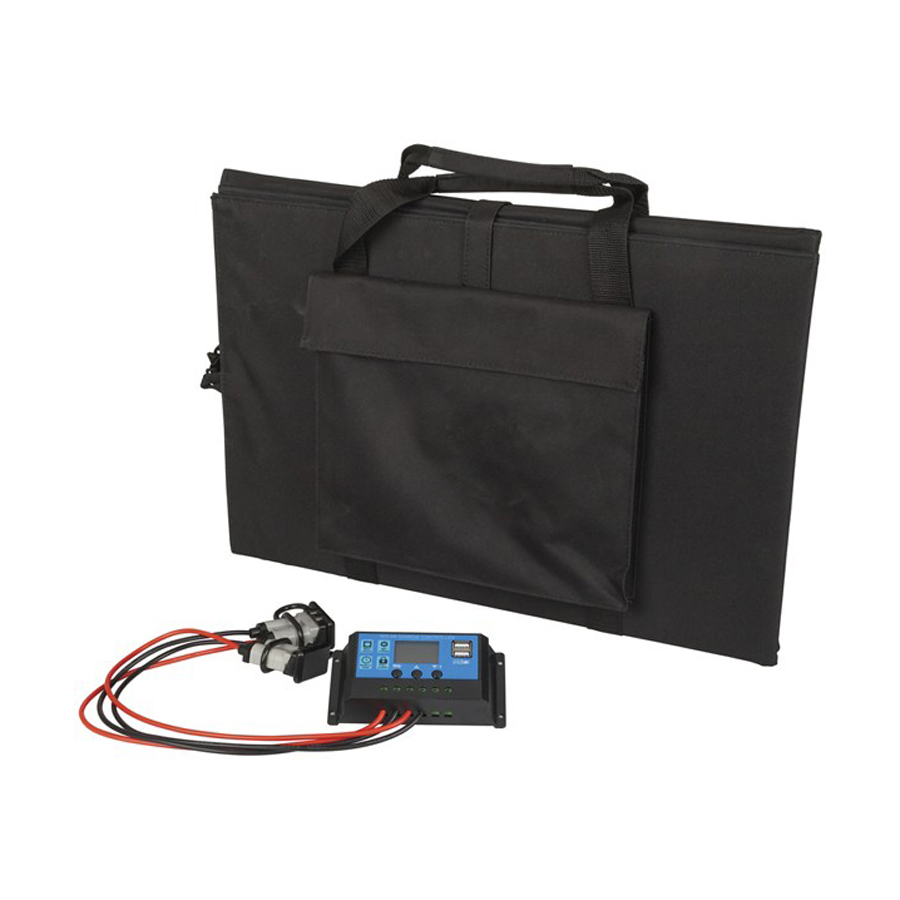

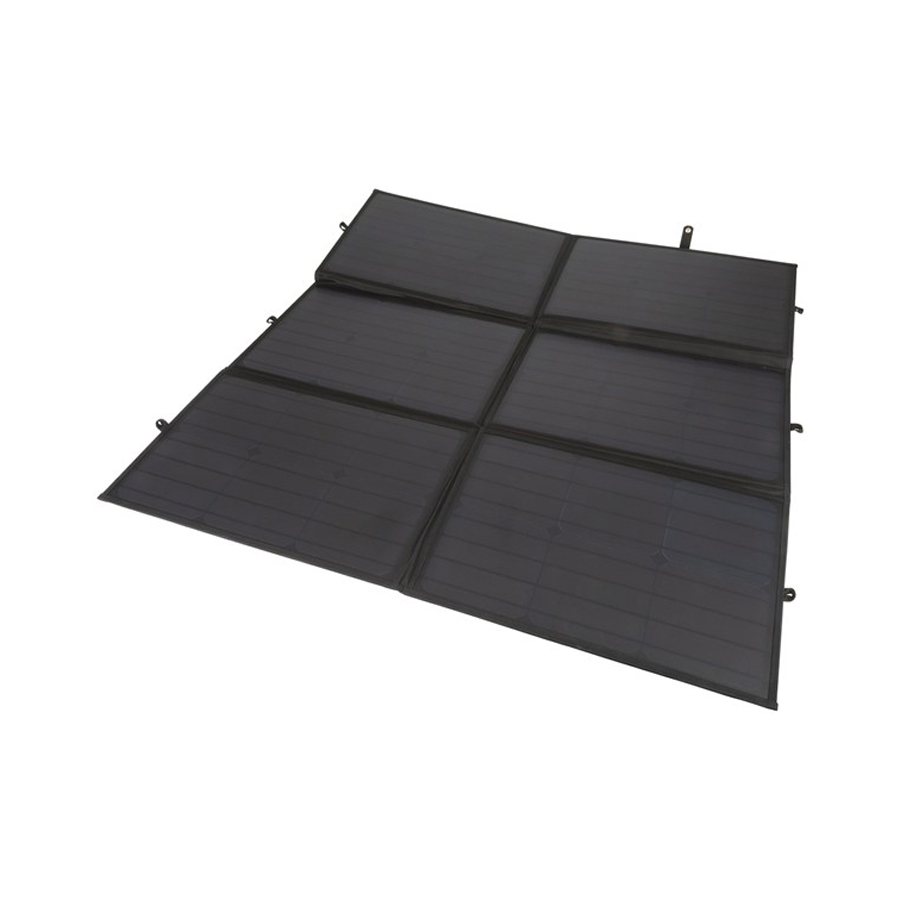

Blanket solar panels are much lighter and take up less space compared to traditional fold-up solar panels. This 12V 200W solar panel weighs just 6.8kg. When not in use, it folds down to just 512mm wide by 360mm high, small enough to easily stow away in a storage cupboard. When you want to use it, simply unfold, and lay on the ground or across your car's windscreen. A charge controller is included, so you can connect directly to a GEL, flooded or SLA battery without any additional hardware. The charge controller also includes a 2A USB charging outlet, perfect for charging mobile phones, tablets, and other devices in an emergency. Built with high grade monocrystalline solar panels, and safety features including short circuit, open circuit, reverse polarity, overload, and dual MOSFET reverse current protection. A carry bag is supplied with a built-in pouch for accessory storage.

Features:

3-stage PWM charge management with included solar controller
USB 2A USB Port
Carry case

Specifications:

System Voltage: 12/24V Auto
Battery Equalisation Sealed: 14.4v
Battery Equalisation GEL: 14.2v
Battery Equalisation Flooded: 14.6v
Float Charge: 13.7V (Default, Adjustable)
Discharge Stop: 10.7V (Default, Adjustable)
Discharge Reconnect: 12.6V (Default, Adjustable)
USB Output: 5V, 2A
Self-Consumption: <10mA
Operating Temperature: -35-60 Degrees Celsius
Continuous Power: 200W
Dimension Unfolded: 1070mm (W) x 1032mm (L)
Dimensions Folded: 512mm x 360mm
Weight: 6.2kg
Charge Controller Dimensions: 134mm (w) x 32mm (h) x 70mm (d)
Charge Controller Weight: 154g
Charge Controller Technology: Pulse Width Modulated (PWM)
Max PV Open Circuit Voltage: 48v
Max Charging Current: 20a
Max Load Current: 20a
Solar panel Type: Monocrystalline
Open Circuit Voltage: 23.7v
Short Circuit Current: 9.8a
Voltage at Power Max: 18v
Current at Power Max: 9.5a
