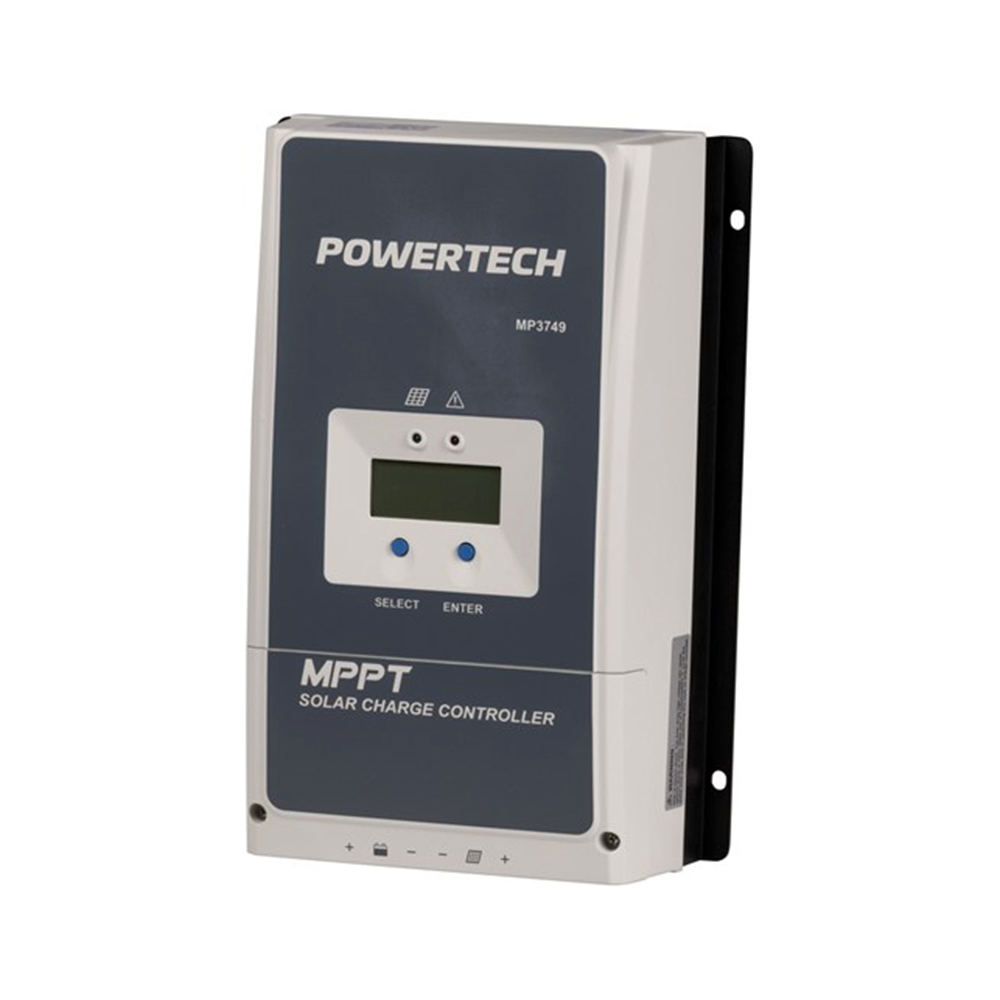

60a 12-24v MPPT Lead Acid and Lithium Solar Charge Controller

Now compatible with a wider variety of batteries including all lead acid types and 12/24v LiFePO4 batteries.

This model utelises maximum power point tracking (MPPT) for maximum efficiency and power redistribution to the batteries.

Suitable for solar arrays up to 750w or 24v arrays up to 1500w. 3 stage charging including bulk, constant and float charging (Lead Acid Batteries) along with a LCD screen that displays charge status and battery voltage.

This unit is built into a heavy duty durable case for permanent installations for huts, campervans and much more

Features:

Advanced MPPT control technology
High tracking and conversion efficiency
Supports Sealed, Gel or flooded lead acid and Lithium batteries
3-stage intelligent charging
Multiple load work modes
Extensive electronic protection
Backlit LCD display
RS485 communication
Common negative grounding

Specifications:

DC Voltage: 16v - 100v
Max Current: 60a (panel and or Battery dependent)
Width: 155mm
Height: 221mm
Depth: 52mm
Weight: 940g
Charge Controller Technology: Maximum Power Point Tracking (MPPT)
Max Solar Panel Array: 750w (12v), 1500w (24v)
Lead Acid Battery Support: Sealed, GEL, AGM Flooded (8-17v / 18-34v)
Lithium Battery Support: LifePO4 12v or 24v

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
