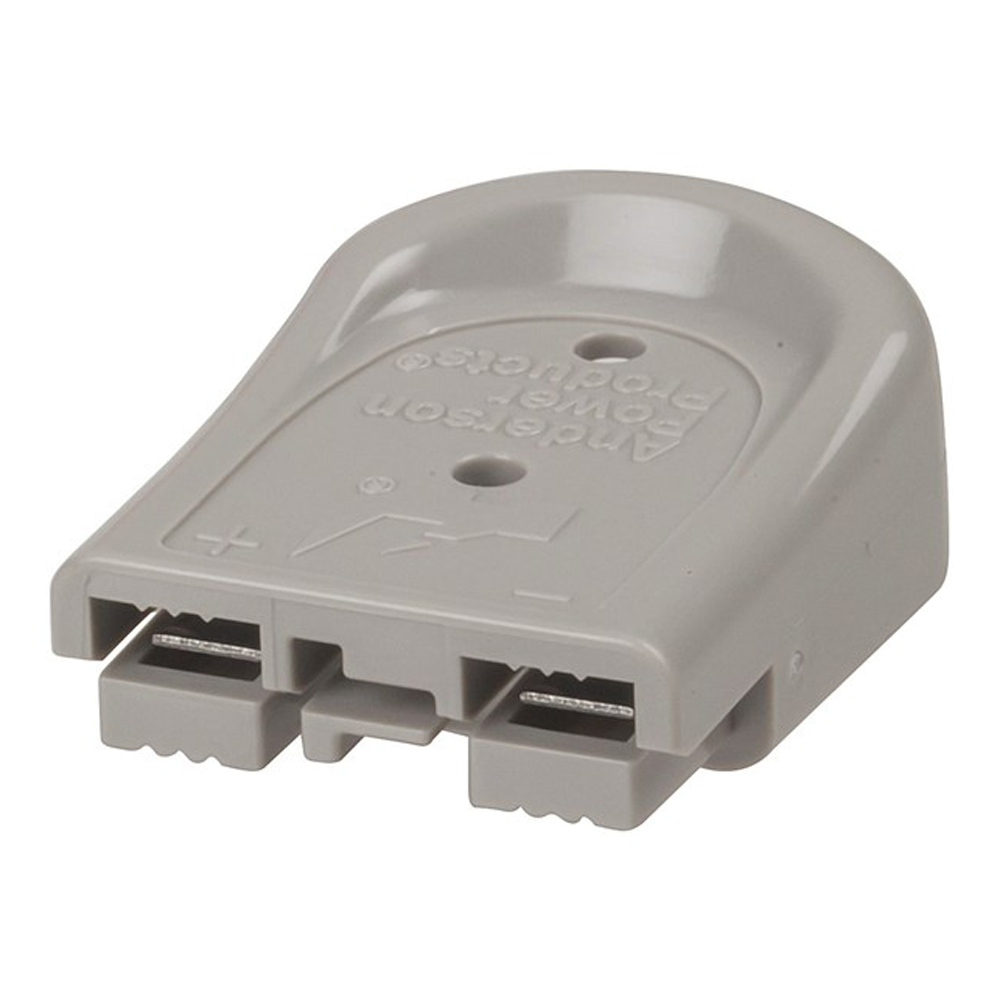

Anderson SBS 35a Mini Connector Grey

$12.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping

Compact and ergonomic, these high-current connectors protect against accidental contact with dangerous DC circuits. Inline and wire-to-wire configurations allow for one connector to meet multiple needs. The mini connector features touch-safe polycarbonate housing and two finger proof positions.

Available in red, black and grey. This model is the grey version.

Features:

Anderson's smallest SBS connector
Touch-safe housing
Contact Rating: 10AWG 35A
Contact Wire Size: 0.75 to 4.0mm²
Max Wire Outer Diameter: 4.65mm
Contact Retention Force: 9kg (20lbs) minimum

Specifications:

AC Voltage rating: 600.0V
DC current rating: 35.0A
DC Voltage: 600.0V
Operating Temperature: -20 to +105 Degrees Celsius
Length: 30.0mm
Width: 23.0mm
Height: 10.0mm
Mounting Method: Line
Attachment / Securing Method: Integrated Clips
Plug or Socket Type: Anderson 35A 2 Pole
Attachment Method: Crimp
Pack Quantity: 1.0pc
Contacts / Pins: 2.0pc
Case Material: ABS Plastic (Acrylonitrile Butadiene Styrene)
Contact Material: Plated Metal
Locking Function: Locking Screw
Cable Entry Diameter: 4.65mm
Colour Coded: Grey

(SBSGRY)

Product Videos

SKU SBSGRY
Barcode # 9319236676691
Brand

Anderson Power Products

12 Month Manufacturer Warranty
