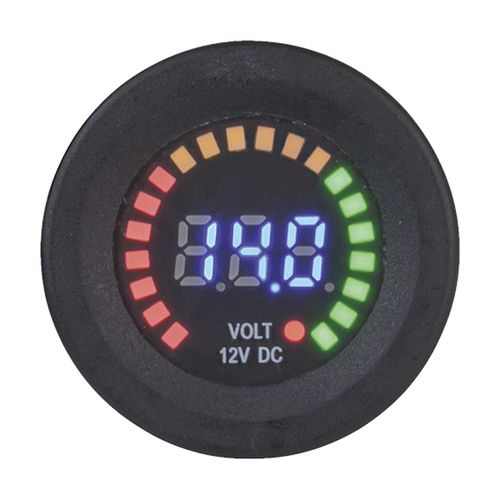

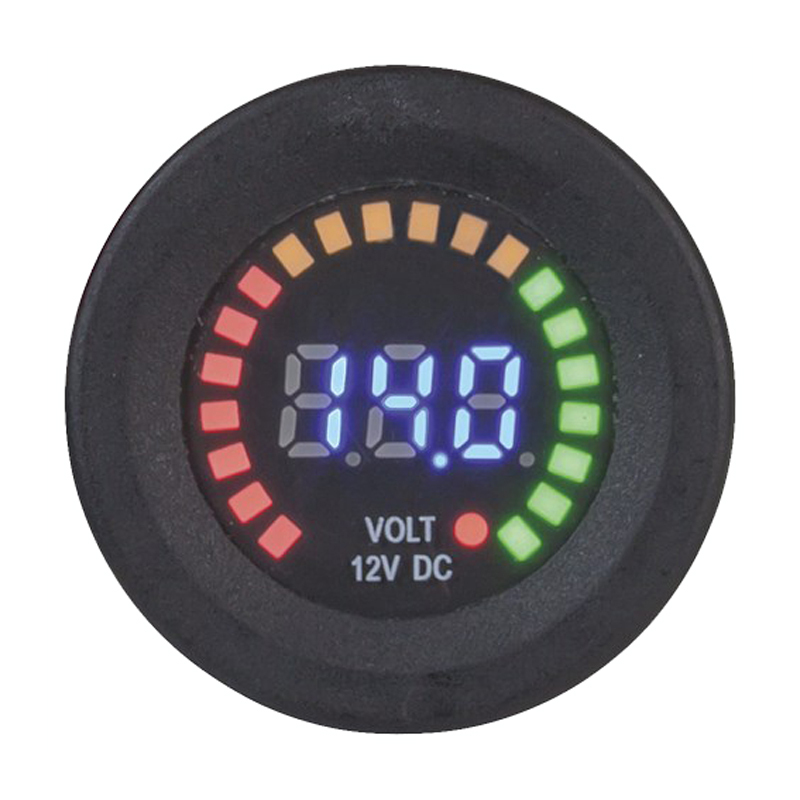

Automotive 5-15v DC LED Voltmeter with Bar Graph

This simple to use and very easy to read voltmeter displays the vehicle battery voltage in numerical form as well as a bar graph.

Connection is via 6.3mm spade terminals. Supplied with brackets for panel or surface mounting

Specifications:

DC Volts Measurement Range: 5.0V, 15.0V
Digits Displayed: 3.0 digit
Display Type: LED
Display Backlight: Blue LED Backlit
Width: 60.0mm
Height: 42.0mm
Mounting Method: Panel
Attachment / Securing Method: Collar / Nut
Dimension for: Including Bracket
Dimensions details: Under Dash / Surface Mount Hood
Width: 55.0mm
Height: 50.0mm
Depth: 80.0mm
