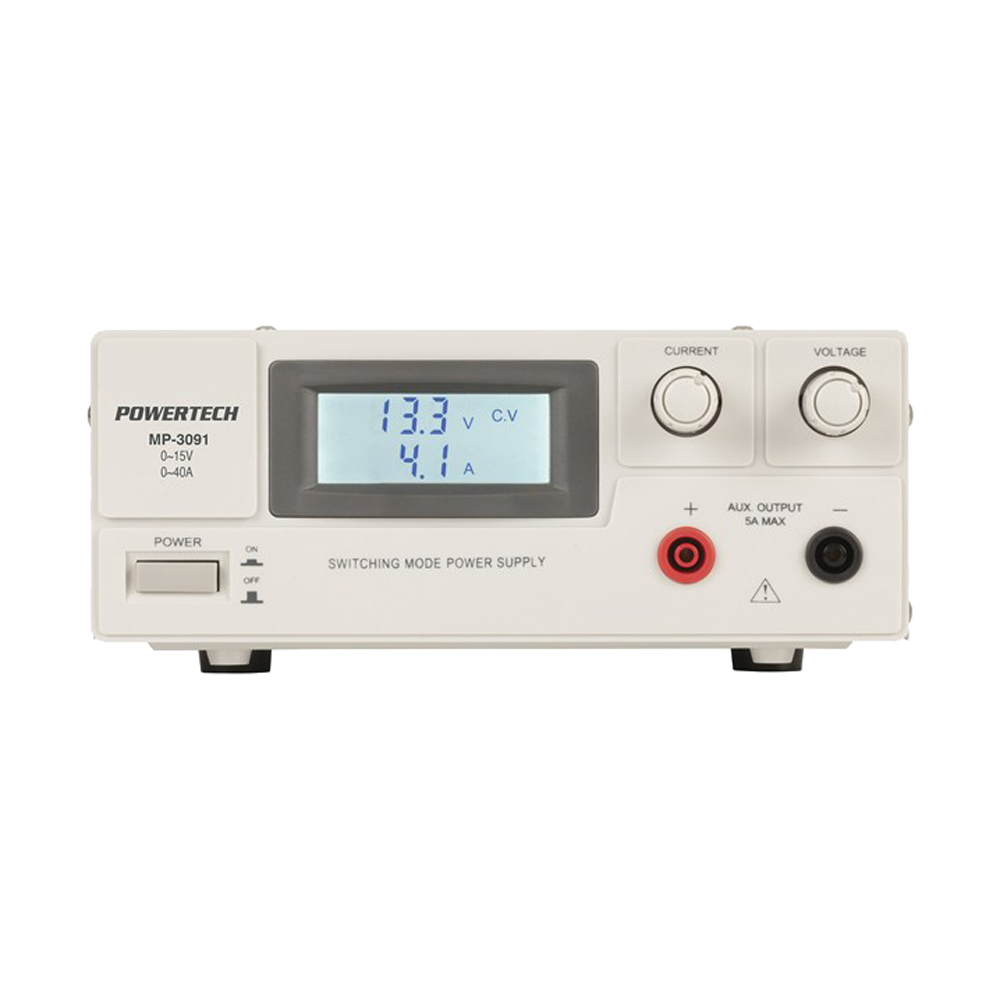

Benchtop 0-15v 0-40a Regulated Switch mode Power Supply

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Quality lab power supply to provide power for all your projects as well as RC hobby chargers. This unit offers a wide operating voltage of 0-15v as well as a maximum current of up to 40 amps!

The front banana sockets can provide up to 5a for most prototyping and powering electronics projects. The rear heavy duty binding posts can handle up to 40a for those power hungry projects and RC hobby lipo chargers.

Integrated LCD display provides voltage current and mode settings.

Simple to use and essential for any workbench!

Specifications:

Voltage Range: 0-15v DC
Output Current Range: 0-40a
Protection: Overload and over temperature protected
Input Voltage: 220V-240V @ 50Hz
Fuse: 250V @ 6A
Ripple & Noise (Peak-Peak) Voltage: 100mV
Width : 336.0mm
Height : 87.0mm
Depth : 214.0mm
Weight : 2.9kg

(PSU40A2)
