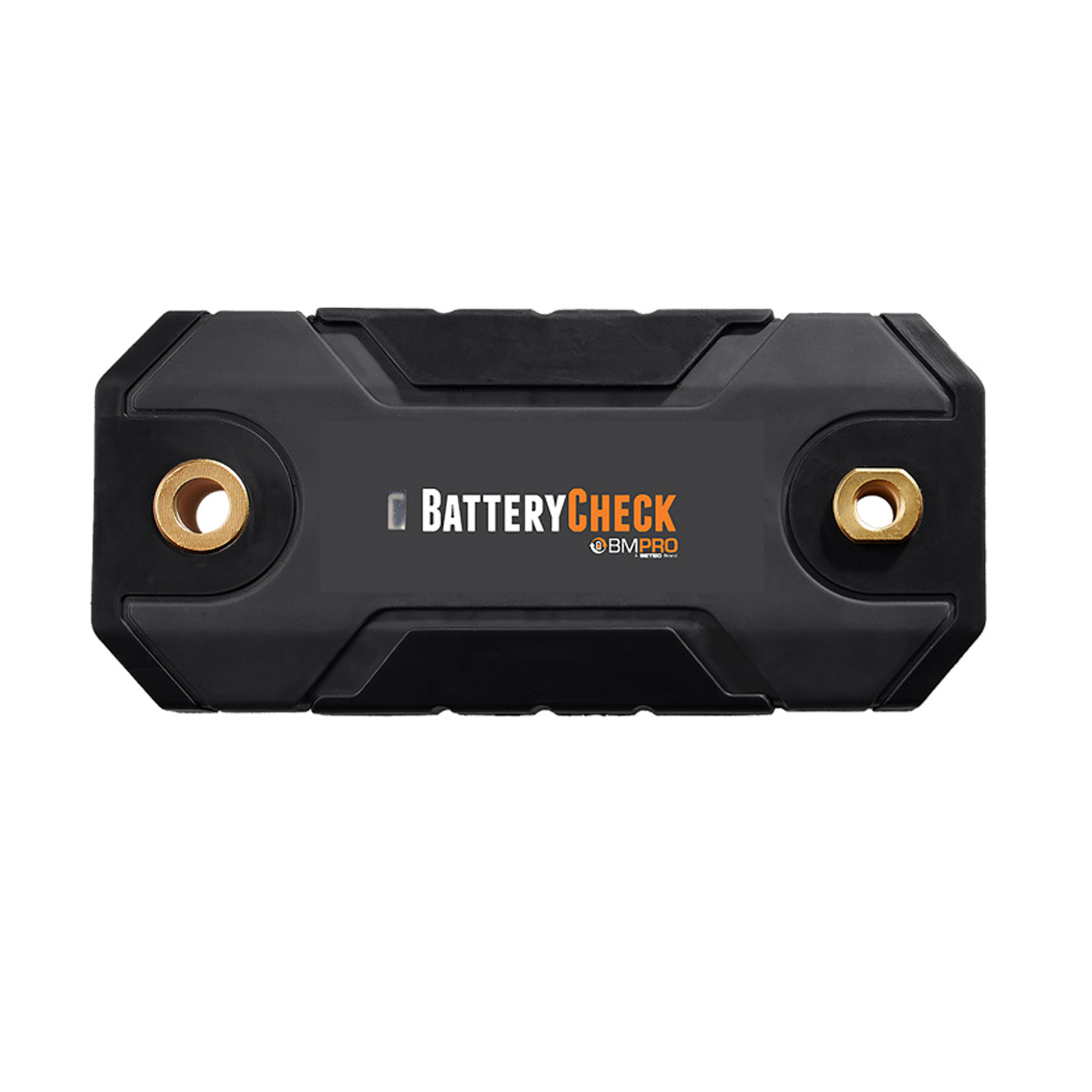

BMPRO Bluetooth In-Line Battery Monitor

BMPO's BATTCHECK100 is an elegant, easy to install, all in one solution that will provide real time data on your deep cycle battery. The units sits in-line (in series) to your entire power system. Connecting to the battery's negative terminal. All other device / power leads now connect to the BATTCHECK100. All current travels through the unit and unlike other battery monitors, the BATTCHECK100 can measures a combination of real time current, voltage and produces capacity calculations on the battery.

The BATTCHECK100 has a max power rating of 80a and should never be used in a starting application (engine starting battery). Suitable for deep cycle applications only.

Simply connect to the battery, pair with a smartphone using Bluetooth and get instant access to all critical battery details remotely.

Ideal solution in environments where the battery is concealed. Such as marine, caravans, dual battery setups in show cars and much more.

Suitable for 12v/24v system with a max current draw of 80 amps only.

Features:

Bluetooth communication with Smartphones
Android and IOS free app.
Easy installation
Suitable of battery banks 7-800ahr
Internal shunt max power rating 80a
12v and 24 AGM, Gel or Flooded battery compatible

Specifications:

Voltage Range: 8-30v
Voltage Resolution: 100mV (0.1v)
Current Range: +/- 100a
Current Resolution: 100mA (0.1a)
Temperature Measurement range: -20 to +70 Degrees Celsius
Temperature Resolution: 1 Degrees
Monitored Battery Capacity: 7a-800ah
Alarms: Low Voltage, Low State Charge
Current Consumption: 0.1a peak
Quiescent Current Drain: <10mA
Dimensions: 140mm x 65mm x 20mm
IP Rating: IP65

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
