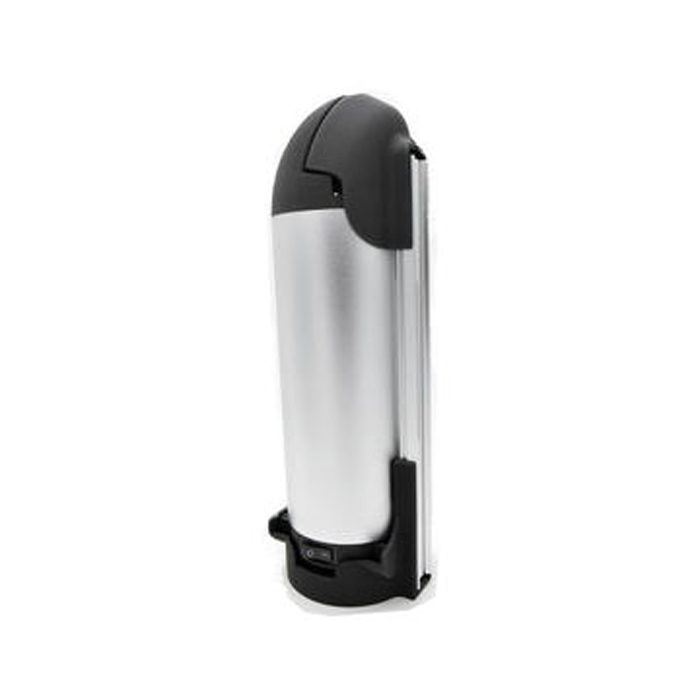

Bottle Type 36v 11.6ahr e-Bike Battery Module

Bottle type e-bike battery module including clip in mount that can be mounted to the bikes frame. Our Bottle Type e-bike battery modules are all manufactured using Panasonic 18650 Li-Ion cells. They feature integrated discharge protection and are available in 24v, 36v and 48v to suit most custom e-bike electrical systems.

Our 36v bottle style e-bike battery module feature four parallel banks of ten Panasonic 2900mah Li-Ion cells wired in series.

Specifications:

Nominal Voltage: 36v
Nominal Capacity: 11.6ahr
Working Current: 10a
Charging Voltage: 42v
Discharge Cut Off: 30v
Configuration: 4P10S
Chemistry: Li-Ion
Suitable Charger: 42v 2a
Dimensions (Approx): 100mm (Diameter) x 390mm (Length)
DC Charge Input Polarity: Centre Positive

Please Note:

It is critical that these be-bike battery modules are charged with correct Li-Ion charger as specified in specification. Mr Positive carries compatible charger for these batteries and it can be found under the We Also Recommend section.
