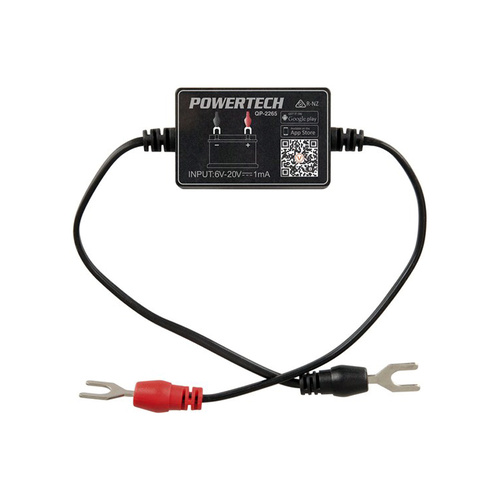

Compact 12v Bluetooth Battery Monitor

Compact and powerful Bluetooth battery monitor. Unit is very easy to install. Simply connect to battery terminals and install the free app on your smartphone. Simple as that! Now you have real time display of battery voltage, datalogging as well as push notifications for low battery voltage warnings. Unit has integrated short circuit and reverse polarity protected for safety.

Features:

Real-time battery monitoring
Stores and displays historical data
Tests battery cranking, charging and trip duration
Automatic sync, alerts sent to mobile (free APP on iOS, Android)
Short circuit and reverse polarity protection

Specifications:

DC Current Rating: 1.0mA
Operating Temperature: -40 to +90 Degrees Celsius
DC Volts Measurement Range: 6.0V, 20.0V
Width: 56.0mm
Height: 36.0mm
Depth: 16.0mm
Cable Length: 150.0mm
Weight: 35g
Accuracy Plus: 0.03
Accuracy Minus: 0.03

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
