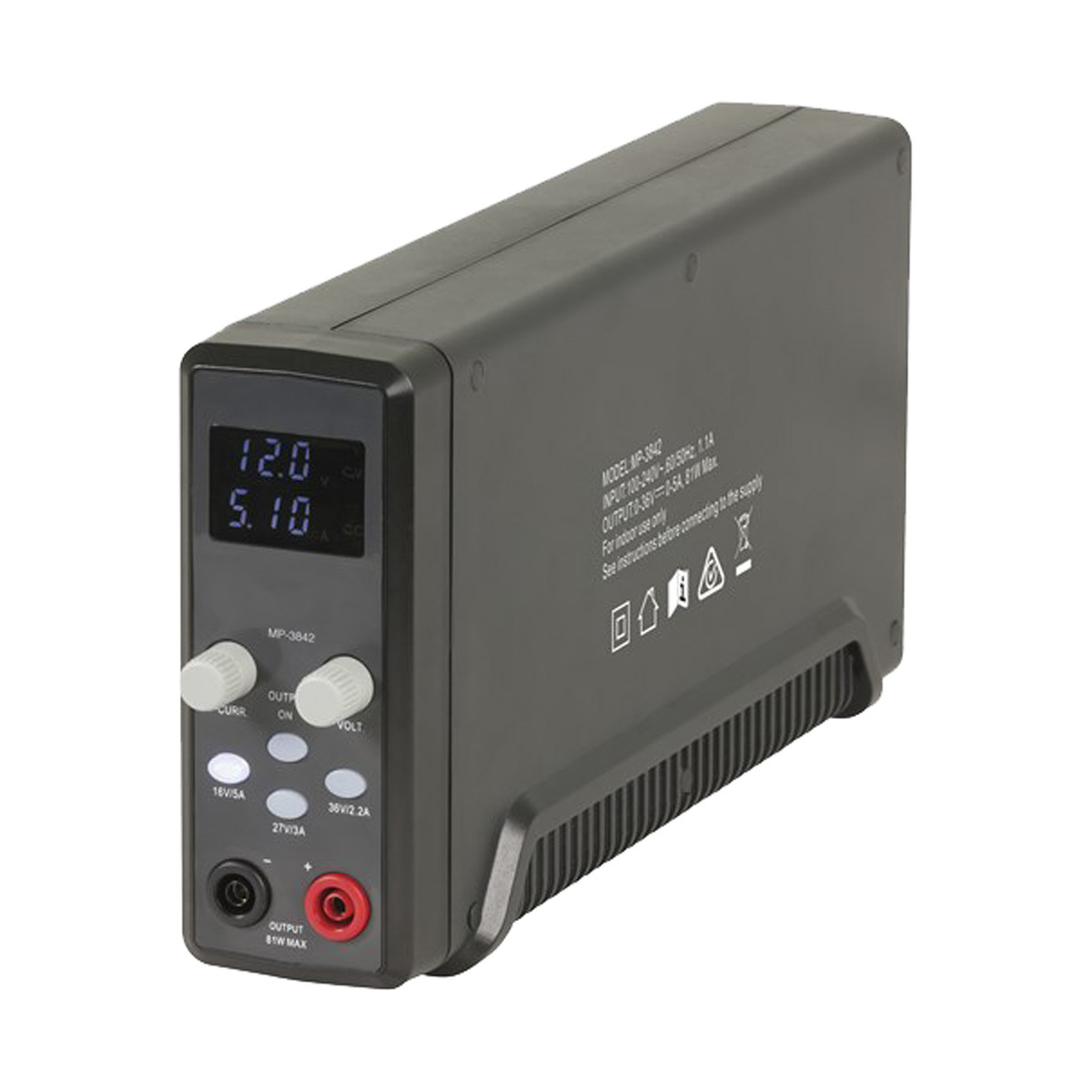

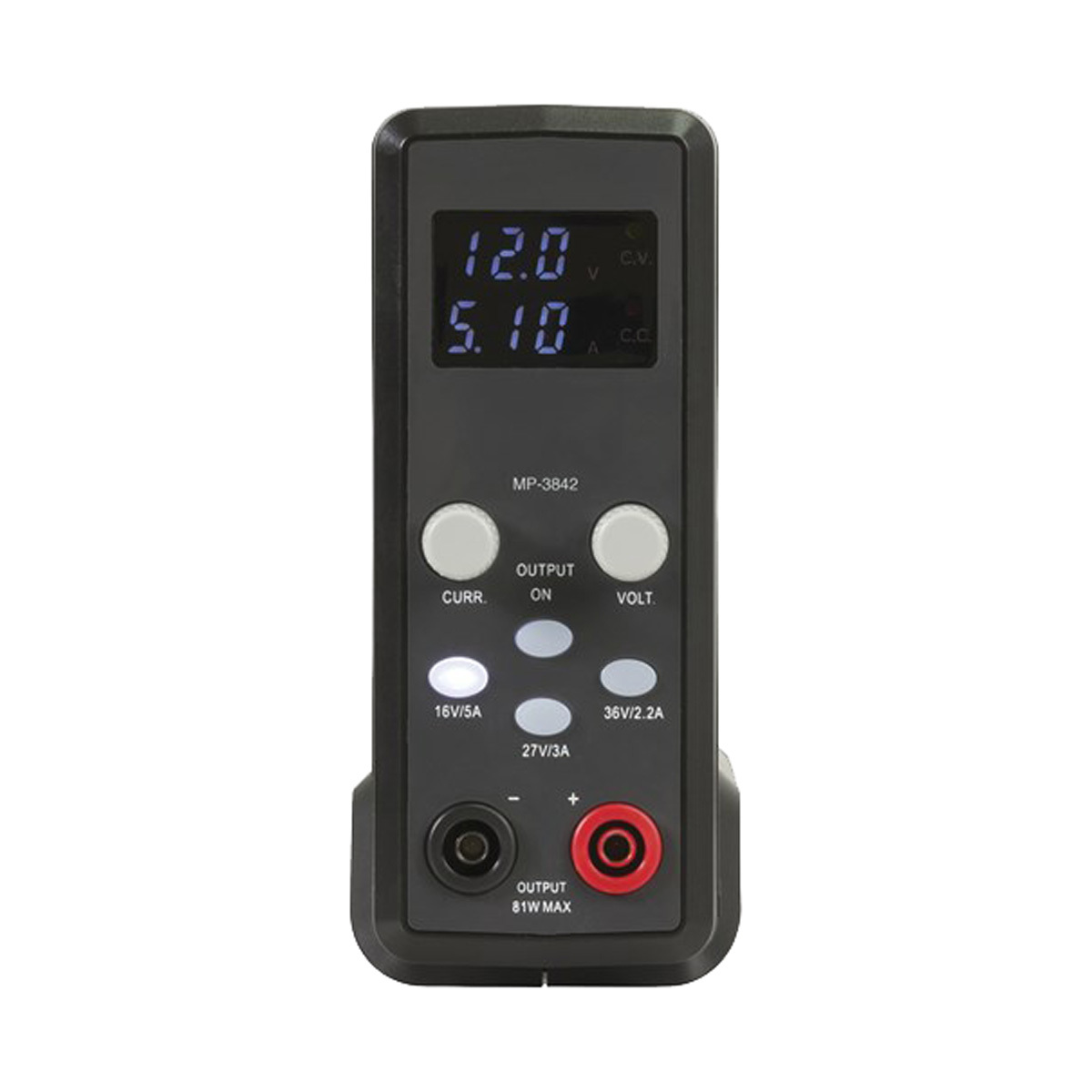

Constant Current Constant Voltage 80w Laboratory Benchtop Power Supply

Often in a workbench environment you don't need massive amounts of power, and your huge unit is under-utilised. This slimline power supply provides up to 80W of power, still plenty of grunt for many tasks. It provides constant current and constant voltage options. Simply select your power range, then adjust the controls to obtain your desired outputs. Ranges available are 0-16V @ 0-5A, 0-27VDC @ 0-3A, and 0-36V @ 0-2.2A. Output is provided via banana sockets which will accept insulated banana plugs. A powerful, compact unit for your workbench or mobile toolkit. Includes banana to alligator clamp leads.

Features:

Constant current / constant voltage options
Up to 5A current
Compact design

Specifications:

Input Voltage: 100-240VAC @ 50/60Hz
Output Voltage: 0-16VDC 0-5A (Max), 0-27VDC @ 0-3A (Max), 0-36VDC @ 0-2.2A (Max
Output Power: 80W Max.
Weight: 886g
Dimensions: 53(W) x 300(D) x 138(H)mm

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
