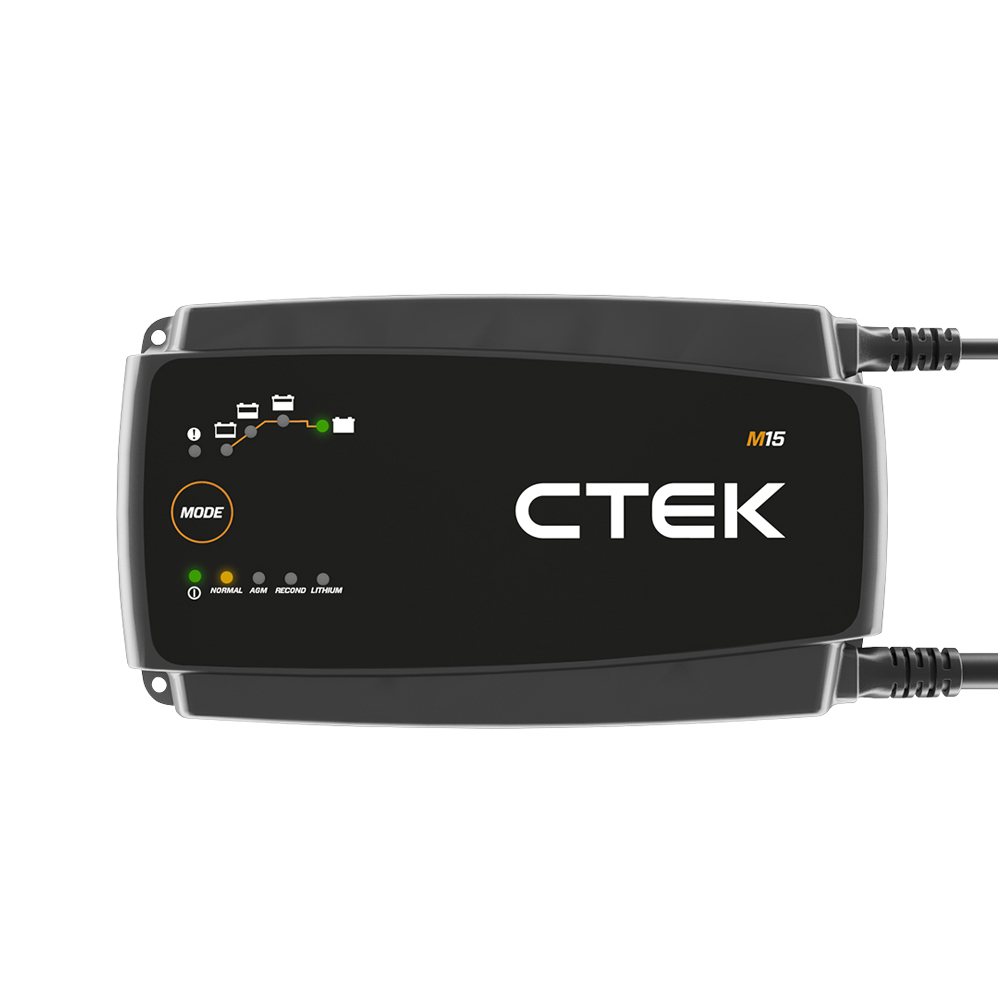

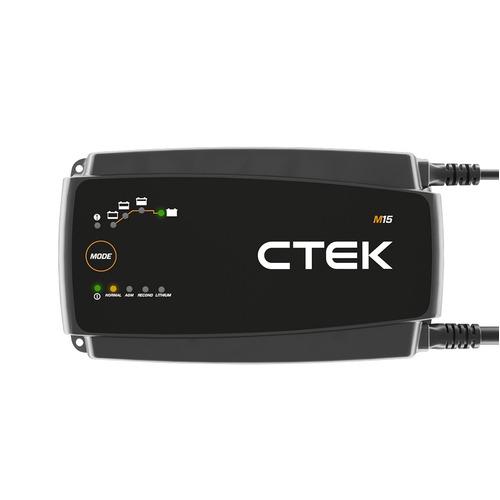

CTEK M15 - 12v 15a 8 Stage Marine Lead Acid Battery Charger

The CTEK M15 is the ultimate charger for mid to large size boats with a 12v battery system. The M15 features state of the art 8 stage charging process, providing 15amps maximum charge output, the CTEK M15 is suitable for batteries between 28-280ahr batteries as well a maintaining up to 500ahr batteries. Now also compatable with modern LiFePO4 batteries.

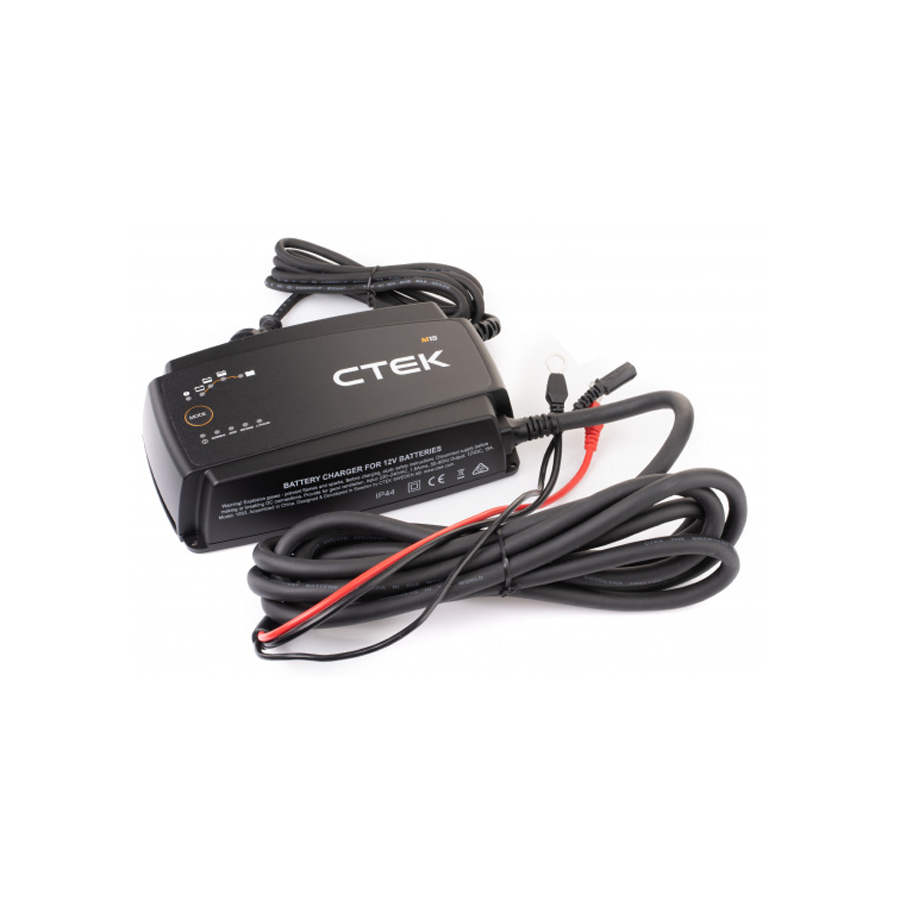

The M15 has a long secondary cable with included temperature sensor, allowing for permanent installations for an ultimate charging solution irrespective of the weather conditions.

The M15 adopts CTEK's patented recondition mode. Reviving deeply discharged batteries, which can be an issue after a long day at sea. If you intend to say overnight on board, it is possible to switch the charger to night mode for silent charging.

The CTEK M15 battery chargers offer IP44 classification, which means the charger is suitable for outdoor use. The M15 does not have any galvanic currents and is fully compatible with the boats electronics. With the addition of reverse polarity protection, short circuit protection and no sparks, the CTEK M15 marine battery chargers is an essential companion for any marine enthusiast.

Specifications:

Input Voltage: 220-240v AC 50-60Hz
Charging Voltage Normal: 14.4v
Charging Voltage AGM: 14.7v
Charging Voltage Lithium: 13.8v
Charging Voltage Recondition: 15.8v
Min Battery Voltage: 2.0v
Charging Current: 15a Max
Back Current: <1ah / Month
Ripple: <4%
Charge Type: 8 Stage, fully automatic
Battery Types: Lead Acid and now LiFePO4 Batteries (Wet, MF, Ca/Ca, AGM, Gel and LifePo4)
Battery Capacity: 28-280ah and up to 500ah for Maintenance
Insulation Class: 1P44
Dimensions: 235 x 130 x 65
Weight: 2.2 Kg

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
