Daqo 12v 160w Polycrystalline Solar Panel

$309.00
In Stock
Not available for pickup. Item shipped between 2-4 days.


Calculate Shipping

Founded over 50 years ago and now regarded as the Chinas largest manufacturer of solar panels. Daqo PV panels are a staple within both consumer and commercial solar installations worldwide.

Their end consumer range is available in 10w-160w power rating and ideal for DIY installations for RV, caravans, huts, marine and much more.

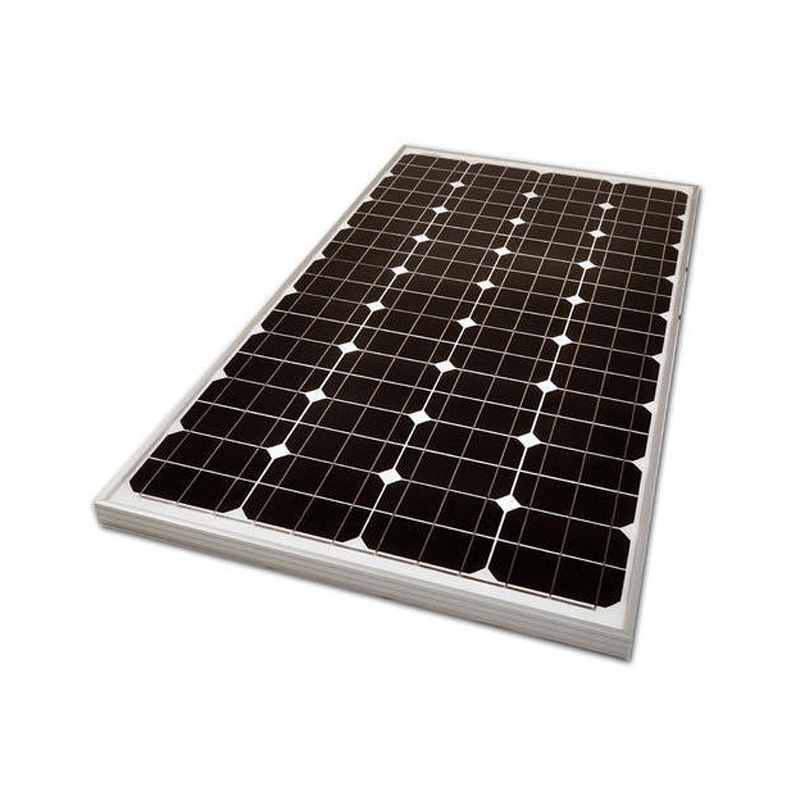

Please note that the image provided in this product listing is for a generic Daqo panel.

Features:

Positive power tolerance 0-+5w
Withstand strong snow load 5400 Pa
Wind load 2400pa
Excellent low light performance
Ammonia and salt resistance

Specifications:

Peak Power (Pmax): 160w
Weight: 11.8kg
Dimensions: 1480 x 670 x 35mm
Maximum Power Voltage (Vmp): 18.81v
Maximum Power Current (Imp): 8.51a
Open Circuit Voltage (Voc): 22.56v
Shorty Circuit Current (Isc): 8.51a
Maximum System Voltage: 1000v DC

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(DAQ02)

SKU DAQ02
Model # DQ160P
Brand

Daqo

1 year warranty for materials and workmanship
20 years warranty for at least 80% output

Warranty void if:
Panel has been installed correctly and to manufacturer specification
Panel has had any signs of impact or physical damage
Manufacturers polarity and wiring instructions have not been followed
