Daqo 12v 20w Polycrystalline Solar Panel
Founded over 50 years ago and now regarded as the Chinas largest manufacturer of solar panels. Daqo PV panels are a staple within both consumer and commercial solar installations worldwide.
Their end consumer range is available in 10w-160w power rating and ideal for DIY installations for RV, caravans, huts, marine and much more.

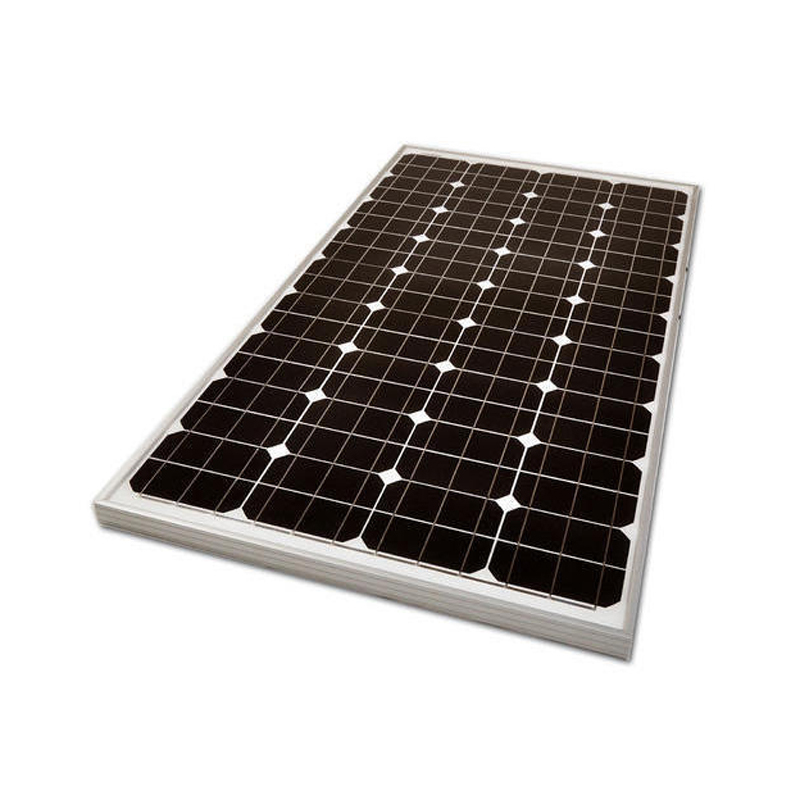

Please note that the image provided in this product listing is for a generic Daqo panel.
Features:
Positive power tolerance 0-+5w
Withstand strong snow load 5400 Pa
Wind load 2400pa
Excellent low light performance
Ammonia and salt resistance
Specifications:
Peak Power (Pmax): 20w
Weight: 1.58kg
Dimensions: 350 x 490 x 25mm
Maximum Power Voltage (Vmp): 17.8v
Maximum Power Current (Imp): 1.12a
Open Circuit Voltage (Voc): 21.88v
Shorty Circuit Current (Isc): 1.19a
Maximum System Voltage: 1000v DC
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(DAQ03)
| SKU | DAQ03 |
| Model # | DQ20P |
| Barcode # | 2000000006512 |
| Brand |
1 year warranty for materials and workmanship
20 years warranty for at least 80% output
Warranty void if:
Panel has been installed correctly and to manufacturer specification
Panel has had any signs of impact or physical damage
Manufacturers polarity and wiring instructions have not been followed
