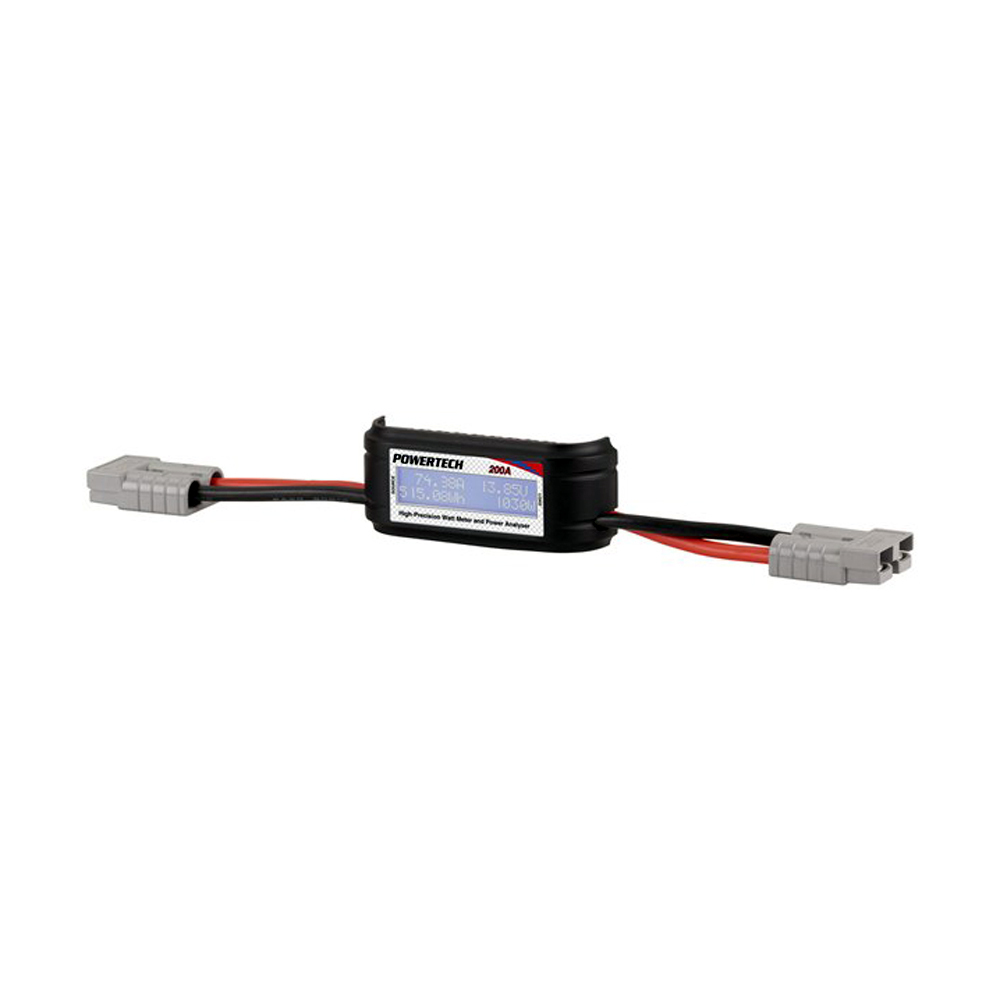

DC Voltmeter, Ammeter Wattmeter up to 200a with Anderson Plug

Essential in any power system trouble shooting, this universal power meter has a mammoth rating of up to 200a (pulse). It can sit in between components and provide you real time data of current, voltage, wattage, ahr, peak volts, peak amperes and much more.

View health an performance of batteries, pin point trouble spots, check solar panel efficiency and much more.

Idea for general DIY and a must for the auto electrical or RC hobby fan.

This model is terminated with Anderson connectors. The same meter is also available as bare ends for a slightly lower price.

Applications:

Place the unit in between solar panel and regulator to see incoming power.
Use the meter in between battery and power source to see power consumption.
Use the meter in between battery an charger to view incoming charge current.
Compare different parts of your RC setup. Motor, battery ESC etc.
Endless useful possibilities!

Specifications:

Current Rating: 75A continuous / 200A Max
Current: 0-200A @ 0.01A Resolution
Voltage: 4.8-60VDC @ 0.01V Resolution
Power: 0-6554W @ 0.1W Resolution
Watt Hours: 0-650kWh @ 0.1Wh Resolution
Ampere Hours: 0-6554Ah @ 0.01Ah Resolution
Cable: 8AWG
Display: 16 x 2 backlit LCD Display

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
