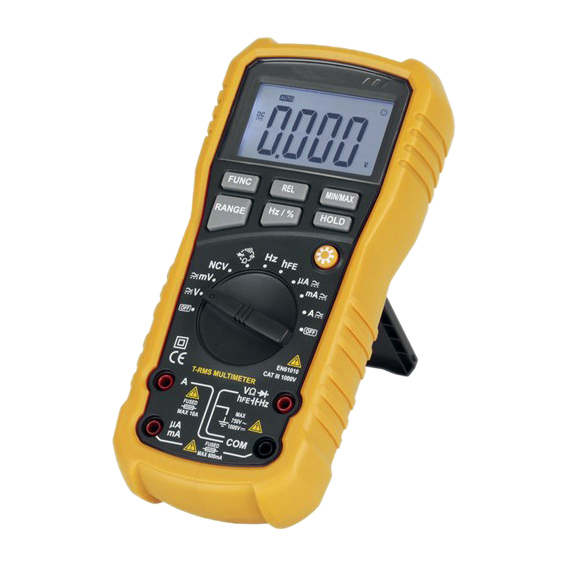

Our top pick for an entry level digital multimeter (DMM) for the beginner and general electronics enthusiast. This entry level multimeter offers all basic features you need to get starter. Every tool kit needs a multimeter!
Mr Positives economy range of true RMS multimeters are ideal for technicians, trade or DIY. They are accurate and feature a huge range of features to tackle almost any task at a fraction of the price!
Features:
Non-Contact Voltage Detection
Overload Protection
AC/DC Voltage
AC/DC Current
Resistance
Diode Test
Continuity
Capacitance
Frequency
Transistor hFE
Data Hold
LINE Test
Max/Min
Backlight
Auto Power Off
Specifications:
Display: 4000 Count
Security Class: Cat III 1000V
Basic DCV Accuracy: 1.500%
DC Voltage: 40mV, 400mV, 4000mV, 40V, 400V, 1000V
AC Voltage: 40mV, 400mV, 4000mV, 40V, 400V, 750V
DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A
AC Current: 400µA, 40mA, 400mA, 4A, 10A
Resistance (Ohm): 400, 4k, 40k, 400k, 4M, 40M
Capacitance: 10nF, 100nF, 1µF, 10µF, 100µF, 1mF, 10mF, 100mF
Frequency: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz
Input Impedance: 10 Mega Ohm
Battery Type: 1 x 9v
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(DMM05)
| SKU | DMM05 |
| Barcode # | 9319236676158 |
