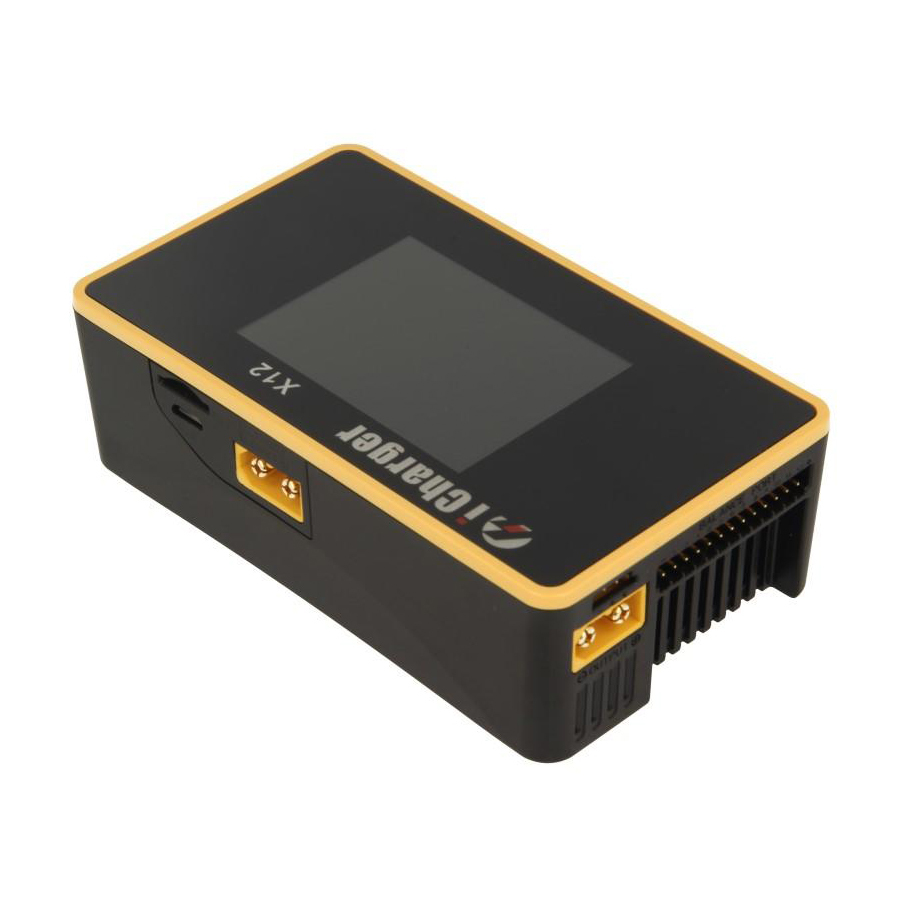

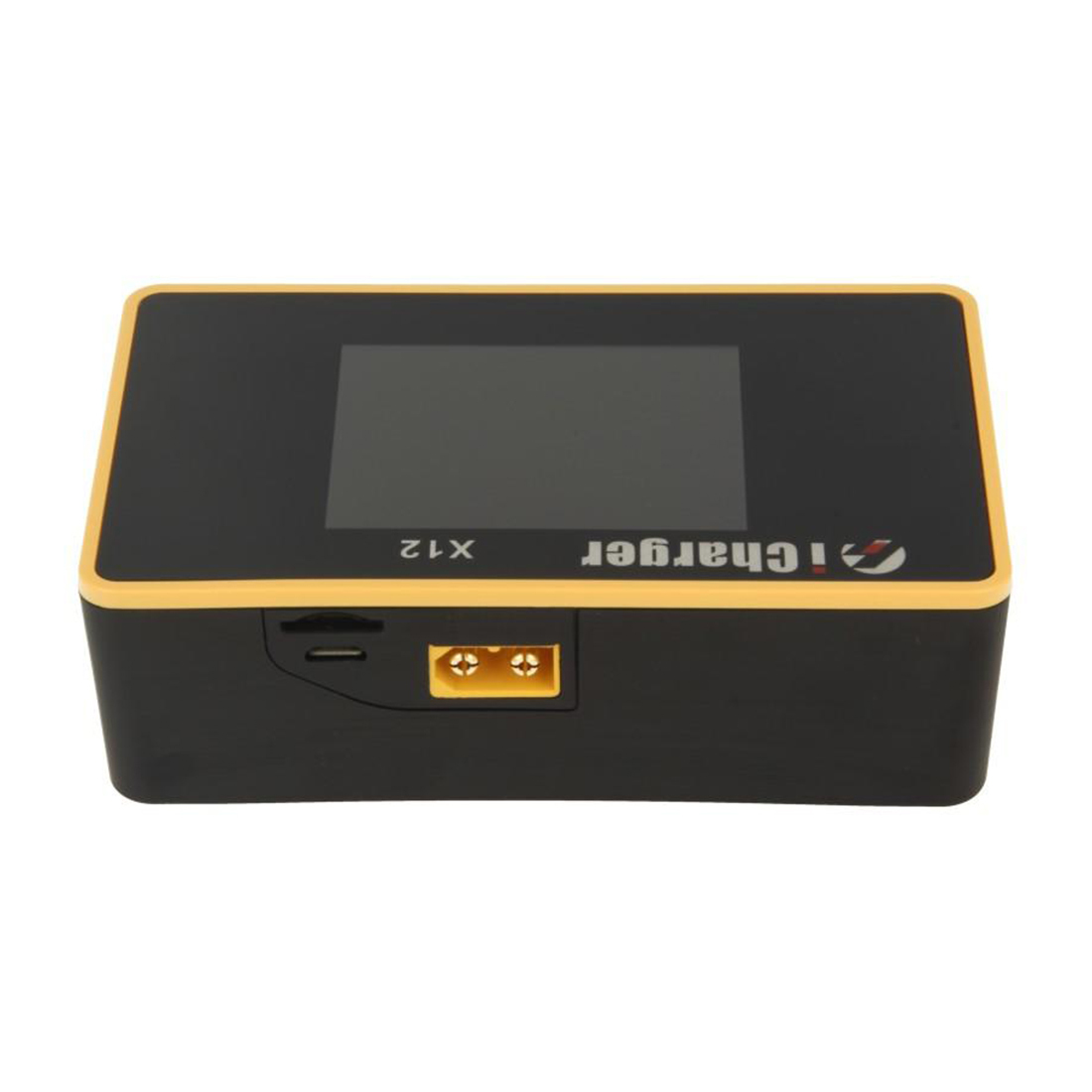

The new iCharger X12 is one step forward on iChargers new modern battery charger form factor. Adding up to 12 cell balance charging on its single output for larger battery pack balancing or monitoring.

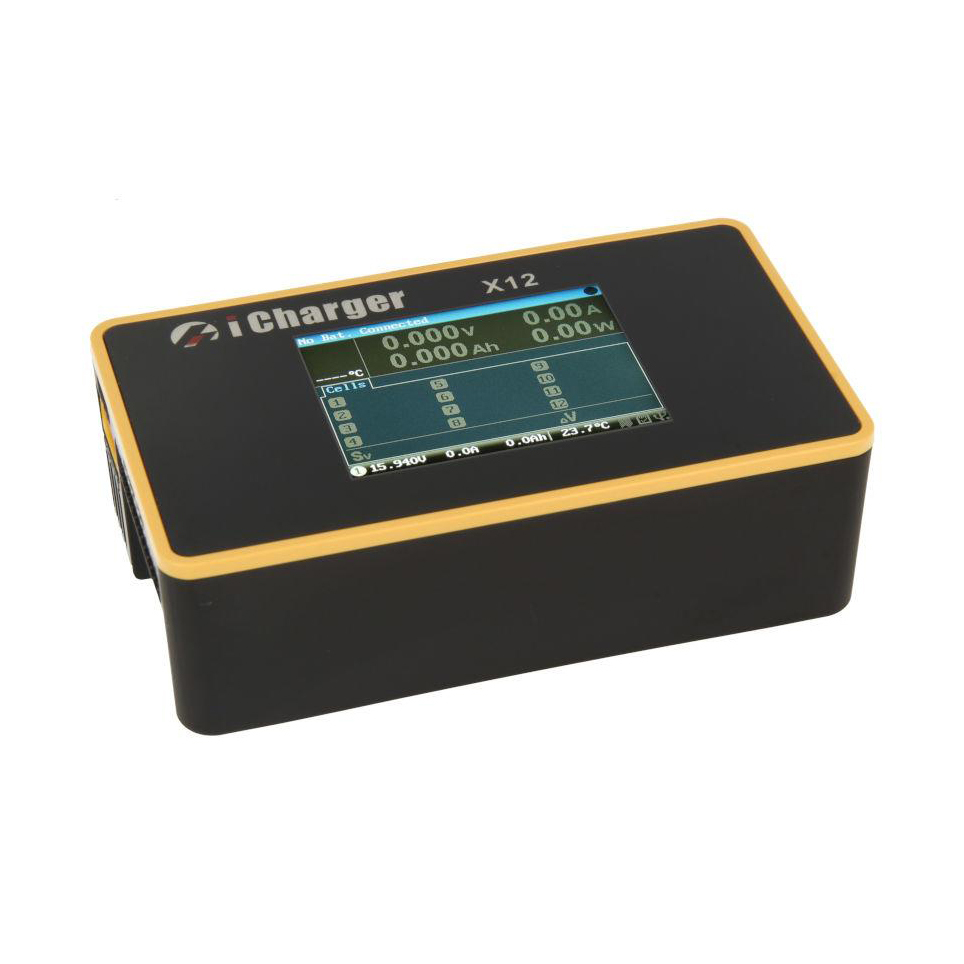

The unit's large LCD screen provides numerous metrics on battery charge state, per cell voltage as well as all necessary input and output power variables.
The new iCharger user interface has been improved for better usability, battery data logging as well as easier firmware upgrades.
All iChargers are DC powered which makes them considerably lighter and able to be powered from a wider input voltage range. Which can include another battery!
Compatible with modern Lithium based batteries, traditional NIMH (or NiCD) as well as Automotive lead acid batteries.
The iCharger is the essential battery management system at the heart of any portable power solution!
Features:
12s balancing compatible
2a balance charge current for faster balancing
Large LCD screen
1100w max power
Wide input voltage range
Firmware upgradable
30a charge and discharge (external) max power
Compatible with nearly all battery chemistries
XT60 Input and output socket
Micro SD Card Slot
Specifications:
Input Voltage (DC Only): 11-35v DC
Max Charge Power: 1100w
Max Charge Current: 30a
Max Discharge Current: 30a (external)
Charge Charge / Discharge Range: 0.1-30a
Max Input Current: 35a
Max Internal Discharge Power: 50w
Max External Discharge Power: 1100w
Max Balance Current: 2a
Li-Ion Cell Count: 1-12s (3.6v - 43.2v)
LiFePO4 Cell Count:: 1-12s (3.3v - 39.6v)
Lipo Cell Count: 1-12s (3.7v - 44.4v)
LIHV Cell Count: 1-12s (3.8v - 45.6v)
LTO Cell Count: 1-12s (2.4v - 28.8v)
NiMH / NiCD Cell Count: 1-32s (1.2v - 38.4v)
NIZN Cell Count:1-12s (1.6v - 19.2v)
Lead Acid (PB) Cell Count: 1-20s (2v - 40v)
Input Power Socket: XT60
Output Power Socket: XT60

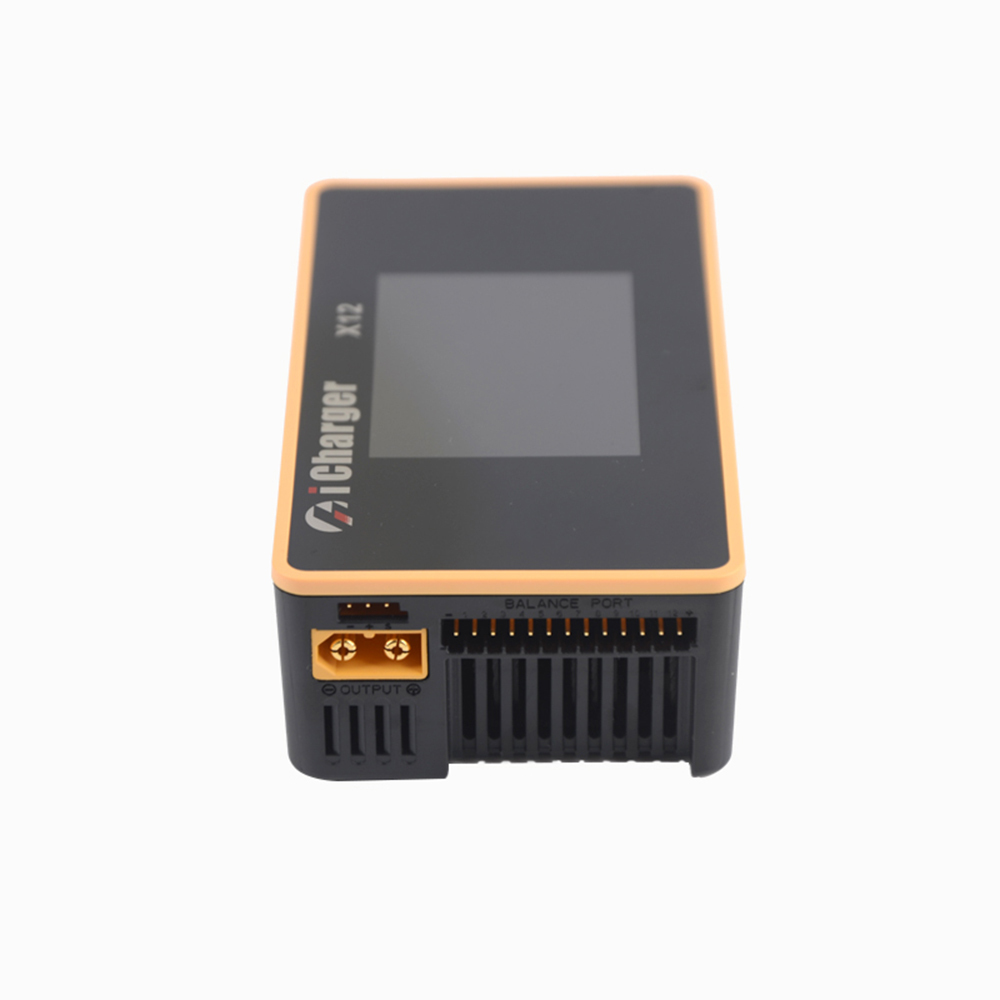

Balance Socket: 12s (13 pin) standard JST-XH Type
Dimensions: 112mm x 64mm x 37mm
Weight: 230g
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(X12)
| SKU | X12 |
| Model # | X12 |
| Barcode # | 2000000008301 |
