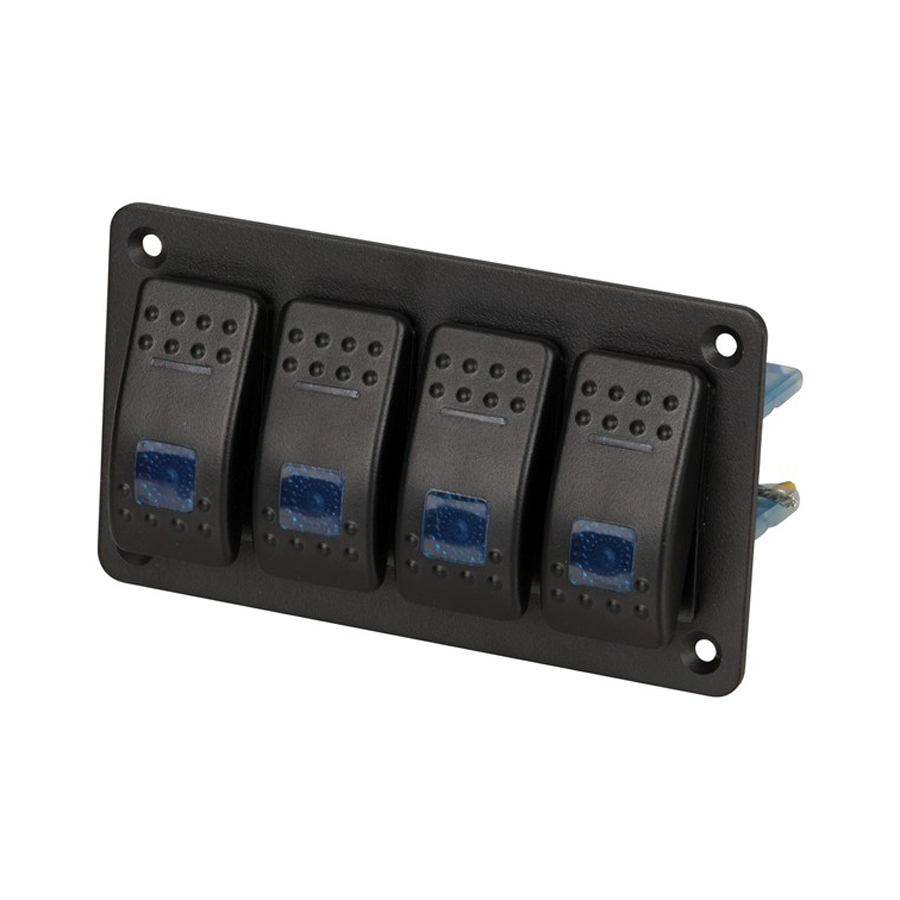

Illuminated 4 Way Blue Rocker Switch Panel

Simple to use and install. Switch is rated a 20a for 12v systems and 10a for 24v systems. Maximum of 45a per panel. The integrated blue LED’s are powered separately. Allowing for these to be powered by a separate switch and or dimmer.

Specifications:

Switch Rating: 12VDC @ 20A, 24VDC @ 10A
Panel Rating: 45A
Illumination Colour : Blue
Illumination Position : Top
Width: 70.0mm
Height: 124.0mm
Weight: 195.0g
Square Mount Hole Width: 42.0mm
Square Mount Hole Height: 105.0mm
Switch Type: Rocker
Switch Function: Locking On/Off
