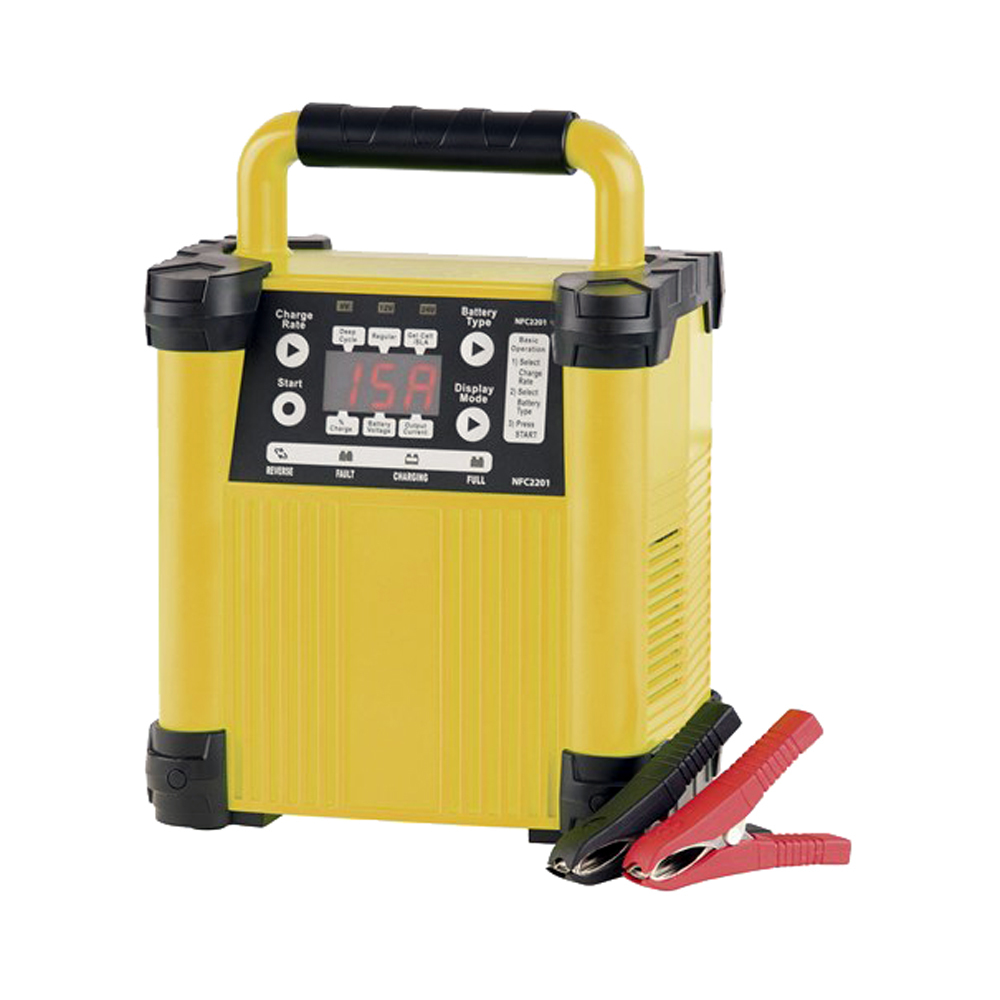

Intelligent 6-24v Lead Acid Battery Charger

Multi stage charger suitable for 6v, 12v or 24v batteries. Ideal battery charging solution for caravans that usually have multiple 6v batteries in a bank. This unit allows for charging of individual batteries or the whole 12v / 24v bank.

This unit has a maximum power rating of 50a and is suitable for deep cycle (and starting) batteries between 40-200ahr.

The microprocessor controlled unit provides 4 stages of charging, Soft Start, Bulk Charge, Absorption and Float which assists in the batteries life expectancy and performance. An auto detection feature provides a user friendly experience, which can be pre-programmed or manually set for greater control. Should a blackout occur or AC input power be lost during a charging operation the memory function will resume charging once power is re-established. Other features include temperature/voltage compensation, reverse polarity/short circuit protection and a battery status indicator. Ideal for cars, motorcycles, caravans and boats with battery capacities between 20-200Ah. It's also ultra-portable with a handy storage pocket in the back for the leads.

Features:

Memory function
Temperature controlled fan
LED battery status display
Temperature and voltage compensation
Reverse Polarity Protection

Specifications:

Width: 170.0mm
Height: 230.0mm
Depth: 140.0mm
Rated for AU Main : true
AC Voltage: 240.0
Input: 220 - 240VAC, 300W
Charger Output Voltage: 6.0V, 12.0V, 24.0V
Current Output 12v: 15a
Current Output 6v/12v/24: 2a
Current Output 12v/24v: 7a
Connection Type: Alligator Clips
