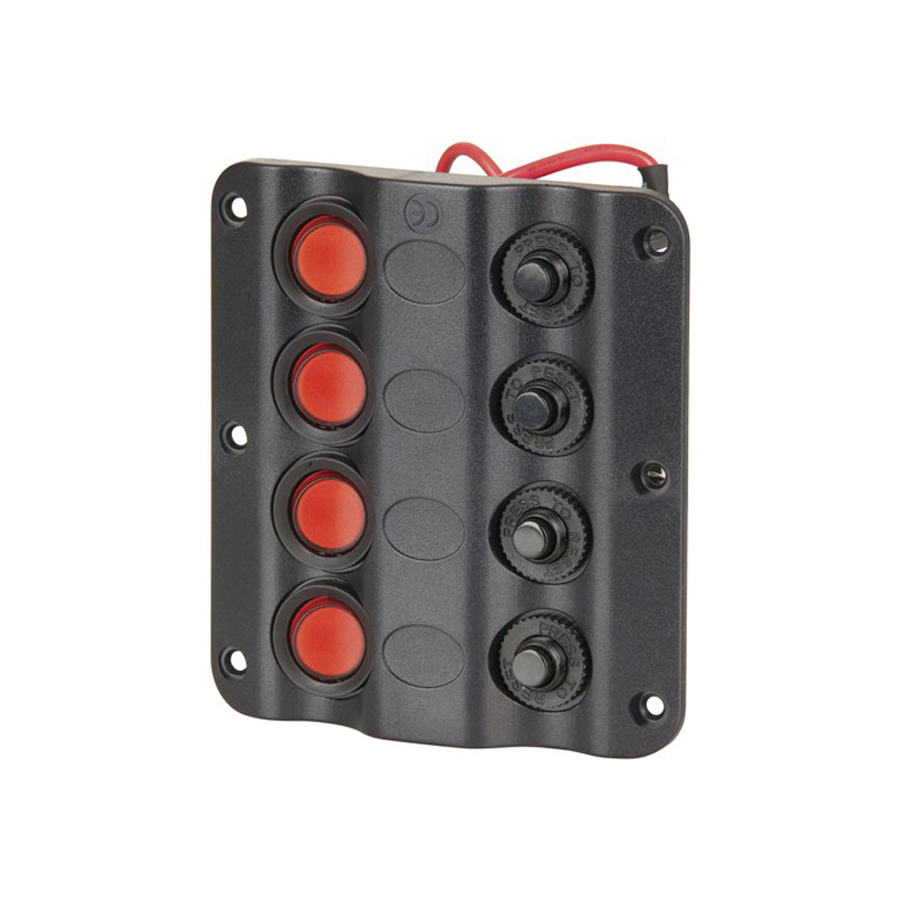

Marine 4 Way Switch Panel and Circuit Breaker

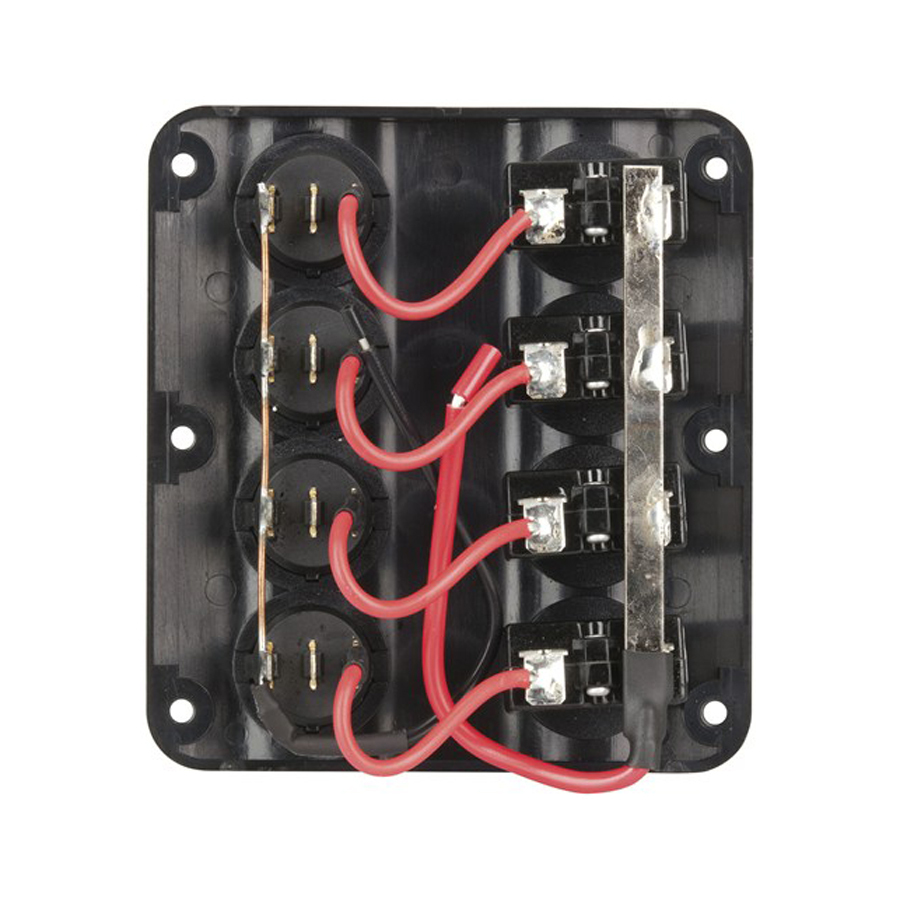

This panel measures 100 x 110 overall and can be mounted either vertically or horizontally. The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector. They are then soldered to a 10A rated illuminated rocker switch. The rocker switches have 4.8 QC tabs and are single pole type. The circuit breakers are rated at; 10A, 8A, 6A and 4A.

There is a negative common bus to the switches which when connected, enables the actuator to glow red when on.

We also carry a 6 way version of this same switch panel.

Specifications:

DC Current Rating: 35A
DC Voltage: 12V
Type: Incandescent
Illumination Colour: Red
Width: 100.0mm
Height: 110.0mm
Depth: 45.0mm
Attachment / Securing Method: Screw Down
Square Mount Hole Width: 76.0mm
Square Mount Hole Height: 97.0mm
Switch Type: Rocker
Pole Throw Type: SPST
Poles / Contacts: 1.0 pole
Switch Connection: Spade Terminals
Mechanism Material: ABS Plastic (Acrylonitrile Butadiene Styrene)
Number of Switches: 4.0pc
Individual Circuit Breakers: 10.0A

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
