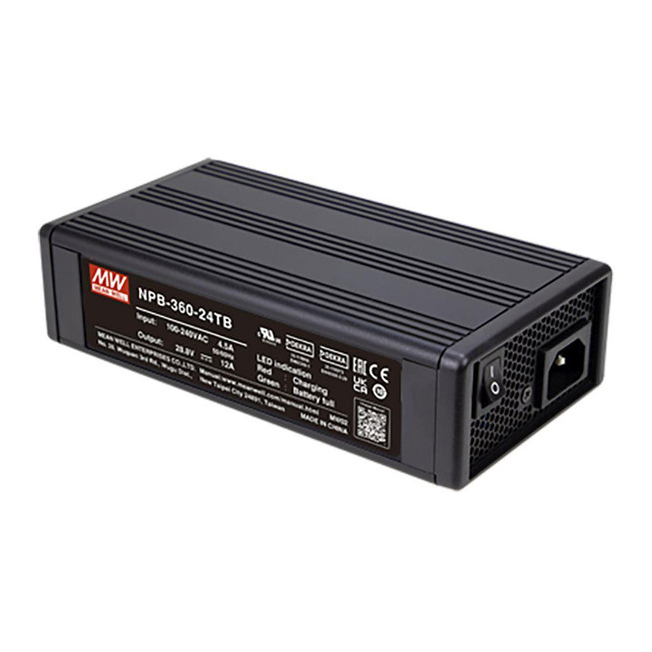

MeanWell 24v 12a 360w Battery Charger

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

MeanWell PB series 24v 12a battery charger for mobility scooters and small scale electric vehicles. This charger is terminated with screw in style terminal block. Allowing for your own custome battery lead or permanent installation situations.

The charger is single output providing 28.8v for charging 24v lead acid batteries or battery banks.

Features:

Built-in passive PFC function compliance to EN61000-3-2
With AC ON-OFF switch
3 poles AC inlet with fuse holder
Protections: Short circuit / Overload / Over voltage / Over temperature
2 colour LED loading indicator

Specifications:

Output Voltage: 28.8v
Rated Current: 12a
Power Rating: 360w
Charging Type: 3 Stage
Input Voltage: 80-264v AC
Output Connecyor: Screw in Terminal
Dimensions: 180mm x 96mm x 49mm

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(MPWEL223)
