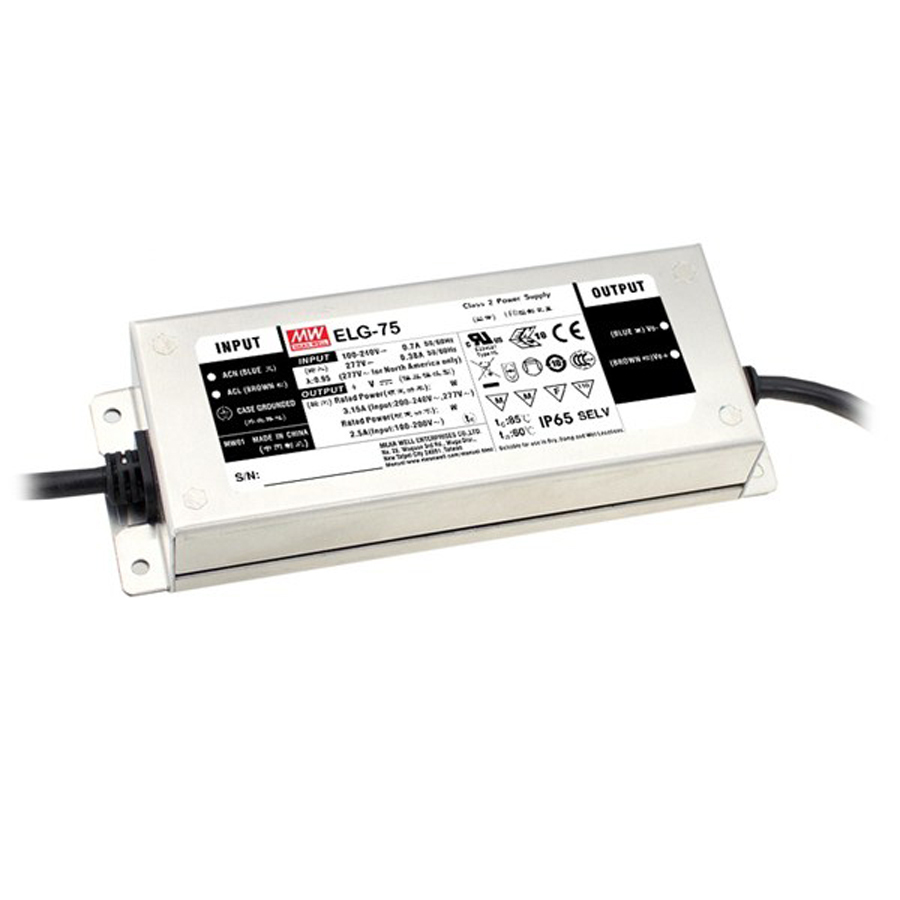

MeanWell 24v 3.15a 75w IP67 Dimmable CC or CV LED Driver

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Dual mode constant voltage and constant current output. The MeanWell ELG series operate from a wide input voltage and are available in a variety of output voltages and ratings. Offering exceptional efficiency, the MeanWell ELG series are ideal solution for powering LED street lighting, architectural lighting, bay lighting, flood lights and much more.

Housed in durable metal casing with IP67 or IP65 rating for indoor or outdoor use.

Features:

Constant voltage and constant current mode
Metal housing with functional ground
Built in PFC function
IP67 / IP65 rating for indoor or outdoor installations
Output adjustable via potentiometer
3 in 1 dimming

Specifications:

Output Voltage: 24v
Constant Current Output Voltage Range: 12-24v
Rated Current: 3.15a
Rated Power: 75w
Input Voltage Range: 100-305v AC
Dimensions: 180 x 63 x 36
Weight: 0.8kg

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(MWLED07)
