MeanWell 48v 2.5a 120w PFC Power Supply

MeanWell's PFC fully enclosed fan less power supplies are suitable for telecommunication, specilaised IT components and industrial equipment. All MeanWell PFC power supplies feature integrated short circuit, overload, overcharge and over temperature protection.

Available in a variety of ratings, voltages and with either DC style connector or 4 pin din style connector.

Features:

Universal full range AC input
3 pole IEC320-C14 AC inlet
Built-in active PFC function
Level Vi energy efficiency level
Fully enclosed plastic housing
LED power indicator

Specifications:

DC Voltage: 48v DC
Rated Current: 2.5a
Rated Power: 120w
Input Voltage Range: 85-264v AC
Frequency Range: 47-63hz
Efficiency: 91%
Dimensions: 167 x 67 x 35mm
Output Plug: Din 4 Pin locking type / KYCON KPPX-4P

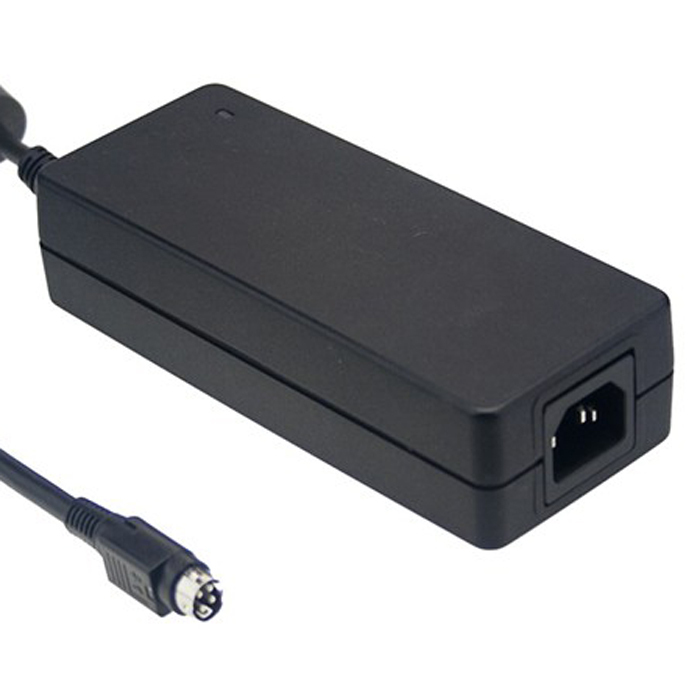

Please Note: Product image is only reference. MeanWell battery chargers and power supplies are not shipped with power cable. Mr Positive carries a wide range of power cables that can be purchased separately.

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
