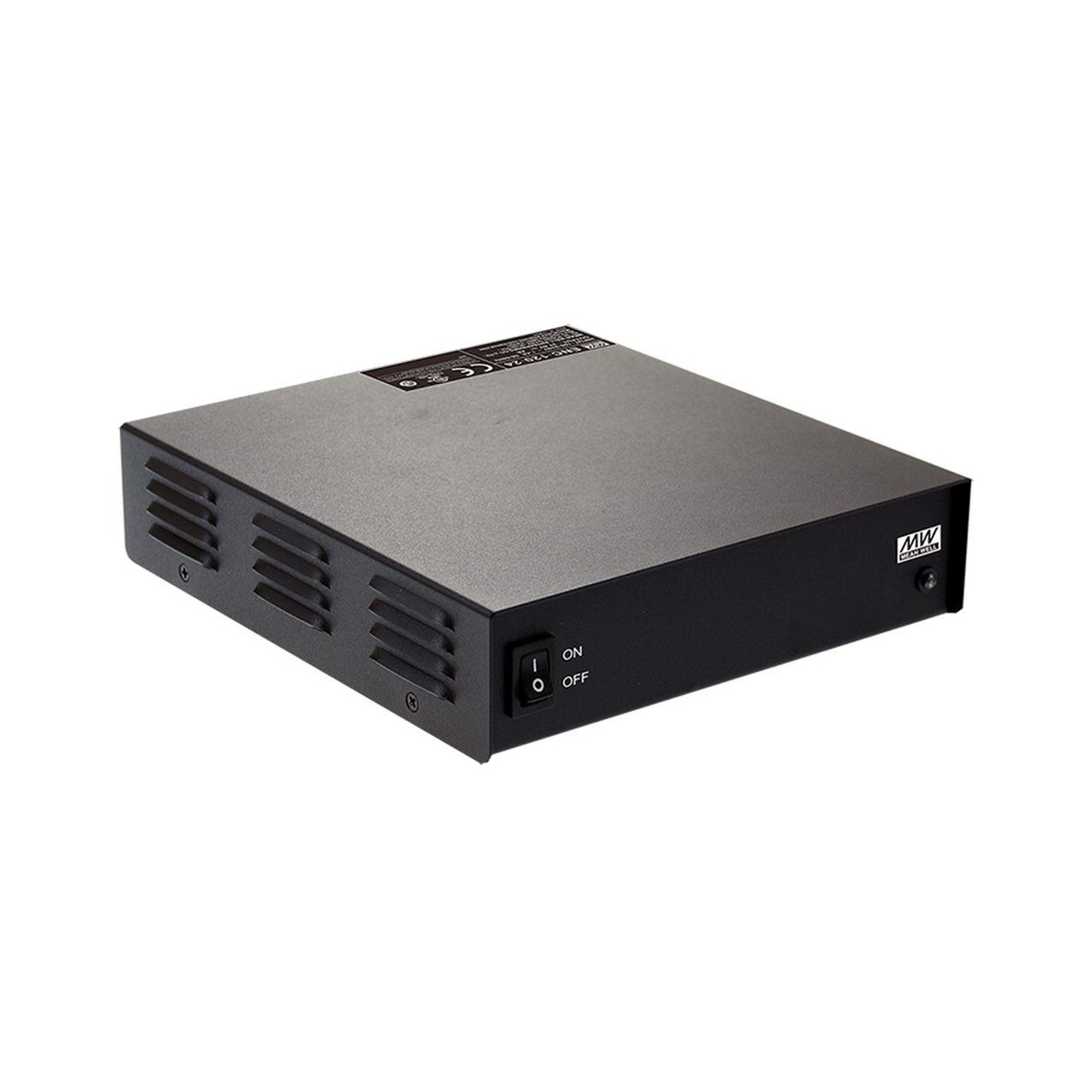

MeanWell 48v 4a 3 Stage Programmable Battery Charger

Calculate Shipping

Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

MeanWell ENC series are a desktop style industrial battery charger suitable for combination lead acid battery banks. The ENC series are compatible with conventional lead acid battery types. Including Flooded, GEL and AGM anatomy lead acid batteries.

The MeanWell ENC features 3 stages of programmable charging curve and built in PFC function.

The ENC features a dip switch jumper selectable output function that allows for precise programming depending on the type of battery being charged.

Specifications:

Input Voltage: 90-264v AC 47-63Hz
Battery Voltage: 48v
Boost Charge Voltage: 57.6v
Float Charge Voltage: 55.2v
Output Current: 4a
Rated Power: 230.4w
Dimensions: 192mm (L) x 178mm (W) x 46mm (H)
Weight: 1.23 KG

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.

(MPWEL208)
