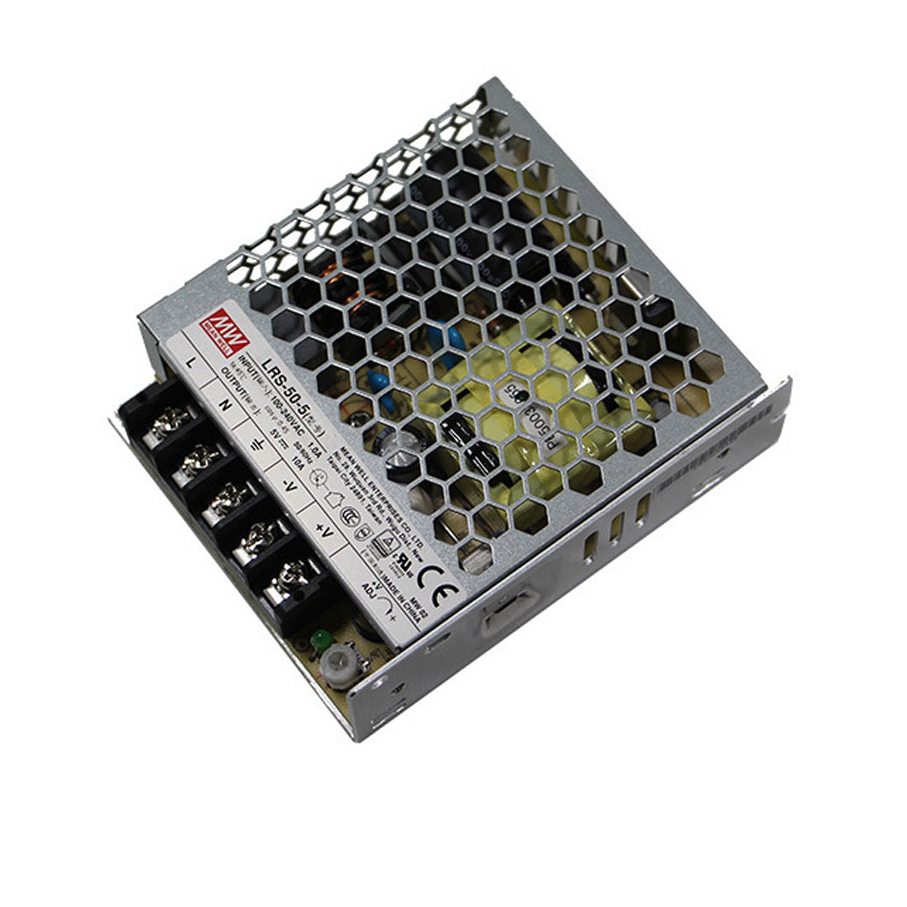

MeanWell LRS 5v 50w Power Supply Module

MeanWell LRS power supply modules are a great power solution for general DC power applications, Prototypes, DIY electronics, home automation and much more.

The LRS are an economical range available in a wide range of voltages and maximum power rating. Allowing you to match a power supply exactly to your project.

Features:

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on

Specifications:

Output Voltage: 5v
Rated Current: 10a
Power Rating: 50w
Series: LRS
Number of Outputs: 1
Input: 85-264v AC
Dimensions Length: 99mm (L) x 82mm (W) x 30mm (H)

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
