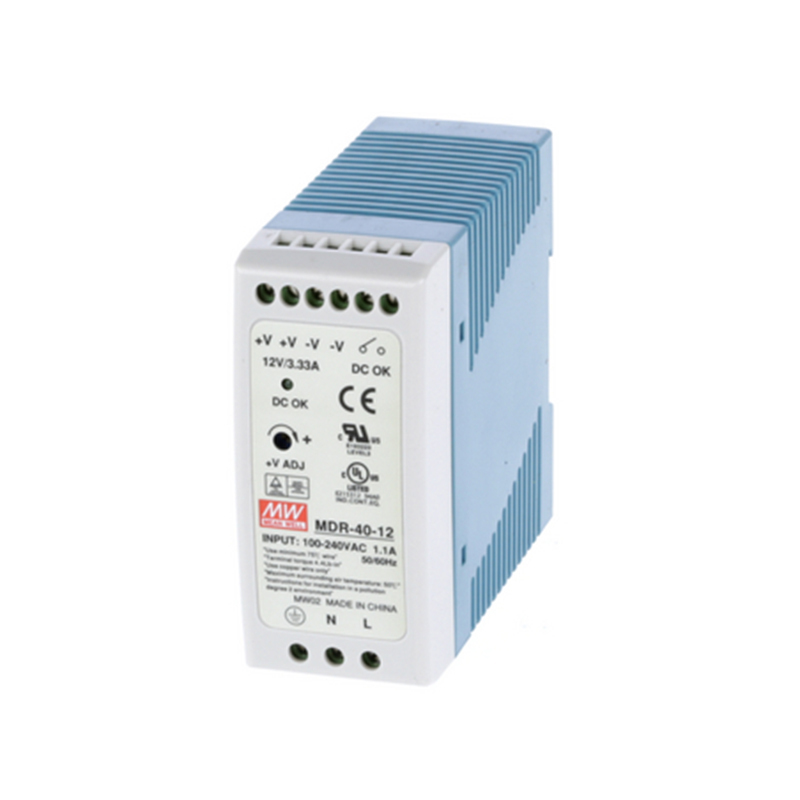

MeanWell MDR 40w 12v DIN Rail Power Supply
The MeanWell MDR range of DIN style power supplies are available in a wide range of voltages and power ratings. MeanWell DIN power supplies are an ideal power solution in telecommunication, security and computing.
They are compatible with standard DIN rail TS-35 / 7.5 or 15 DIN rails (available separately).
MeanWell DIN power supplies have short circuit, overload and overvoltage and over temperature protection.
Features:
Universal AC input / Full range
Cooling by free air convection
Can be installed on DIN rail TS-35 / 7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Specifications:
Output Voltage: 12v
Max Current: 3.33a
Power Rating: 40w
Series. MDR
Number of Outputs: 1
Input Voltage: 85-264v AC
Dimensions: 100mm (L) x 90mm (W) x 40mm (H)
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(MPWEL219)
| SKU | MPWEL219 |
| Model # | MDR-40-12 |
| Brand |
