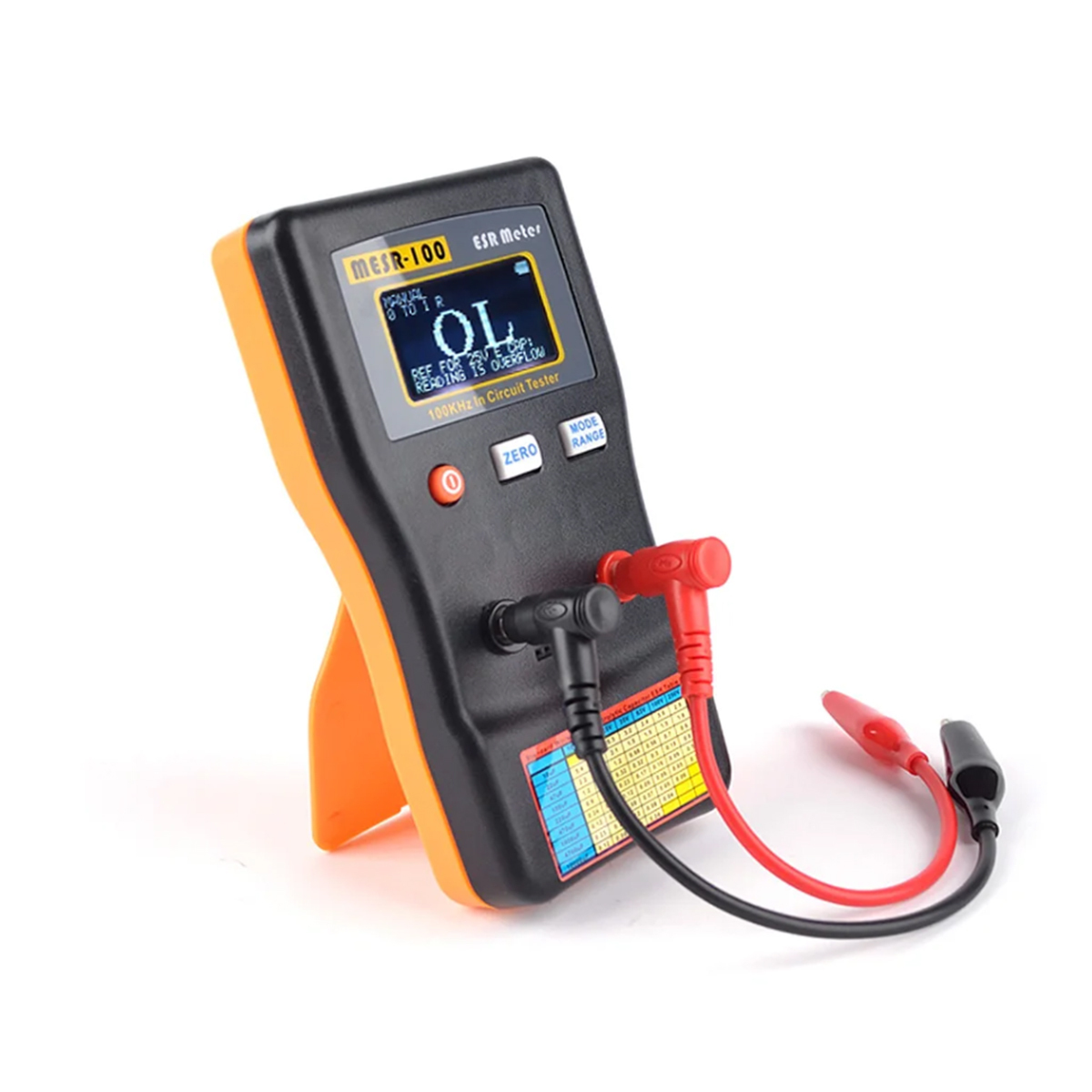

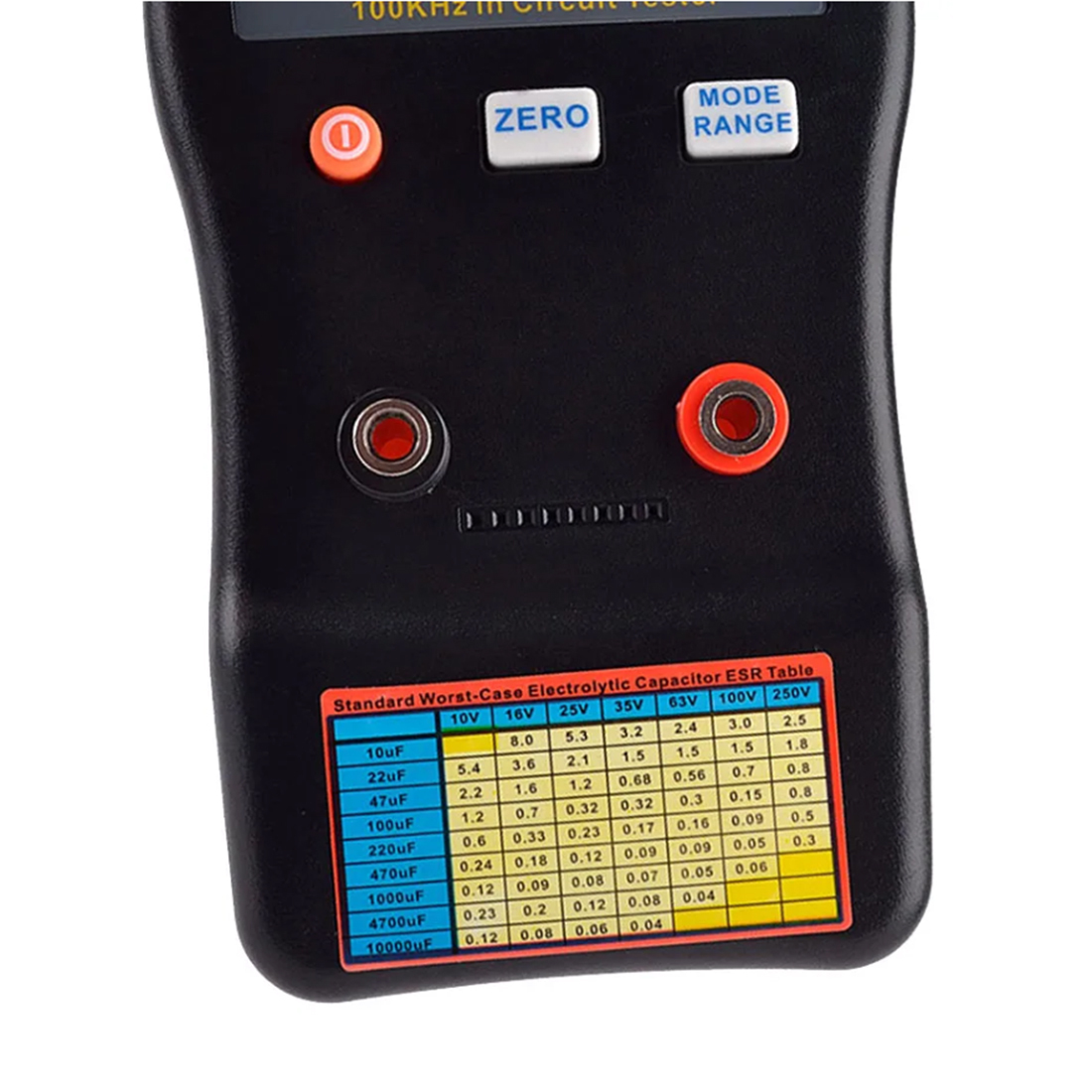

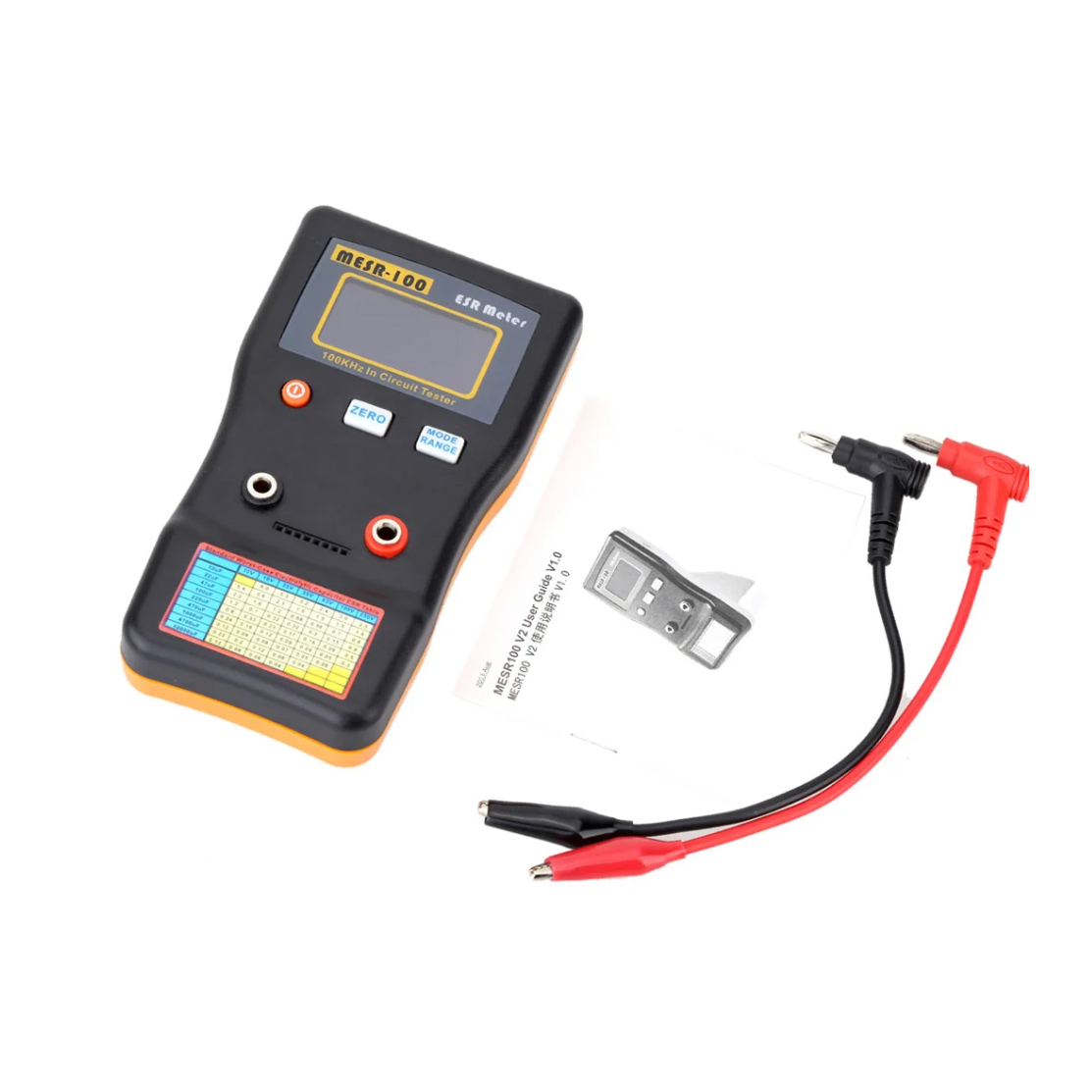

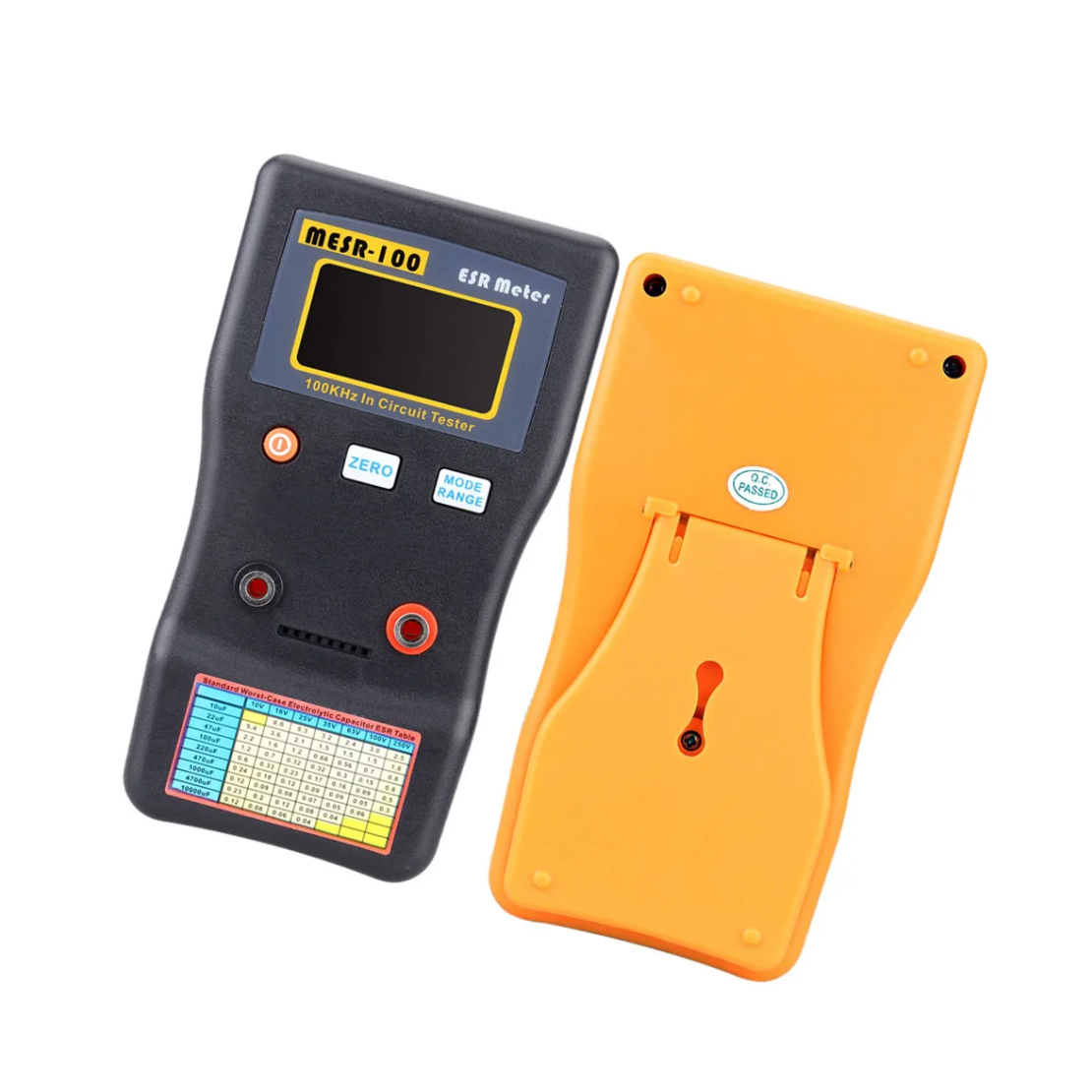

MESR-100 LCD ESR Meter with Alligator Clips

An ESR meter (Equivalent Series Resistance meter) is a valuable electronic measuring instrument primarily designed to assess the equivalent series resistance of real capacitors. Unlike traditional capacitance meters, which focus solely on capacitance values, an ESR meter provides deeper insights into a capacitor’s health.

ESR matters: Capacitors, especially electrolytic ones, exhibit an ESR that increases with age, heat, and ripple current. High ESR can cause equipment malfunctions or even permanent damage.

Faulty capacitors often bulge, leak, or overheat. However, visually perfect capacitors may still have high ESR, detectable only through measurement.
While precise ESR measurement isn’t always necessary, it’s crucial for critical applications. ESR varies with frequency, voltage, and temperature, so accurate measurements require specific conditions.

ESR meters can also measure non-inductive low-value resistances, making them useful beyond capacitors. Unlike other meters, ESR meters can assess capacitors without disconnecting them from the circuit, saving time and effort.

Specifications:

Accuracy: Up to 1%
Wide Measurement Range: >1uF
High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range
Measuring voltage: <～40mV RMS (TESTING VOLTAGE)

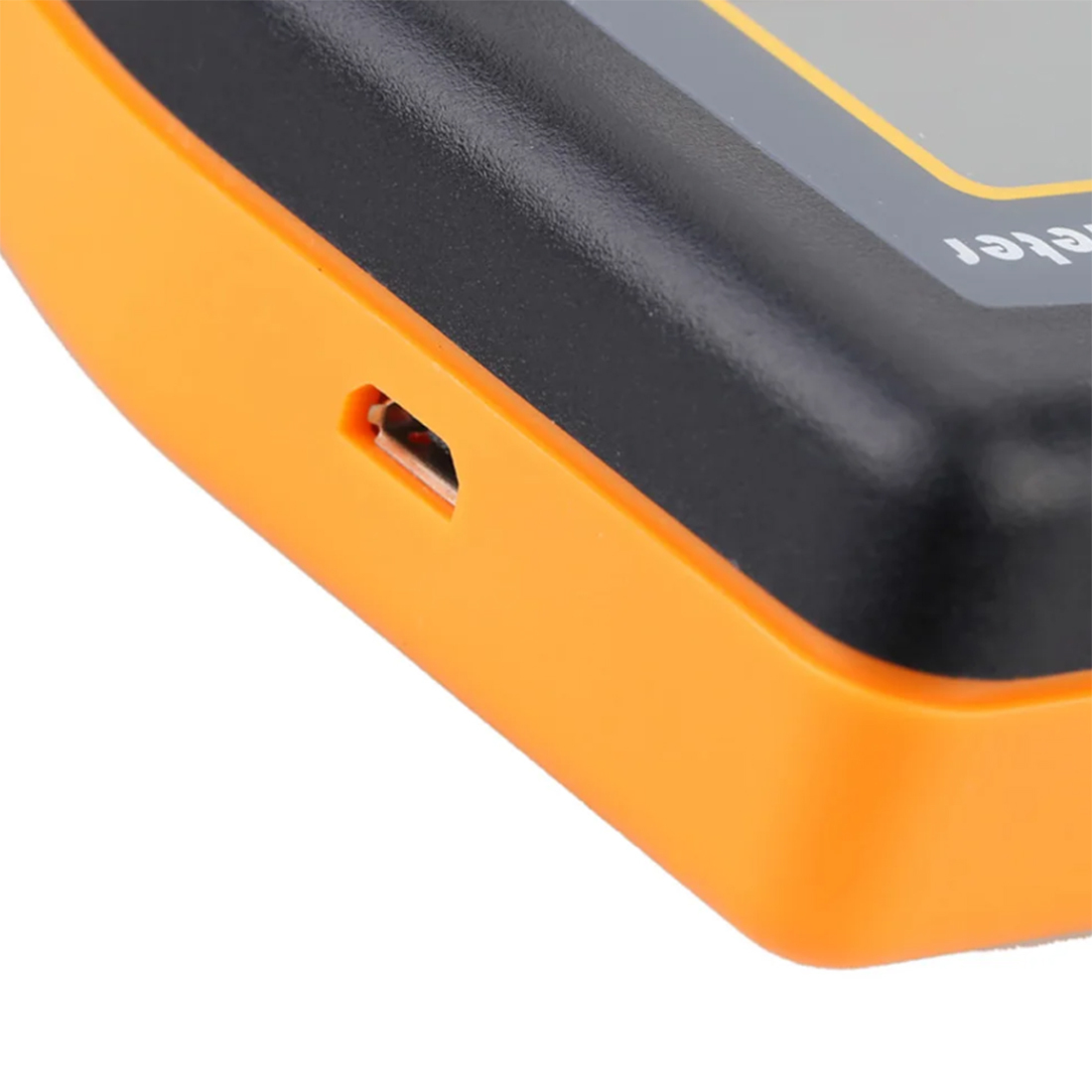

External Power: 5V micro USB
Operating Current: 0.02A
Battery: 2 x AA 1.5V Battery (not included)
Battery Life time: >80 Hours
Item Size: Approx 145 x 80 x 30mm
Item Weight: Approx 139.6g

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
