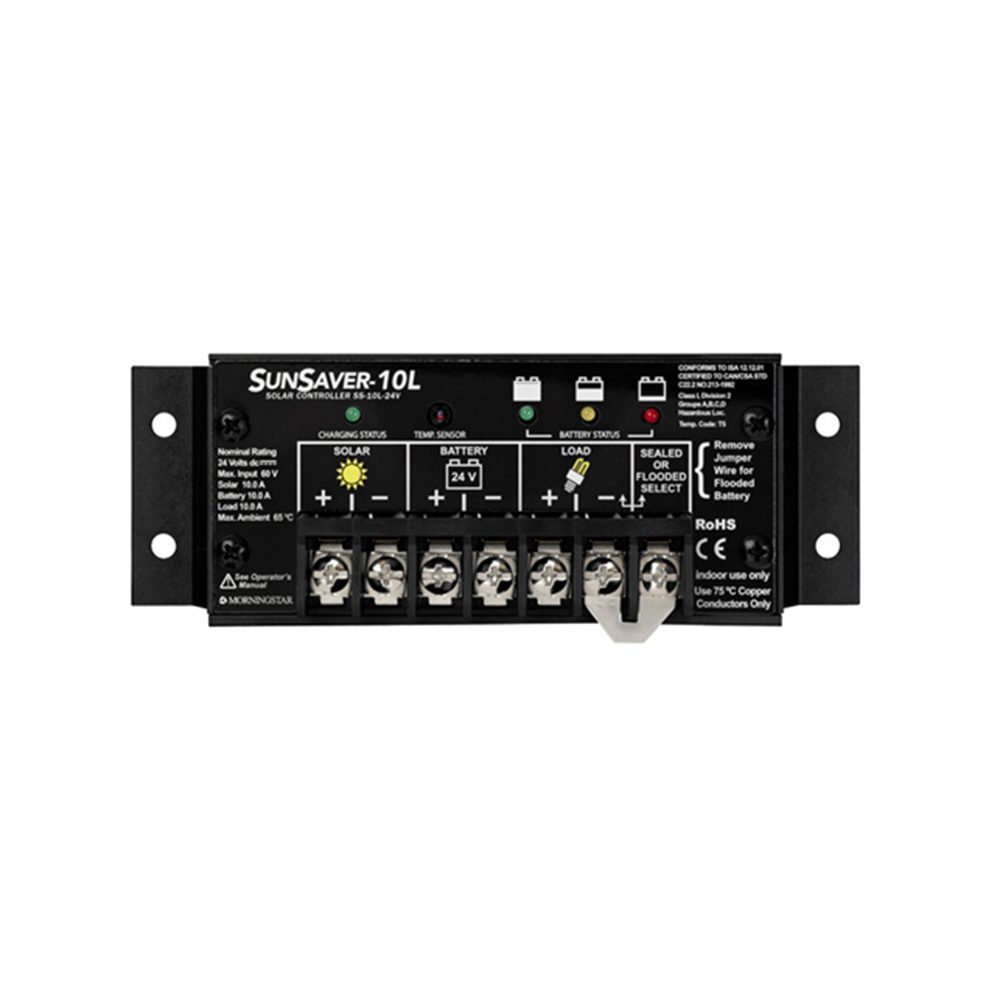

Morningstar SunSaver 4 Stage 24v 10a PMW Solar Controller with LVD

SunSaver is the third generation in Morningstar's hugely successful range of PMW Solar controllers'. Since its inception in 1996, over 1 million SunSaver controllers have been installed in over 73 counties with a failure rate of less than 0.1%! Morningstar's SunSaver is the companies benchmark PWM solar controller and an excellent reliable set and forget solution for small to medium DIY solar installations.

Morningstar SunSaver Solar LVD controllers have built in Low Voltage Disconnect (LVD) circuitry. Eliminating the possibility of damage to batteries due to over discharge. Featuring 4 stage charging (bulk, absorption, float and equalize), for maximum performance and pro long life of batteries. Morningstar's SunSaver range of solar controllers are an excellent choice for RV, motorhomes and DIY solar installations.

Specifications:

Solar Current: 10a
Load Current: 10a
System Voltage: 24v
Low Voltage Disconnect: Yes
Regulation Voltage Sealed Battery: 28.2v
Regulation Voltage Flooded Battery: 28.2v
Load Disconnect: 23v
LVD Reconnect: 25.2v
Max Solar Voltage:60v
Dimensions: 152 x 55 x 34
Weight: 0.23g

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
