Digital multimeters are more common and are the industry standard for trade and hobby. However, there is something nostalgic and somewhat reassuring to read values using traditional moving coil style analge meters. Not to mention they just look much better!

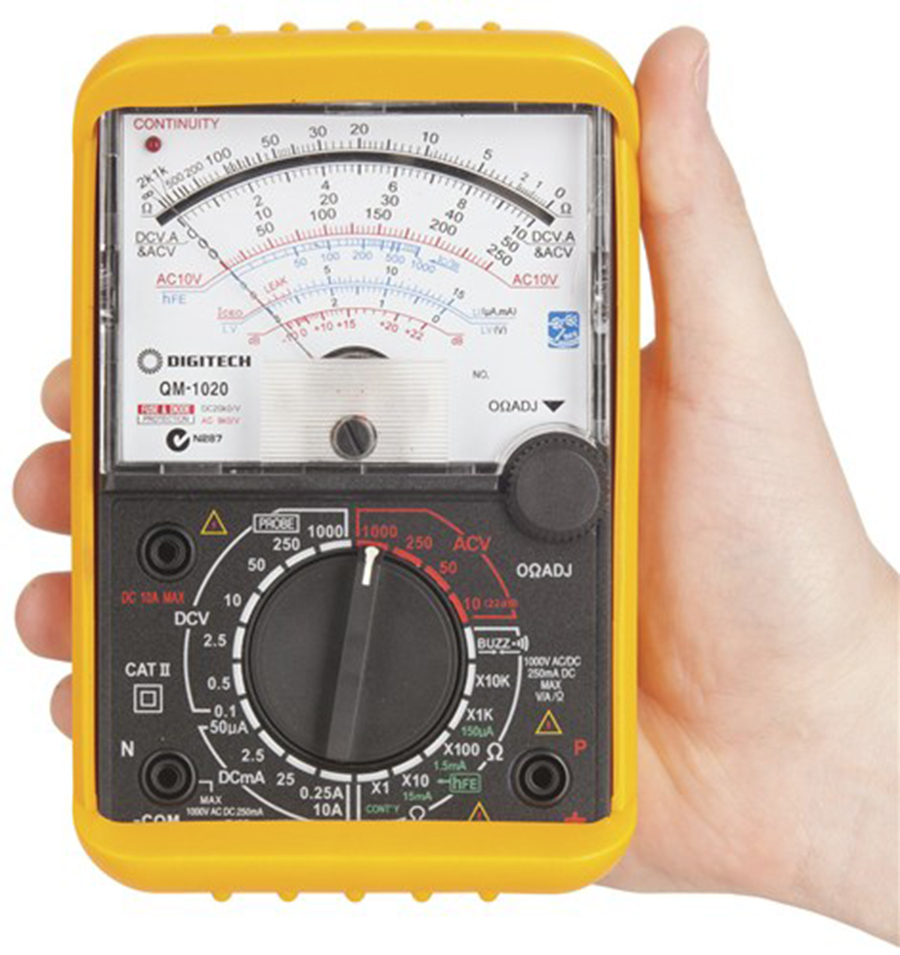

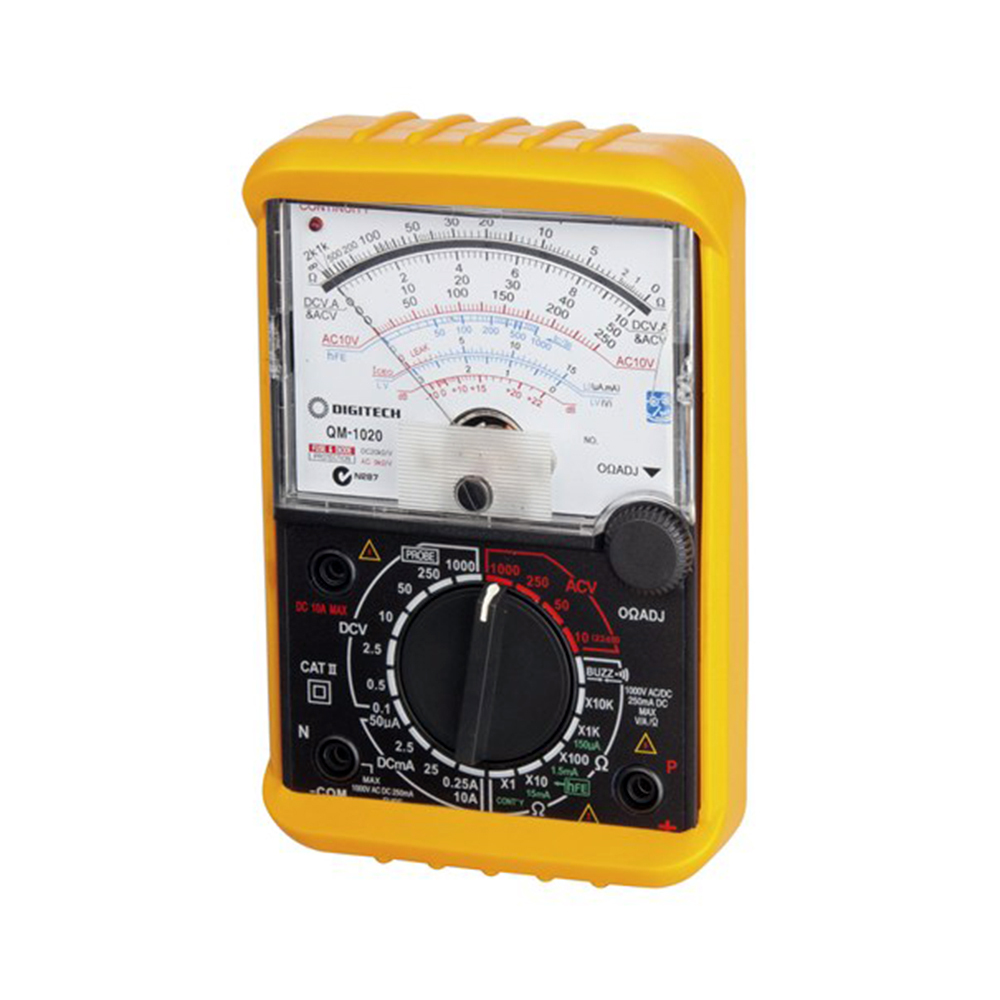

This compact multimeter has all standard functions that you would require in basic hobby electronics. Including; voltage, current, resistance and continuity.
Specifications:
DC Current Ranges: 50uA, 2mA, 25mA, 250mA
DC Current Accuracy: 3%
Resistance Ranges: 2 Kilo Ohm, 20 Kilo Ohm , 200 Kilo Ohm , 2 Megohm, 20 Ohm
Resistance Accuracy: 3%
AC Voltage Ranges: 10V, 50V, 250V, 1000V
AC Voltage Accuracy: 4%
DC Voltage Ranges: 100mV, 500mV, 2V, 10V, 50V, 250V, 1000V
DC Voltage Accuracy: 3%
Display Type: LCD
Continuity: Yes
Security Class: Cat II 1000v
Input Impedance: 10M
Length: 150mm
Width: 100mm
Depth: 35mm
(AMM01)
| SKU | AMM01 |
| Barcode # | 9319236071106 |
