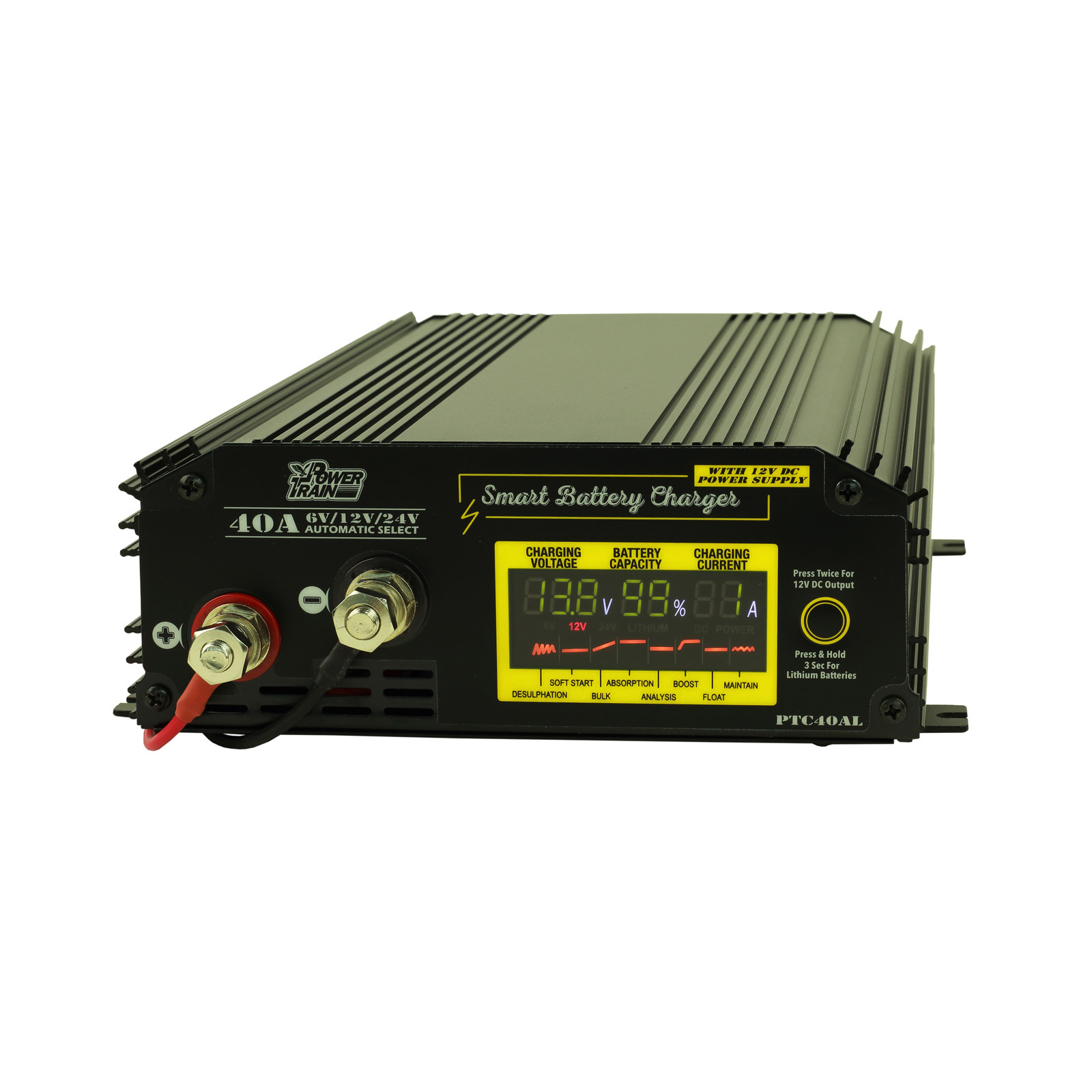

Power Train 6v-12v-24v 40a 7 Stage Battery Charger and PSU (Inc Lithium)

Power Train new range of battery chargers are the brands new incarnation of their very popular fully automatic 20a, 30a and 40a battery chargers. Now with added Lithium (12v only) battery compatibility.

When in lead acid mode, the charger automatically detects the voltage of the battery and provides correct charging voltage. Utilising a sophisticated 8 stage charging algorithm to ensure the battery is not only fully charged but reaching this point the most efficient method possible.

This charger is compatible with Gel, Flooded Lead Acid, AGM, Calcium and LiFePO4 (12v only).

One the great advantage of this range of Power Train battery chargers is the units integrated PSU mode. By pushing the mode button twice, the unit switches to power supply model. Providing 13.5v constant voltage to power 12v appliances and much more.

The common misconception is that any 12v battery charger can be used as a power supply. This is incorrect. As traditional battery charger output voltage varies, and changes based on the connected batteries voltage. This means they are not suitable for powering 12v portable appliances.

This range of battery chargers is also available with 20a and 30a max power.

Features:

Fully automatic voltage selection and 8 stage charging system.
Suits 6, 12 and 24V Gel, Lead Acid, AGM, Calcium.
Suits 12v Lithium (via MODE button) types of automotive batteries.
Large easy to read LED display with charging stage status, volts, curren and battery capacity.
Zero Volt battery charging (disconnected battery), enabling recovery and charging of a completely deep discharged battery.
Inbuilt protection systems for safe operation.
13.5V DC power supply mode.
Faulty battery indicator.
Short circuit, reverse polarity, overload, over-voltage and over temperature protection.
Includes eyelet to alligator 1.2m lead

Specifications:

Input Voltage: 240v AC
Output Voltage / Stages: Automatic
Battery Voltage: Automatic 6/12/24v
Output Current: 40a (at 12v)
Charge Stages: 8 Stages
DC Power Supply Mode: 13.5v 40a
Recommended Battery Capacity: 80-400a
Dimensions: TBC
Weight: TBC
Battery Type: AGM, GEL, Flooded, Clacium, LifePO4 (12v Only)

Charging Stages:

Analysis / Desulphation
Soft Start
Bulk Charge
Absorption
Analysis
Boost / Equalisation
Float Charge
Maintenance Charge
