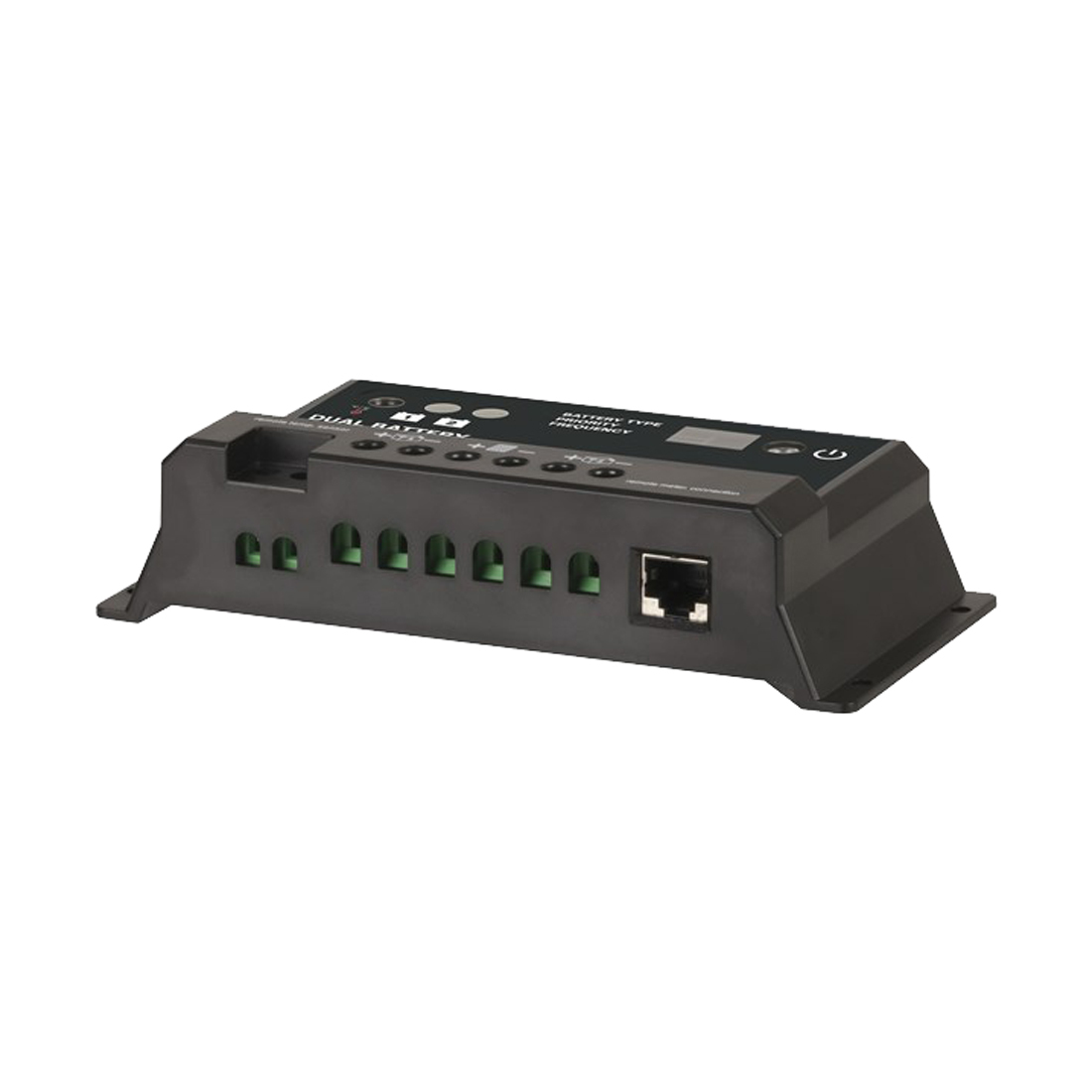

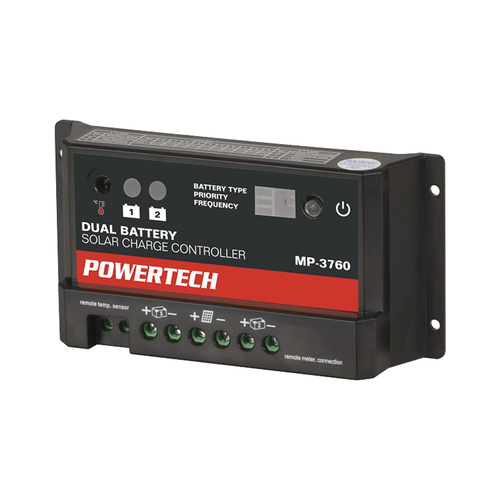

Powertech 12-24v 10a Dual Battery PWM Solar Charger Controller

Although Mr Positive currently caries a large variety of Solar Charge Controllers with different ratings and specifications, they are all designed to recharge one battery (or battery bank). This compact and economical unit charges both your house battery and the long forgotten about starting battery. Or two house battery banks.

Ideal solution for campervans and 4WD’s.

Features:

Will charge 2 completely separate battery banks at the same time
Works with 12V or 24V systems
Highly efficient PWM (Pulse-width modulation) charging system
Provides up to 10A charging current (Limited by size of your solar panels)
Electronic protection from over charging short circuit or accidental reverse battery connection

Specifications:

Max solar input voltage: 30V (12V system), 55V (24V system)
Battery input voltage range: 8-15V (12V system), 8-30V (24V system)
Max output current (both channels): 10A
Overnight self-consumption: 4mA
Dimensions: 153mm (W) x 76mm (H) x 37mm (D)
Weight: 240g
