Power Train 6v and 12v 6a Lead Acid and Lithium 7 Stage Battery Charger

The PTC12V6A7S-6/12 charger is a cutting-edge, fully automatic, 7-stage battery charger, expertly designed to charge most Gel, Lead Acid, Calcium, and 12V Lithium batteries. Its sophisticated switchmode technology and computer-controlled system ensure efficient and precise charging, making it ideal for both automotive and marine applications.

This versatile and reliable charger is your go-to solution for maintaining and charging your batteries, ensuring they perform at their best.

Features:

Heavy-Duty Design: Built to withstand demanding environments, with IP65 water-resistance and multiple safety approvals including CE, EMC, SAA, and C-TICK.
Automatic 7-Stage Charging: Ensures optimal charging performance with minimal user intervention, including an automatic selection between 6V and 12V batteries, indicated by an LED display.
Lithium Battery Mode: Easily switch to 12V Lithium battery charging by holding the button for 3 seconds.
Battery Compatibility: Supports GEL, Calcium, Deep Cycle, and conventional lead-acid batteries with automatic chemistry selection.
Safety and Protection: Features include internal temperature monitoring, sulfated battery repair, zero-volt start-up capability, and comprehensive protections against overcharging, reverse polarity, short circuits, and overheating.

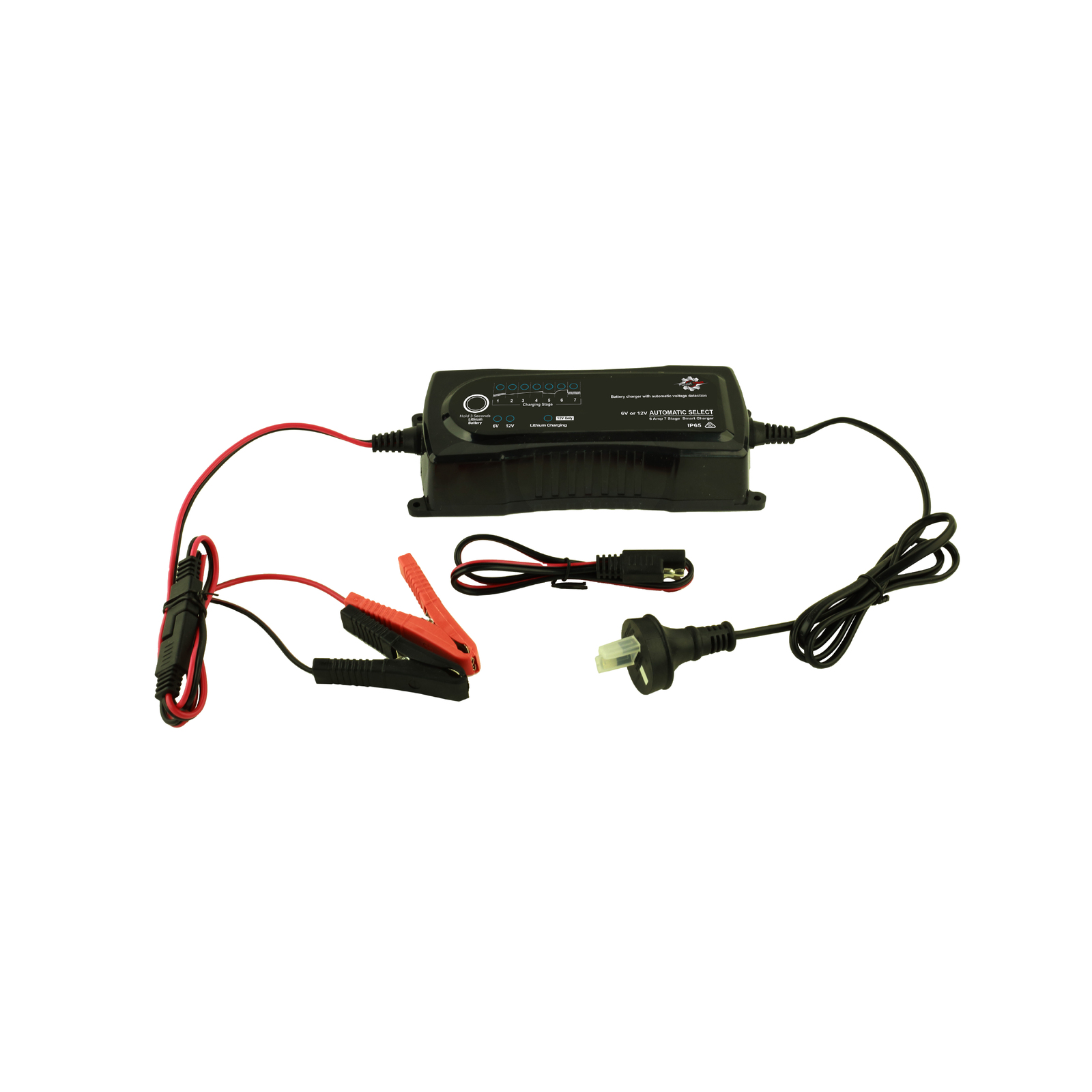

Convenient Accessories: Comes with alligator clamps and ring terminals for easy and secure connections.

Specifications:

Input Voltage: 230-240v AC, 50Hz/60Hz
Charging Type: 7-Stage
Output Voltage: 6v or 12v (12v only in Lithium mode)
Output Current: 6a
Battery Charging Capacity: Up to 600ccA or 80ah

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
