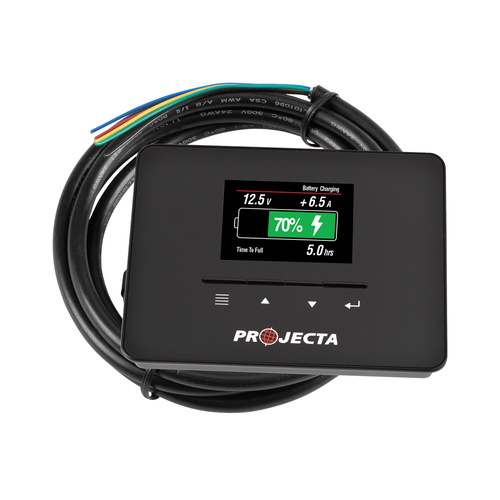

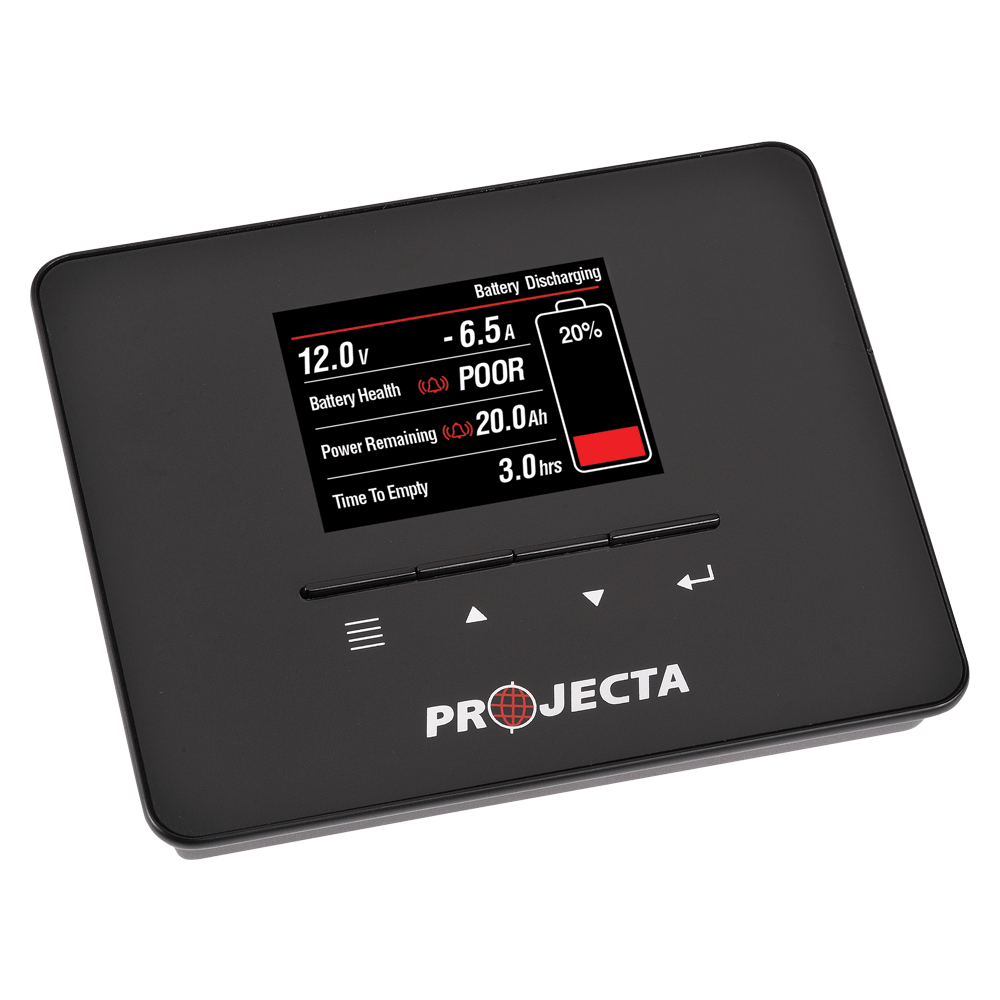

Projecta 12v Smart Battery Monitor

Projecta's PM320 is a sophisticated full colour battery monitor. Providing actual battery capacity and providing real time data of the batteries overall health. The PM320 will show incoming current such as when the battery is being charged with a charger or solar panel as well as current consumption. This is achieved with he included shunt resistor.

Various user set low voltage and power consumption alarms can also be set.

Easy to install panel that is an Ideal solution for caravan interiors or off grid battery installations.

Further details, installation instructions and user parameters are available on the products instruction manual downloaded by clicking the PDF icon.

Features:

Displays time remaining to full or empty
Displays power remaining in ahr
Displays charging and discharging status
Displays battery state of health (idea, good, fair, poor)
Easy to use navigation for total user control

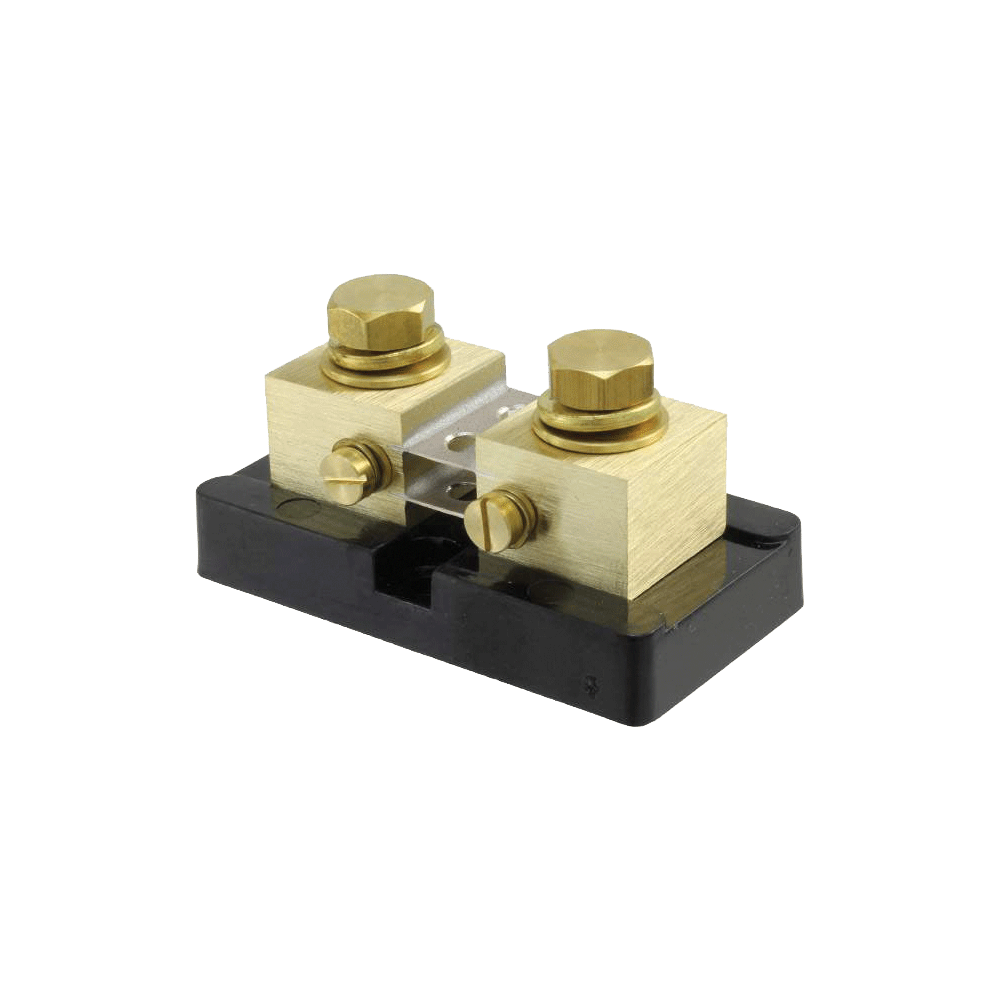

Installation kit includes terminals and 500a shunt resistor
Easy and secure surface mount installation via supplied 'click-fit' mounting bracket

Specifications:

Current Draw: 12v 1.5mA DC
Input Voltage: 6-17v DC
Max Current: 320a
Supported Battery Capacity: 5-320ah
Current Display Resolution: 0.1a
Voltage Display resolution: 0.1v
Battery Capacity Resolution: 0.1ah
Supported Battery Types: Wet / AGM / GEL / Calcium
Cable Length: 1.5m

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
