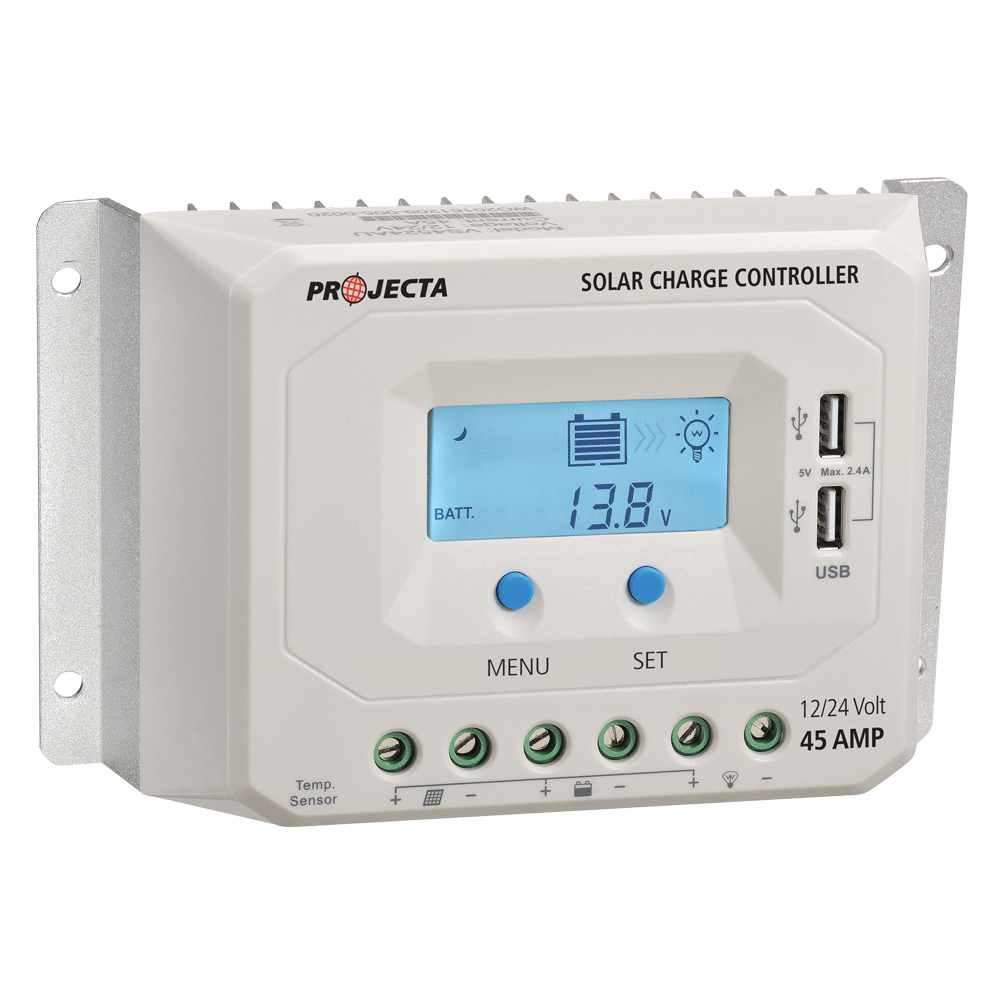

Projecta Automatic 12v-24v 45a 4 Stage Solar Charge Controller with LVD

Delivering comprehesnive 4 stage charging anc ompataible with all modern Lead Acod battery types. The new range of Projecta solar charge controllers offer reliabilioty, ease of use and at a very competitive price.

The SC245 is suitable for larger installations and solar panbels up to 45amps.

Features:

Digital L.E.D screen - Displays battery voltage, charging current, charging capacity, fault codes and more
L.E.D charge indicator - Displays quick reference to charge status and battery condition
Multi-chemistry - Set the charging profile to suit battery chemistry type including; Wet, Calcium, AGM or Gel.
Sealed electronics - Conformal coated circuit board and plated terminals protect controller from the elements
Temperature sensor - Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

Specifications:

Input: 12v or 24v
Max Input: 50v DC 45a
Max Charge: 45a
Max Panel Size: 540w at 12v
Battery 12v or 24v
Charge Stages: 4 Stages
Bulk Voltage: 12v / 24v
Gel Absorption Voltage: 14.2v / 28.4v
AGM Absorption Voltage: 14.4v / 28.8v
Wet Absorption Voltage: 14.7v / 29.4v
Calcium Absorption Voltage: 14.9v / 29.8v
Equalization Voltage: 15.5v
Float Voltage: 13.6v / 27.6v
Approval: EMC
Ip Rating: IP22

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
