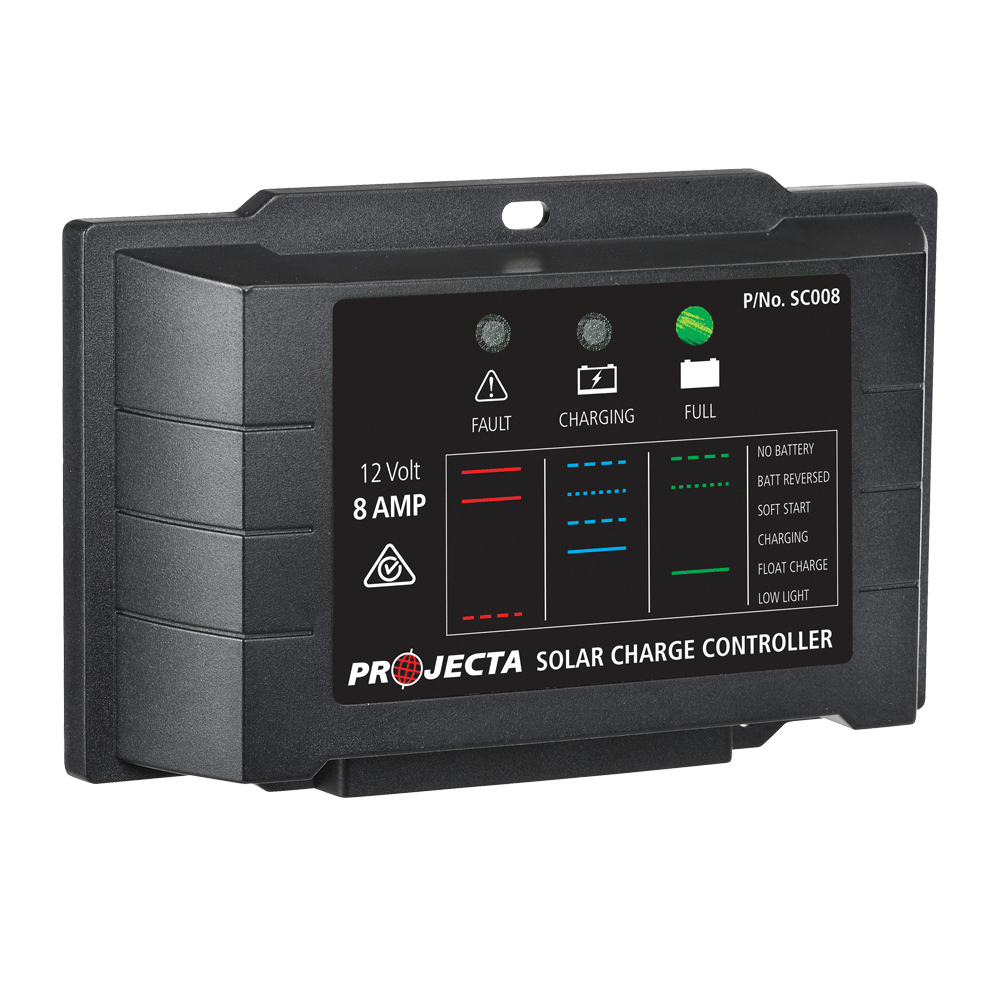

Projecta Automatic 12v 8a 4 Stage Solar Charge Controller

Delivering comprehesnive 4 stage charging anc ompataible with all modern Lead Acod battery types. The new range of Projecta solar charge controllers offer reliabilioty, ease of use and at a very competitive price.

The SC108 is suitaible smaller installations and solar panbels up to 8amps.

Features:

L.E.D charge Indicator - Displays quick reference to charge status of the battery
Sealed electronics - Potted circuit board and plated terminals protect controller from the elements
Ease of connection - Plated screw termination and quick reference label
Multi-chemistry - Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel

Specifications:

Input: 12v
Max Input: 25v DC 8a
Max Charge: 8a
Max Panel Size: 96w
Battery 12v
Charge Stages: 4 Stages
Bulk Voltage: 12v
Gel Absorption Voltage: 14.1v
AGM Absorption Voltage: 14.4v
Wet Absorption Voltage: 14.7v
Calcium Absorption Voltage: 14.9v
Equalization Voltage: 15.5v
Float Voltage: 13.6v
Approval: EMC
Ip Rating: IP65

Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
