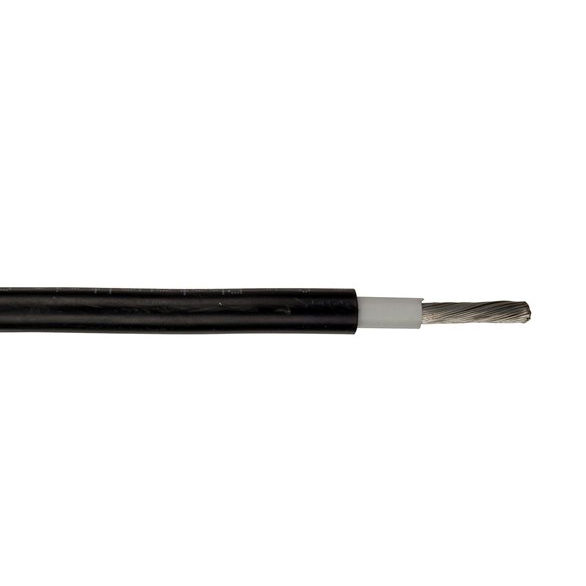

PV Solar Cable 70a XLPE 6mm (100m)

Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.

Features:

Insulation material: Double Layer XLPE
TUV certification: 2 PfG 1169
Commonly referred to as 6mm solar cable

Specifications:

Colour: Black
DC Current Rating: 70a
DC Voltage: 1000v
Operating Temperature: -40-90 Degrees
Roll Length: 100m
Cross Sectional Area: 5.7mm2
Outer Diameter: 7.1mm
Conductor Overall Diameter: 3.2mm
Individual Conductor Strand Diameter: 0.3mm
Number of Conductor Strands: 81pc
Resistance Per Linear Metre : 3.52 Megaohm
Core Material: Tin Plated Copper

Please Note:

Mr Positive does not accept returns / change of mind refunds for any of our electrical wire and wire rolls. Please ensure that the specifications (gauge, power rating, number of cores, etc.) we list for this product are suitable for your application before placing an order.
