Seat Pole Mount 36v 14.5ah e-Bike Battery Module

Mr Positives e-bike battery modules are manufactured using high quality Sanyo / Panasonic cells and are available in various form factors and voltages to suit most custom e-bike electrical systems.

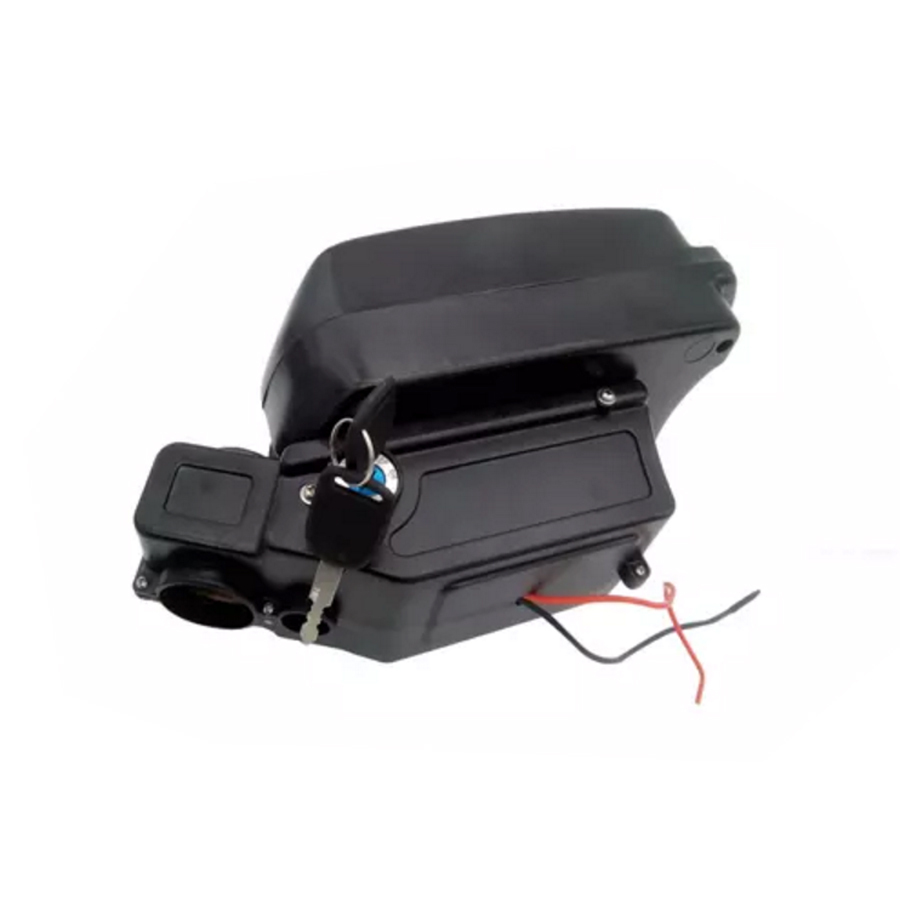

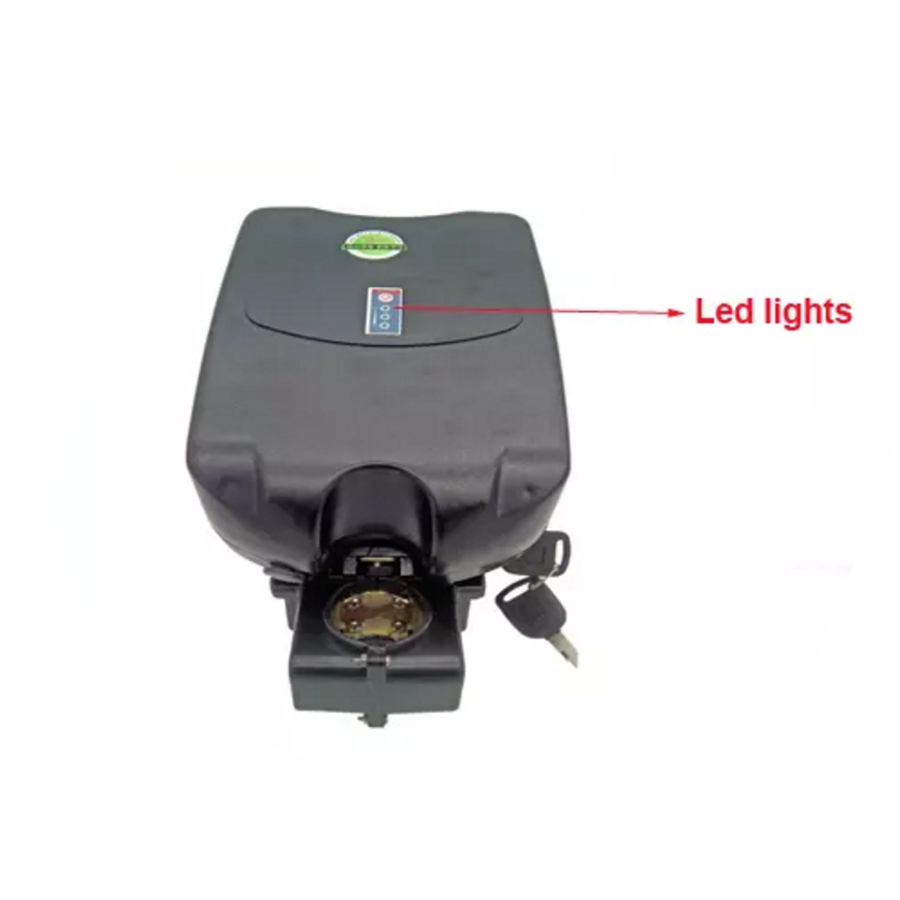

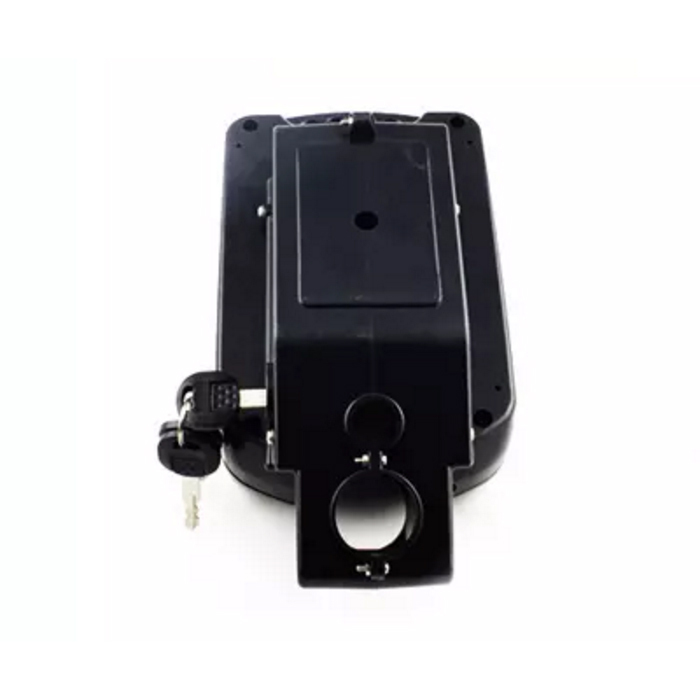

Our Pole mount e-bike battery modules are housed in a hard plastic case with an integrated pole mount that can be clipped to the bikes seat pole. The unit features locking key and LED battery status indicator.

This custom pole mount e-bike battery module is a 36v unit featuring five parallel banks of ten Panasonic 2900mah Li-Ion cells wired in series.

Specifications:

Nominal Voltage: 36v
Nominal Capacity: 14.5ahr
Working Current: 10-15a
Charging Voltage: 42v
Discharge Cut Off: 30v
Configuration: 5P10S
Suitable Charger: 42v 2a
Chemistry: Li-Ion
Pole Mount Diameter: 35m (Approx)
DC Charge Input Polarity: Centre Positive

Compatible Battery Charger:

Mr Positive Part Number: EBIKCH1

Please Note:

It is critical that these be-bike battery modules are charged with correct Li-Ion charger as specified in specification. Mr Positive carries compatible charger for these batteries and it can be found under the We Also Recommend section.
